Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal and positive battery terminal.
    CAUTION: Remove the negative battery terminal first.
  2. Remove the battery cover.
  3. Remove the battery clamp bolt and battery clamp.
  4. Remove the battery.

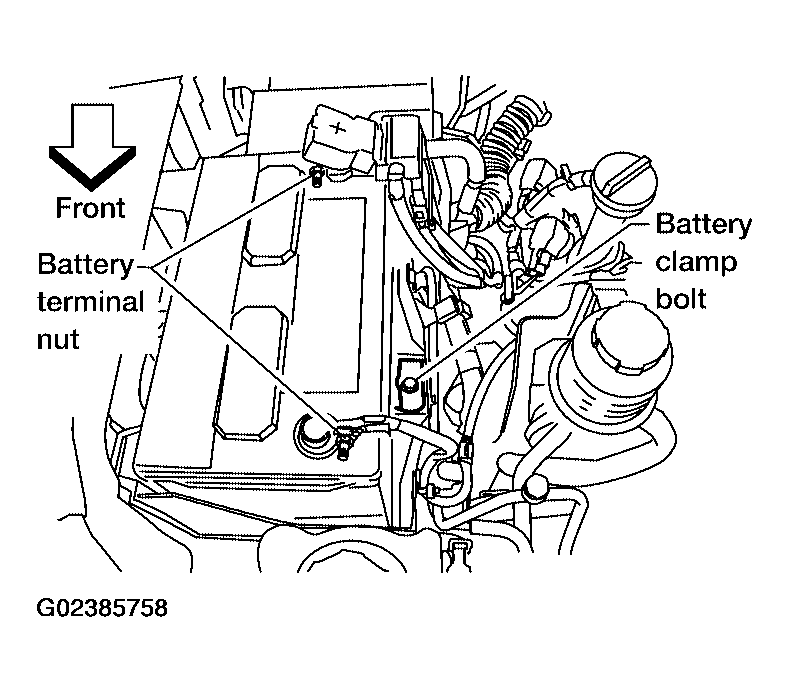

    Fig 1: Identifying Battery Clamp Bolt
    G02385758Courtesy of NISSAN MOTOR CO., U.S.A.
