Rear Blower Motor Relay

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check circuit continuity between terminals by supplying 12 volts and ground to coil side terminals of relays.

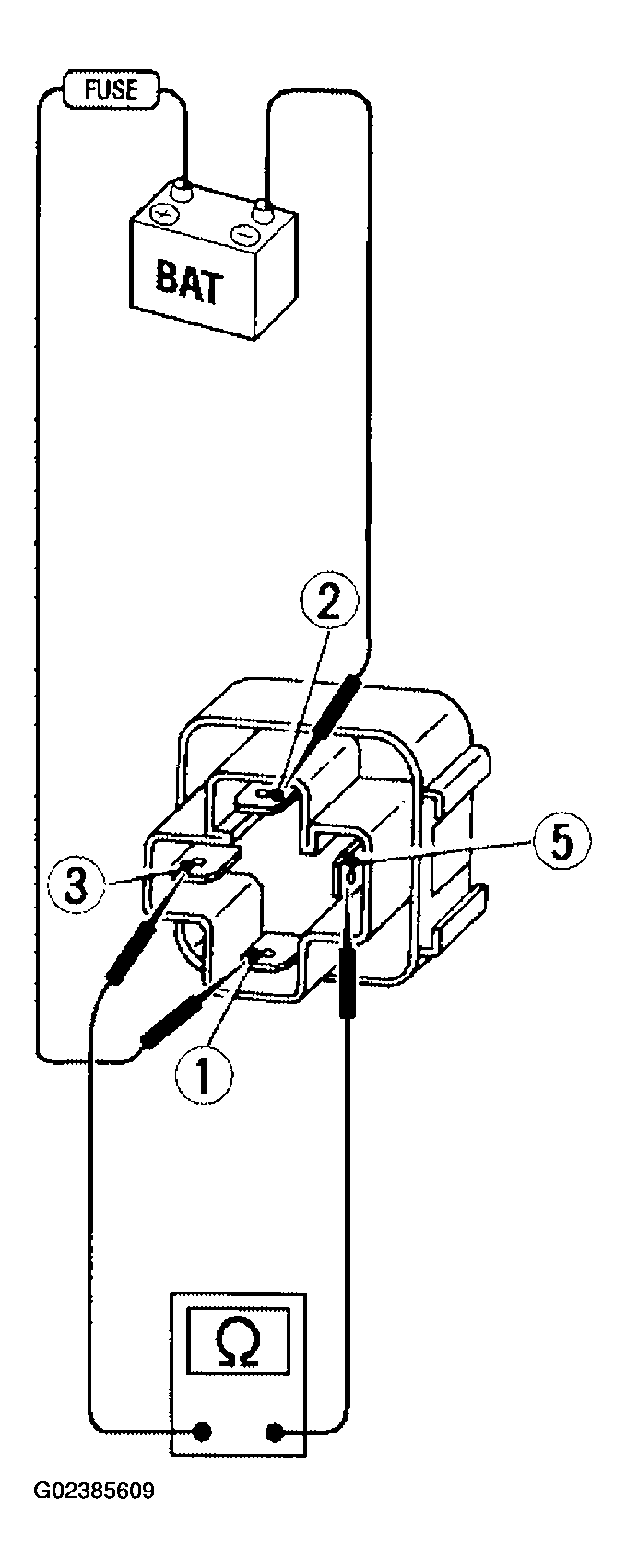

Fig 1: Supplying 12 Volts And Ground To Coil Side Terminals Of Relays
G02385609Courtesy of NISSAN MOTOR CO., U.S.A.
