Checking Blower

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Turn the rear blower control dial to switch position "1". Blower should operate on low speed.

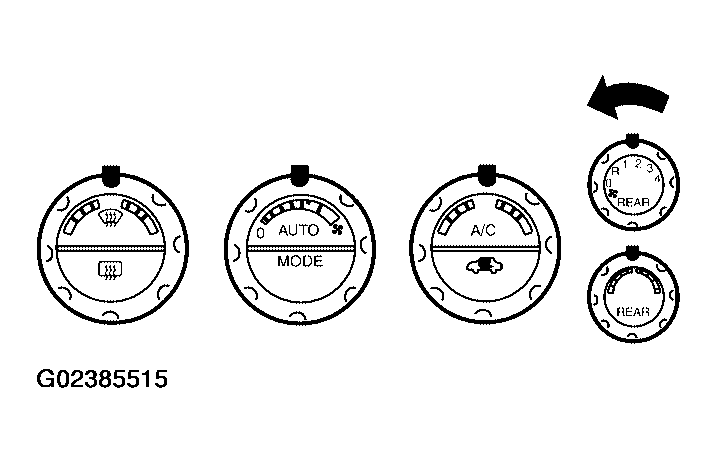

Fig 1: Turning Rear Blower Control Dial

Courtesy of NISSAN MOTOR CO., U.S.A.

Turn the rear blower control dial counterclockwise to switch position "2", "3", and "4" until all speeds are checked.
Leave blower on MAX speed.

If NG, go to trouble diagnosis procedure for "REAR BLOWER MOTOR CIRCUIT ".

If OK, continue the check.
