Checking Blower
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

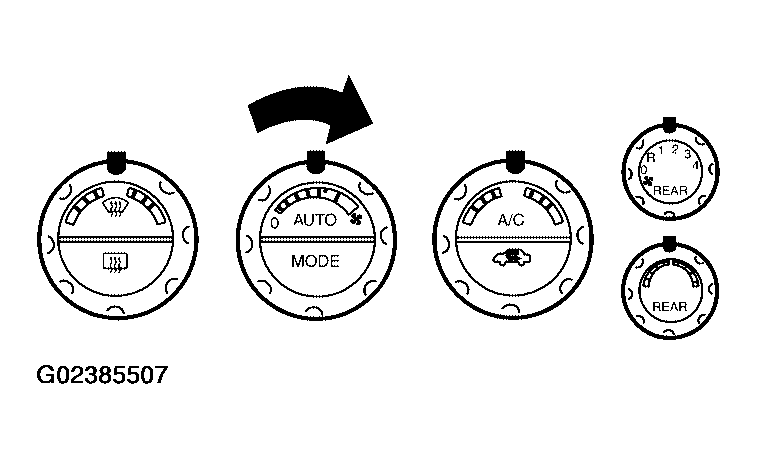

- Press the AUTO switch. Blower should operate on low speed.
The blower symbol should have one blade lit (on display).
- Turn the front blower control dial again, and continue checking blower speed and blower symbol until all speeds are checked.
- Leave blower on MAX speed.
If NG, go to trouble diagnosis procedure for "DIAGNOSTIC PROCEDURE FOR BLOWER MOTOR ".
If OK, continue with next check.
