Section 1228 (Automatic Air Conditioner)
>>
Trouble Diagnosis
>>
Memory Function
>>
Inspection Flow
Inspection Flow
WARNING:
This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

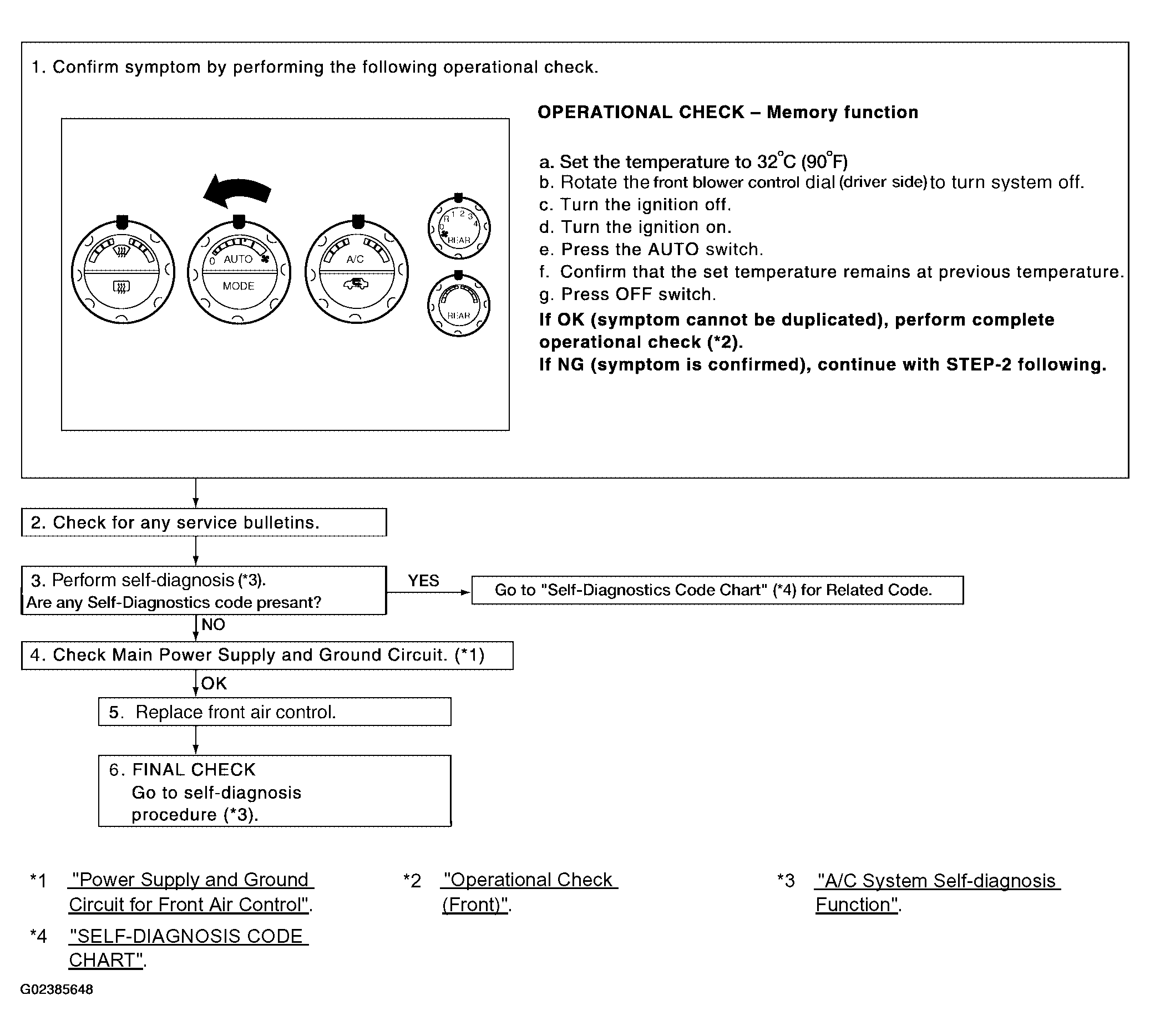

Fig 1: Memory Function - Inspection Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
