Component Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Refrigerant Pressure Sensor

The refrigerant pressure sensor is attached to the condenser.

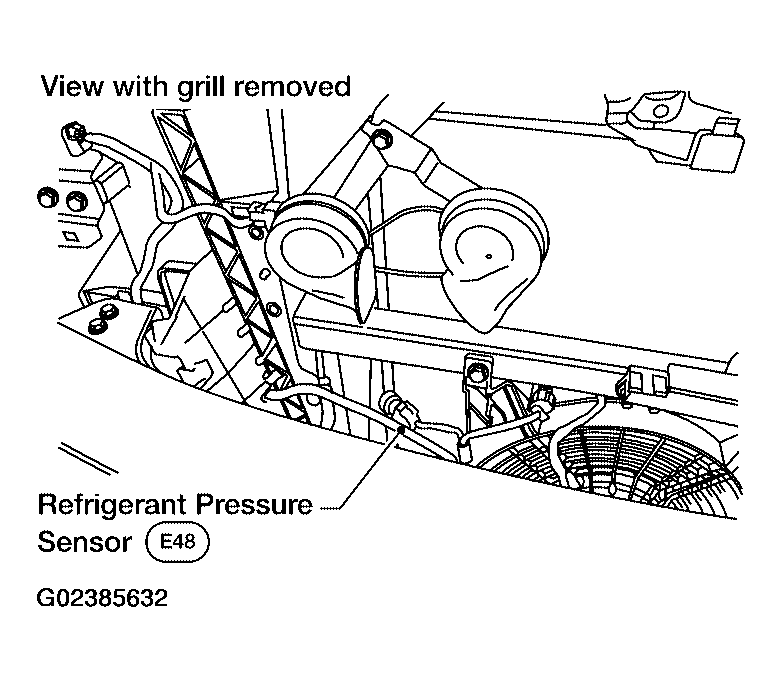

Fig 1: Identifying Refrigerant Pressure Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
