Low-pressure Side Sometimes Becomes Negative

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

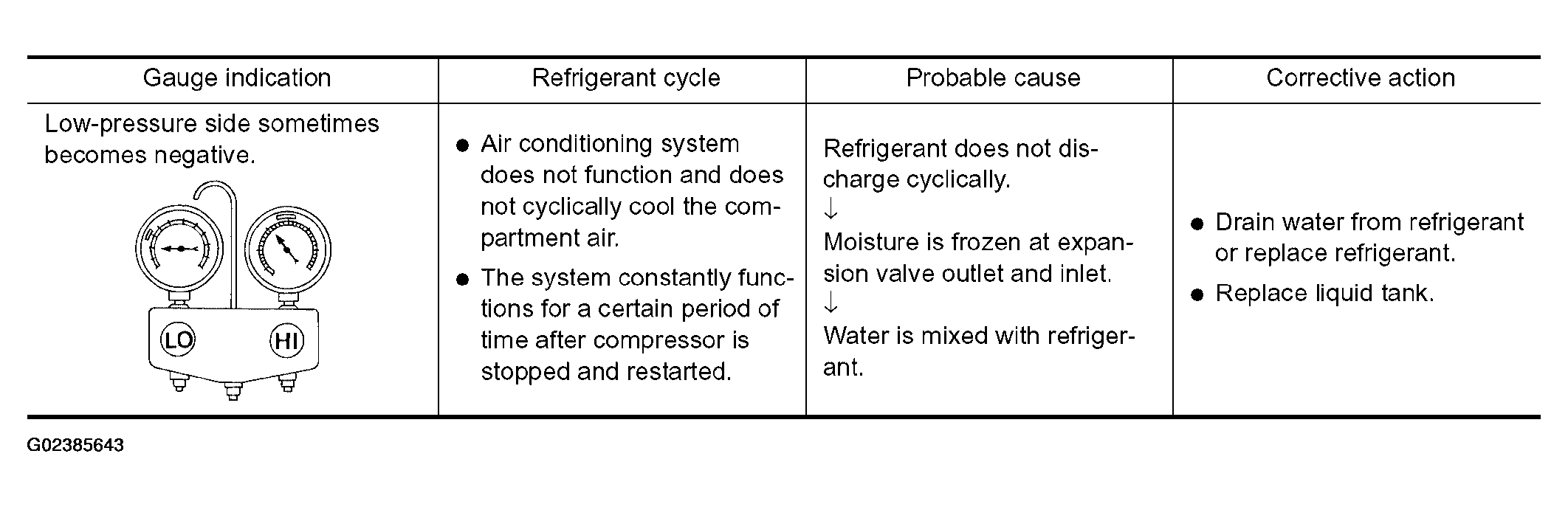

Fig 1: Trouble Diagnoses Chart - Low-Pressure Side Sometimes Becomes Negative
G02385643Courtesy of NISSAN MOTOR CO., U.S.A.
