Both High- and Low-pressure Sides are Too High

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

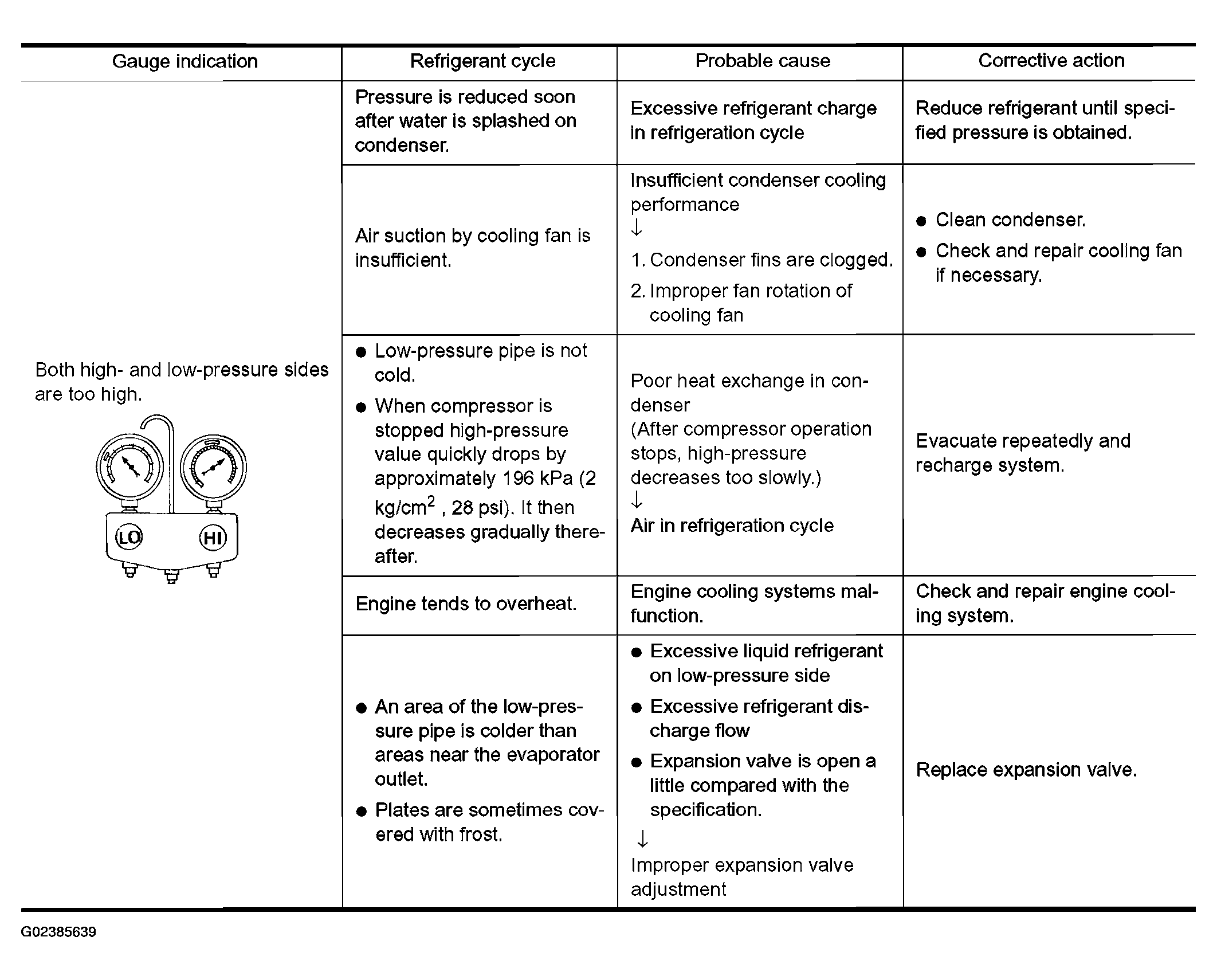

Fig 1: Trouble Diagnoses Chart - Both High- And Low-Pressure Sides Are Too High
G02385639Courtesy of NISSAN MOTOR CO., U.S.A.
