Component Description

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

In-vehicle Sensor

The in-vehicle sensor is located on instrument lower driver panel. It converts variations in temperature of passenger compartment air (drawn in through the integrated fan) into a resistance value. It is then input into the front air control.

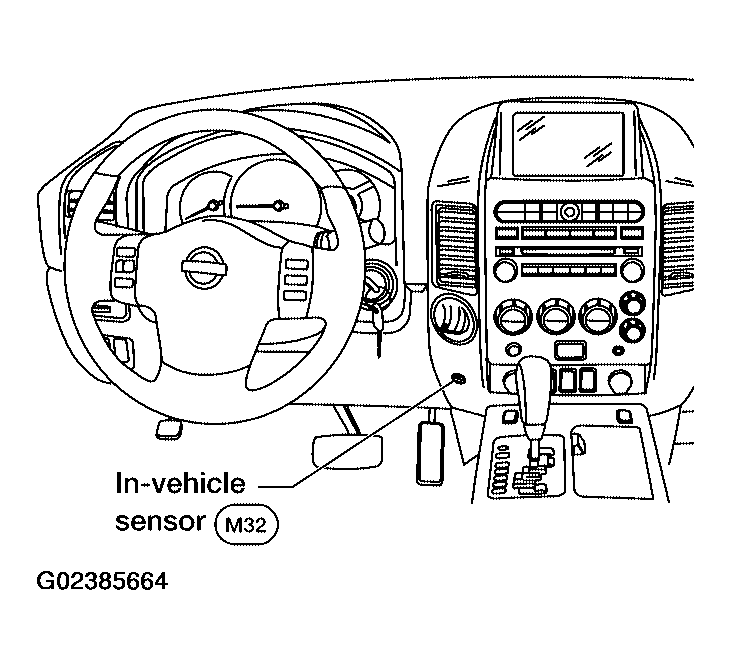

Fig 1: Locating In-Vehicle Sensor (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

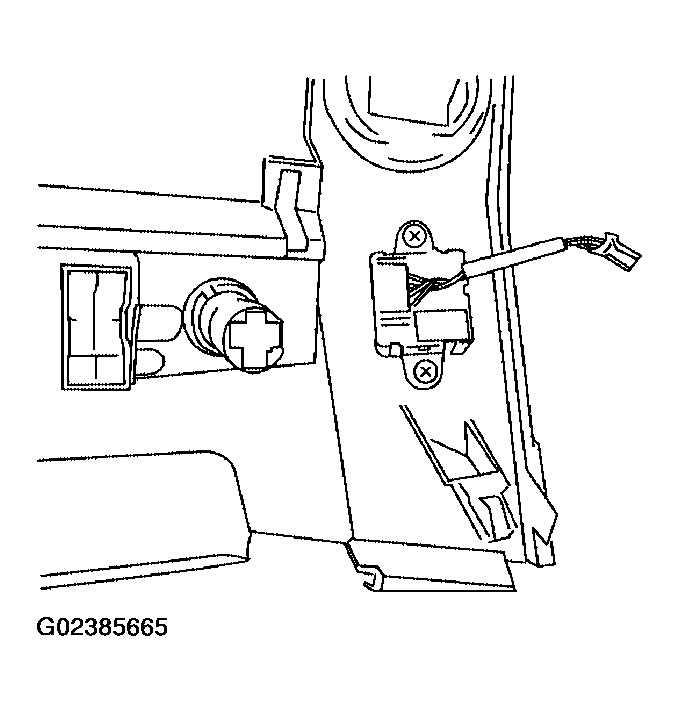

Fig 2: Locating In-Vehicle Sensor (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
