Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

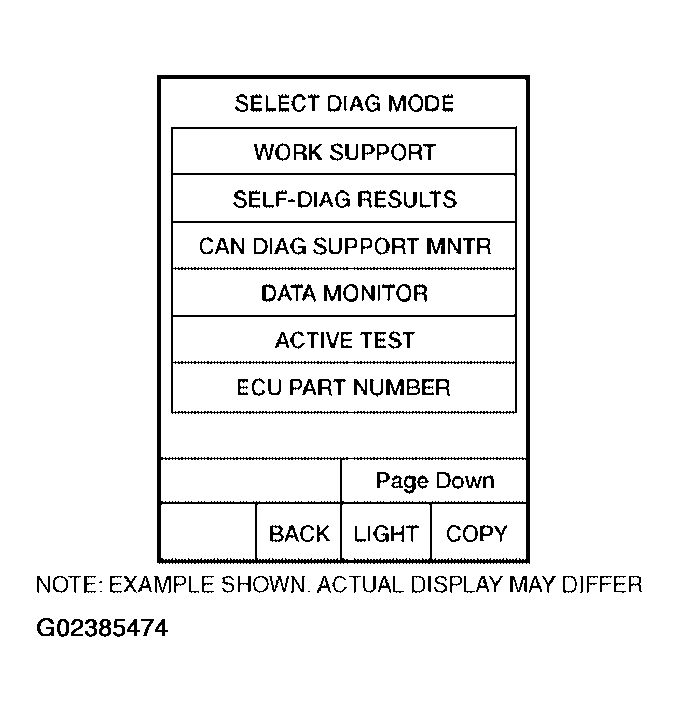

    Fig 1: Identifying "DATA MONITOR" On Select Diag Mode Screen
    G02385474Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch either "MAIN SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.
    DATA MONITOR - OPERATION PROCEDURE

    All signals Monitors all the items.
    Selection from menu Selects and monitors the individual item selected.
  3. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
  4. Touch "START".
  5. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".
