Display Item List

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

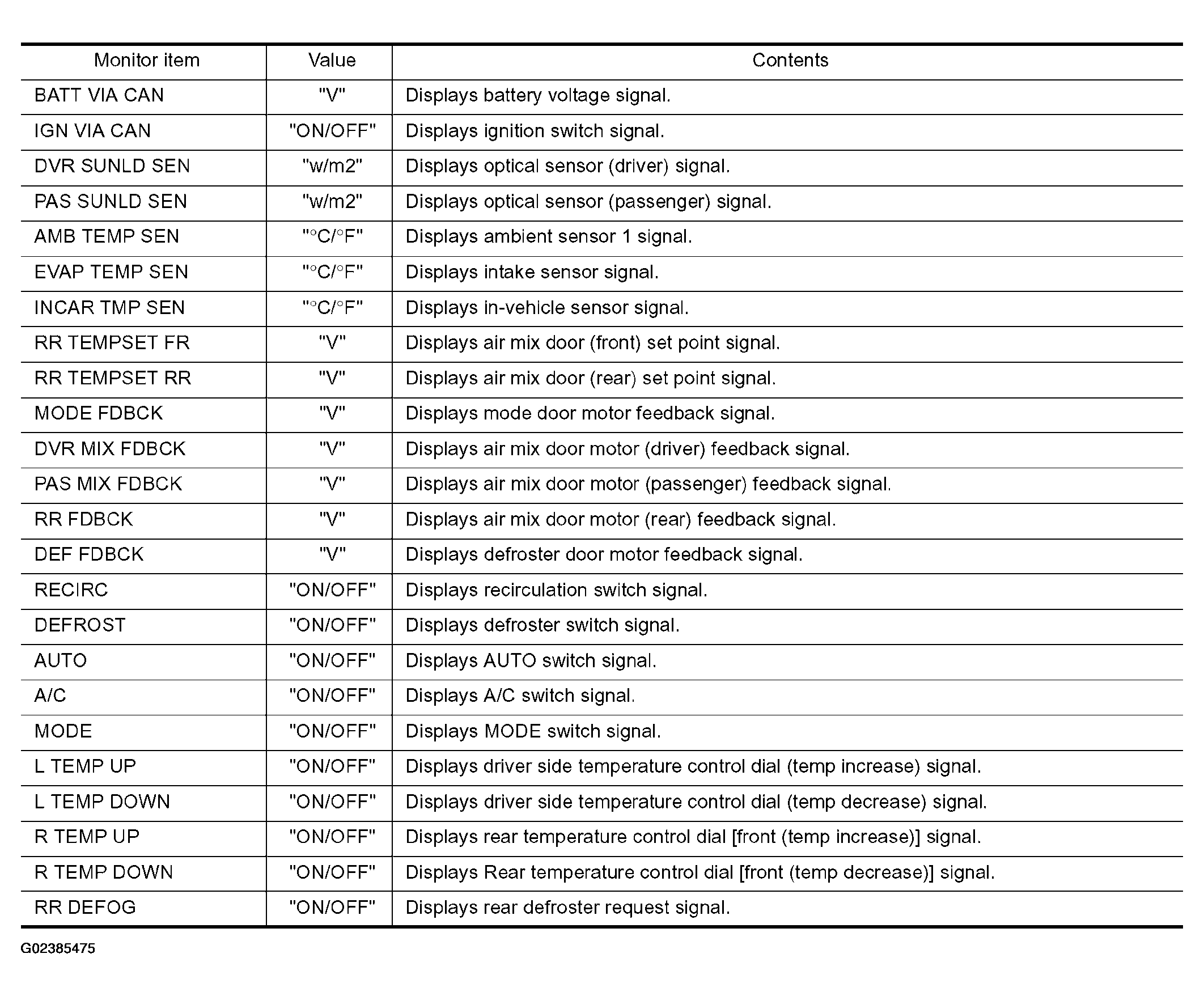

Fig 1: Data Monitor - Display Item List

Courtesy of NISSAN MOTOR CO., U.S.A.

DATA MONITOR - DISPLAY ITEM LIST

Monitor item	Value	Contents
FANUP	"ON/OFF"	Displays front blower motor (blower speed increase) signal.
FANDOWN	"ON/OFF"	Displays front blower motor (blower speed decrease) signal.
	"[PNL]"
	"[MIX]"
MODE SELECT	"[FLR]"	Displays mode door motor position.
	"[DEFR]"
	"[MAX]"
	"[DENT]"
*: DENT is displayed when MODE switch is between selections.
