Ambient Sensor
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

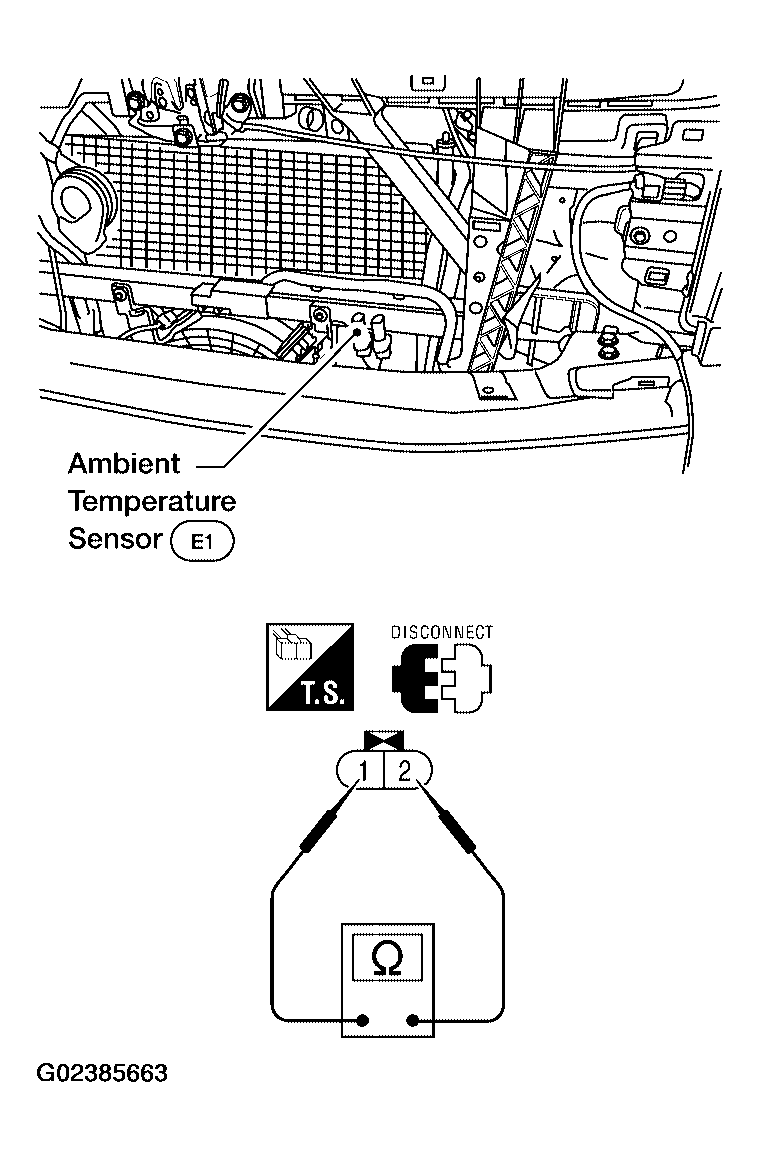

After disconnecting ambient sensor connector E1, measure resistance between terminals 1 and 2 at sensor component side, using the table below.
COMPONENT INSPECTION - AMBIENT SENSOR
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 12.73 |
| -10 (14) | 9.92 |
| -5 (23) | 7.80 |
| 0 (32) | 6.19 |
| 5 (41) | 4.95 |
| 10 (50) | 3.99 |
| 15 (59) | 3.24 |
| 20 (68) | 2.65 |
| 25 (77) | 2.19 |
| 30 (86) | 1.81 |
| 35 (95) | 1.51 |
| 40 (104) | 1.27 |
| 45 (113) | 1.07 |
If NG, replace ambient sensor.
