Removal and Installation for Front Expansion Valve: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant. Refer to "HFC-134A (R-134A) SERVICE PROCEDURE ".
Remove the front heater and cooling unit assembly. Refer to "FRONT HEATER AND COOLING UNIT ASSEMBLY ".
Remove the cooler grommet.
Remove the expansion valve.

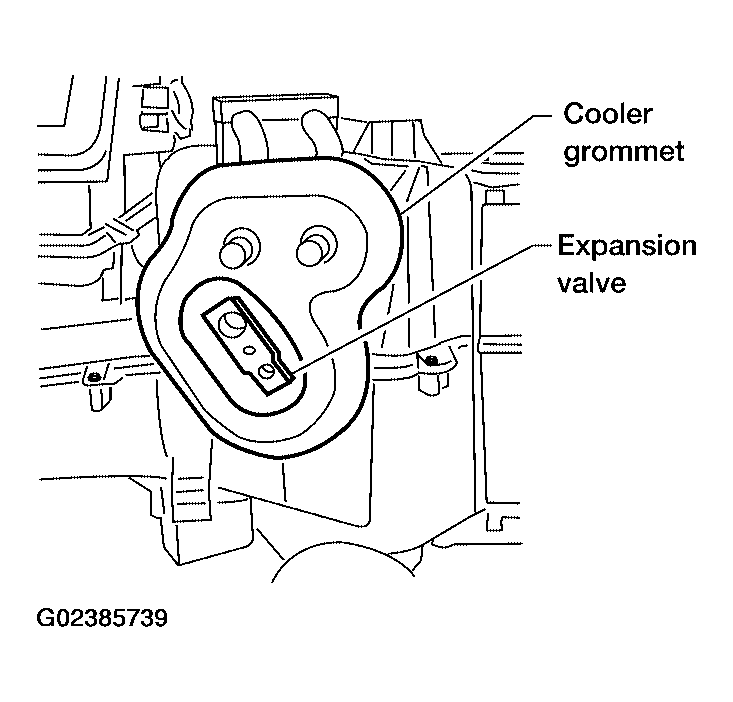

Fig 1: Identifying Cooler Grommet And Expansion Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
