Removal and Installation for Condenser: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant. Refer to "HFC-134A (R-134A) SERVICE PROCEDURE ".
Remove the radiator. Refer to "RADIATOR ".
CAUTION: Be careful not to damage the core surface of the condenser and the radiator.
Disconnect the high-pressure flexible hose and the high-pressure pipe from the condenser.
CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
Disconnect the refrigerant pressure sensor connector.
- Remove the refrigerant pressure sensor from the condenser as necessary.
Lift the condenser out of the mounting grommets to remove the condenser.

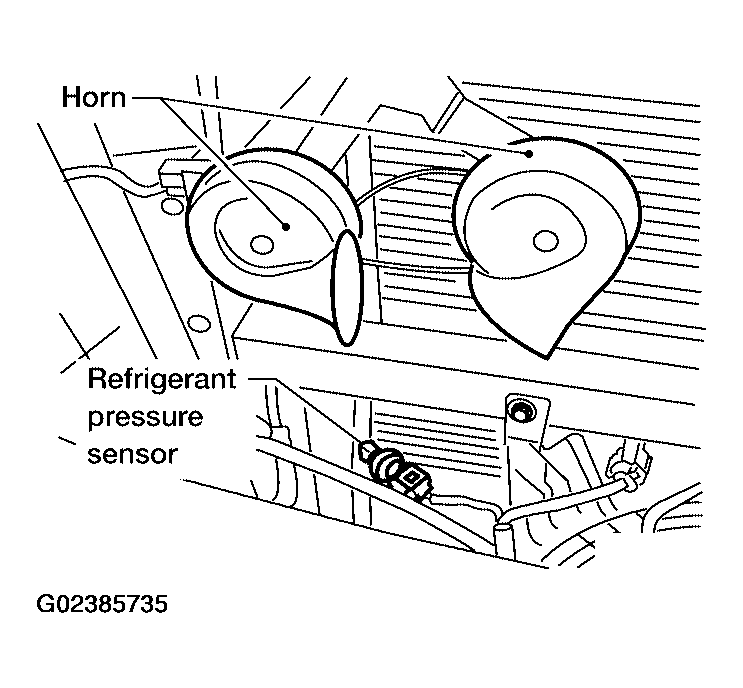

Fig 1: Identifying Horn And Refrigerant Pressure Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
