Removal and Installation for Compressor Clutch: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the compressor. Refer to "REMOVAL AND INSTALLATION FOR COMPRESSOR ".
Remove the center bolt while holding the clutch disc stationary using Tool as shown.
- Tool number: J-44614
Remove the clutch disc.

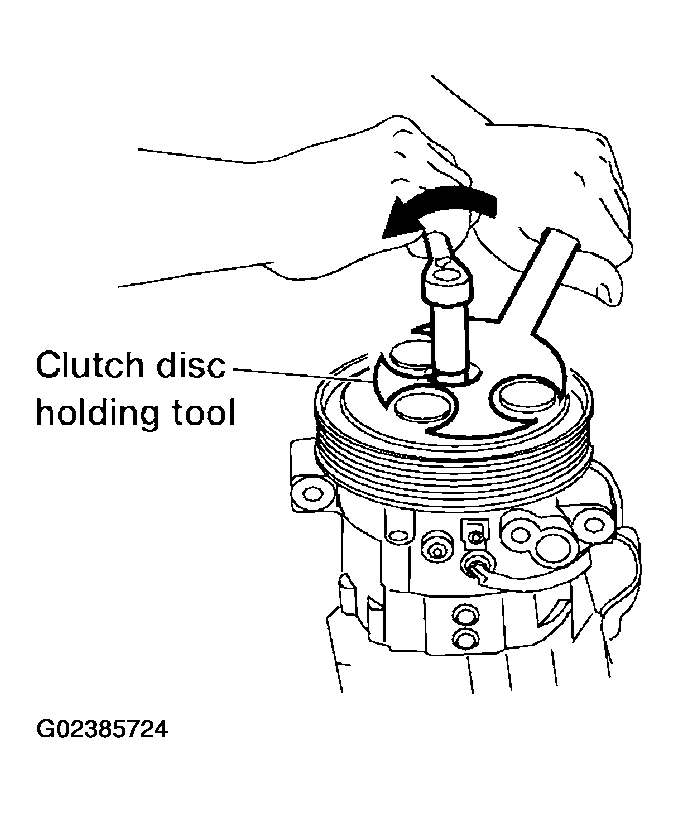

Fig 1: Removing Center Bolt While Holding Clutch Disc Stationary Using Tool (J-44614)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the snap ring using external snap ring pliers or suitable tool.

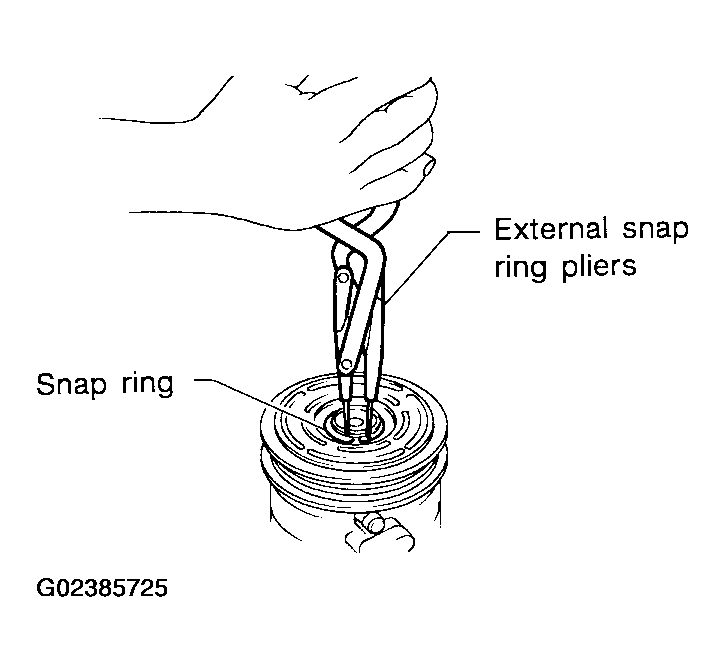

Fig 2: Removing Snap Ring Using External Snap Ring Pliers Or Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the pulley using Tool with a small adapter. Position the small adapter on the end of the drive shaft and the center of the puller on the small adapter.
- Tool number: KV99233130 (J-29884)
CAUTION: To prevent deformation of the pulley groove, the puller claws should be hooked under the pulley groove and not into the pulley groove.

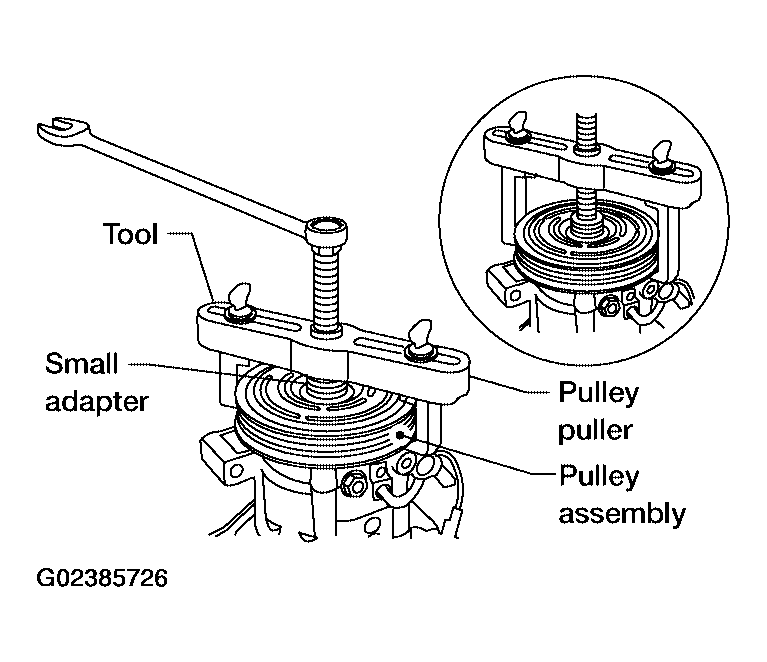

Fig 3: Removing Pulley Using Tool (KV99233130 {J-29884}) With A Small Adapter
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the magnet coil harness clip using a screwdriver, remove the three magnet coil fixing screws and remove the magnet coil.

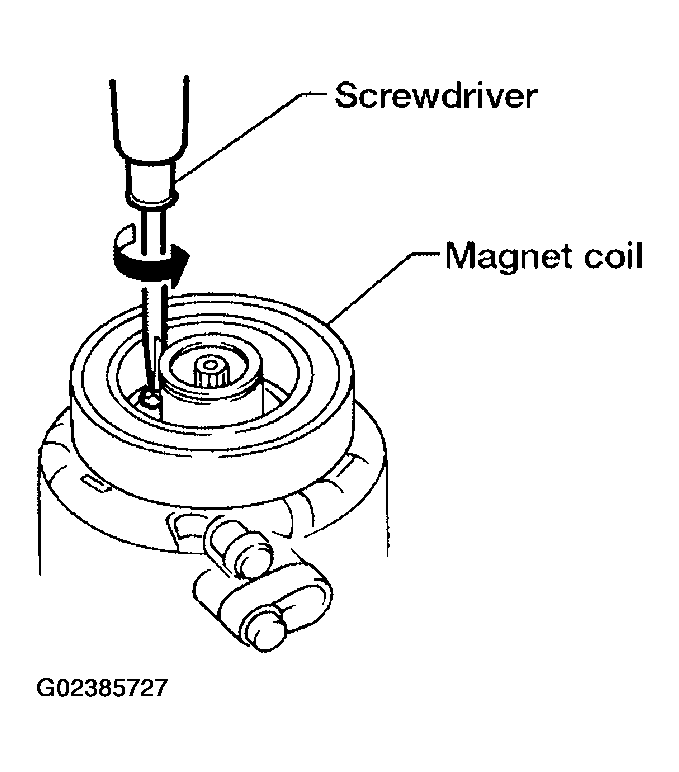

Fig 4: Removing Magnet Coil Harness Clip Using Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.
