Service Hoses

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Be certain that the service hoses display the markings described (colored hose with black stripe). All hoses must include positive shut-off devices (either manual or automatic) near the end of the hoses opposite the manifold gauge.

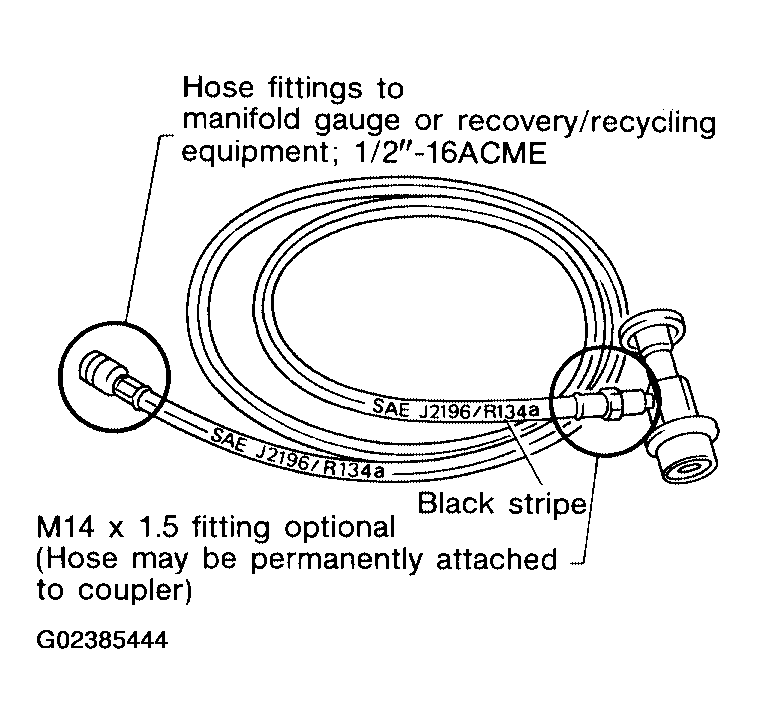

Fig 1: Identifying Marked Service Hoses
G02385444Courtesy of NISSAN MOTOR CO., U.S.A.
