Lubricant Adjusting Procedure for Components Replacement Except Compressor

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

After replacing any of the following major components, add the correct amount of lubricant to the system.

Amount of lubricant to be added:

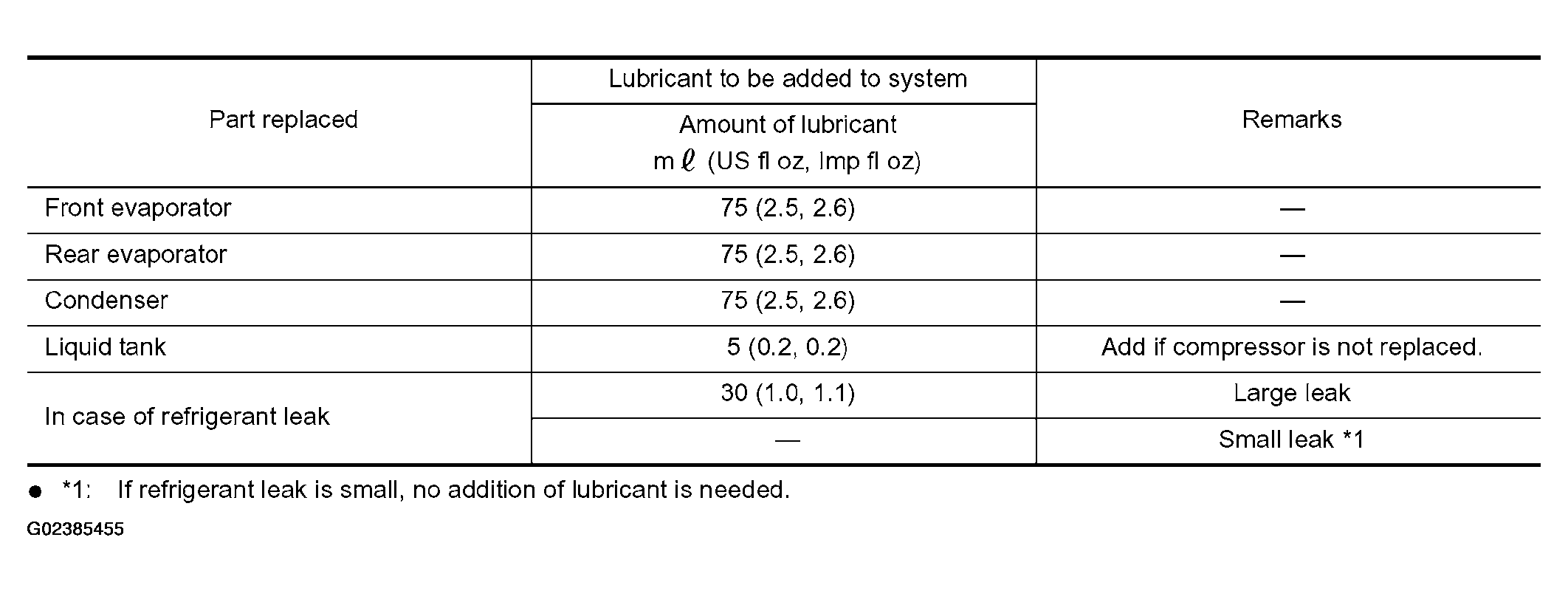

Fig 1: Amount Of Lubricant To Be Added Reference
G02385455Courtesy of NISSAN MOTOR CO., U.S.A.
