Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster lid D. Refer to "CLUSTER LID D ".
  2. Remove the two screws and remove the in-vehicle sensor.

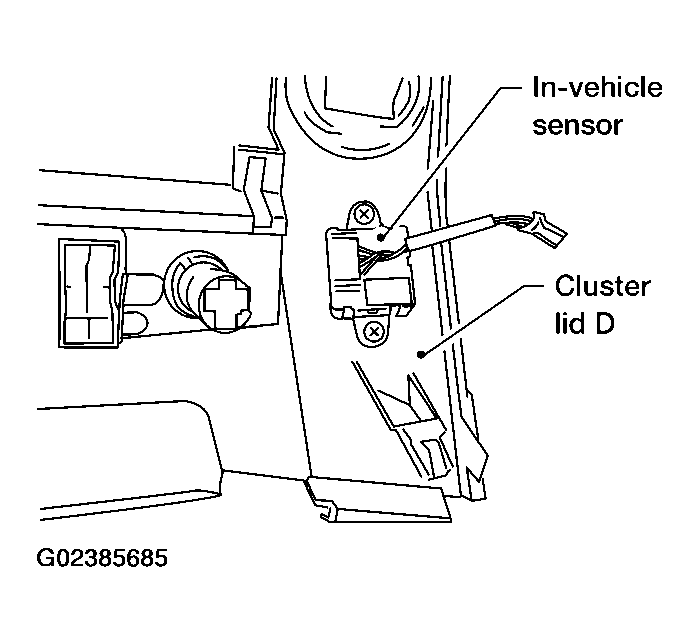

    Fig 1: Identifying In-Vehicle Sensor And Cluster Lid D
    G02385685Courtesy of NISSAN MOTOR CO., U.S.A.
