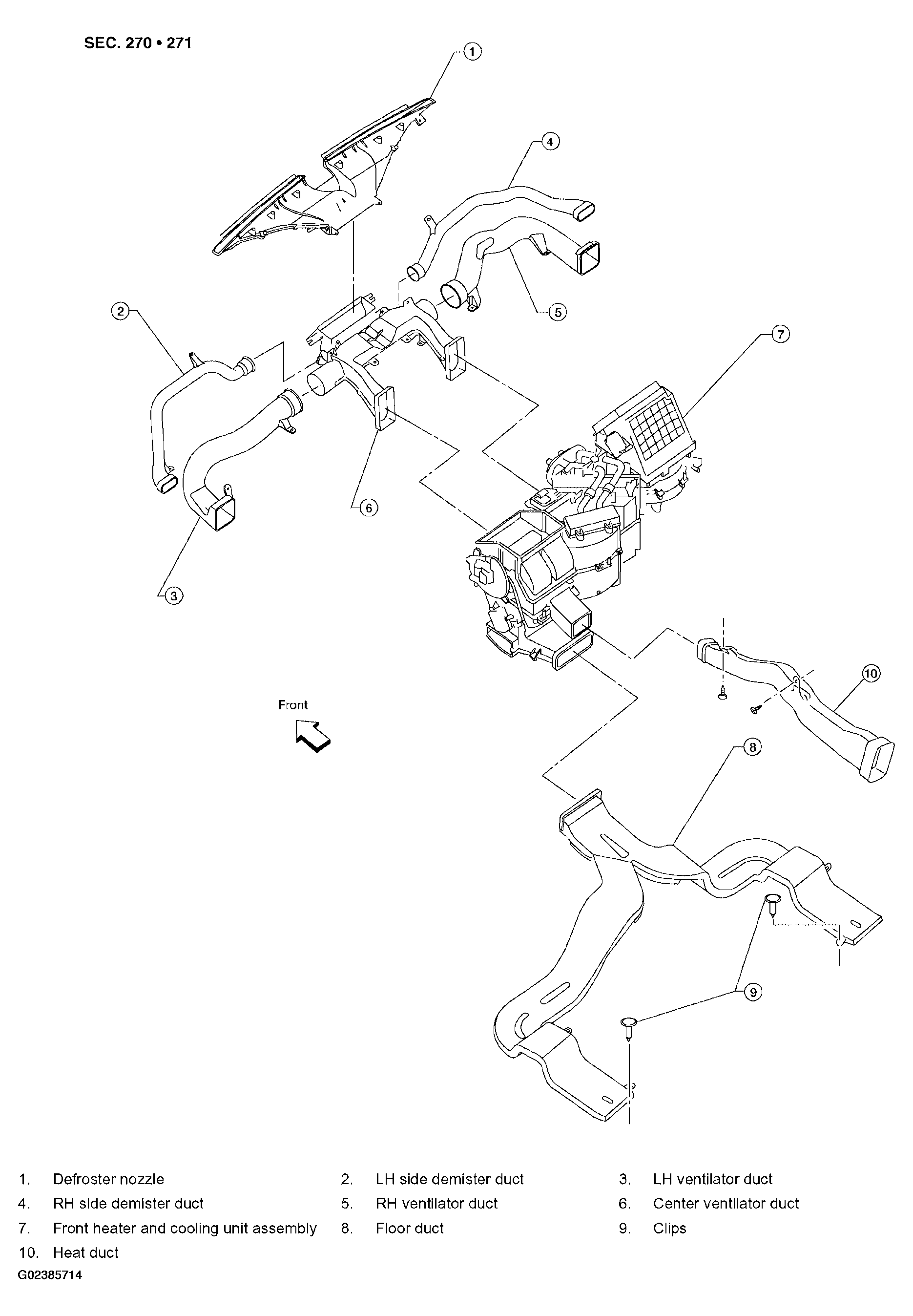

Fig 1: Exploded View Of Duct And Grille Components (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

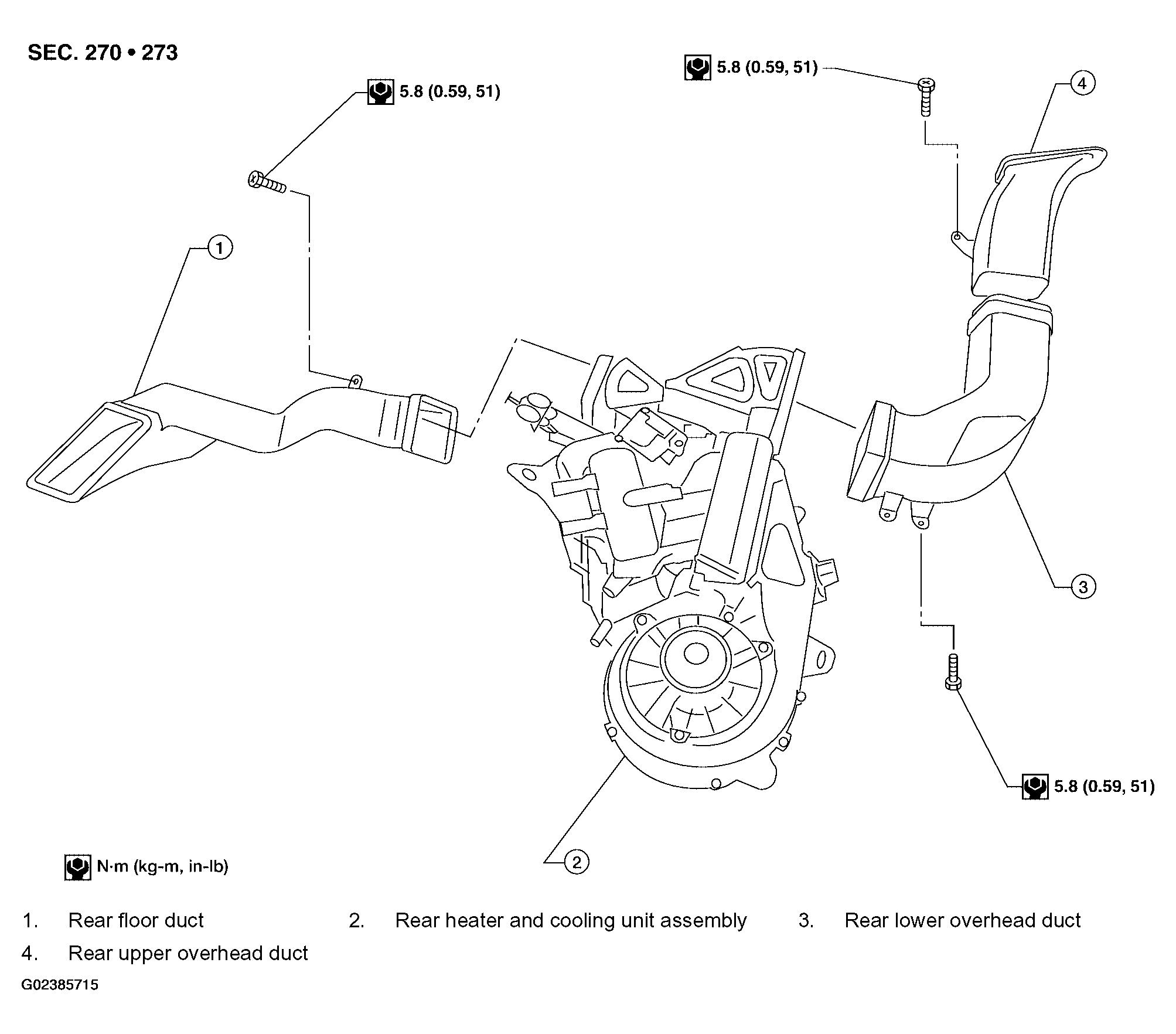

Fig 2: Exploded View Of Duct And Grille Components (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

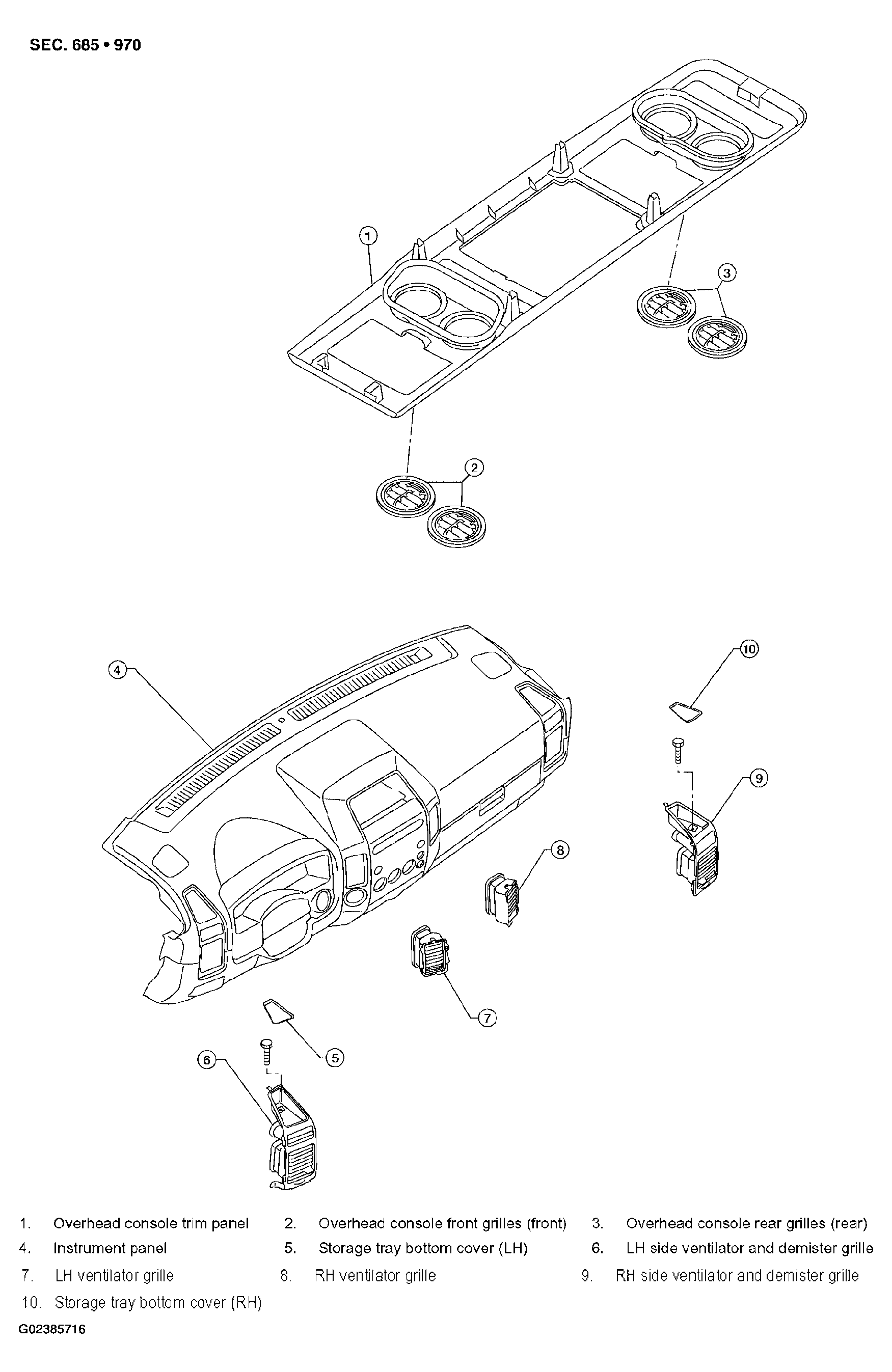

Fig 3: Exploded View Of Duct And Grille Components (3 Of 3)
