Rear Air Control: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console from the headliner. Refer to "HEADLINING ".
Remove the four screws and remove the rear air control.

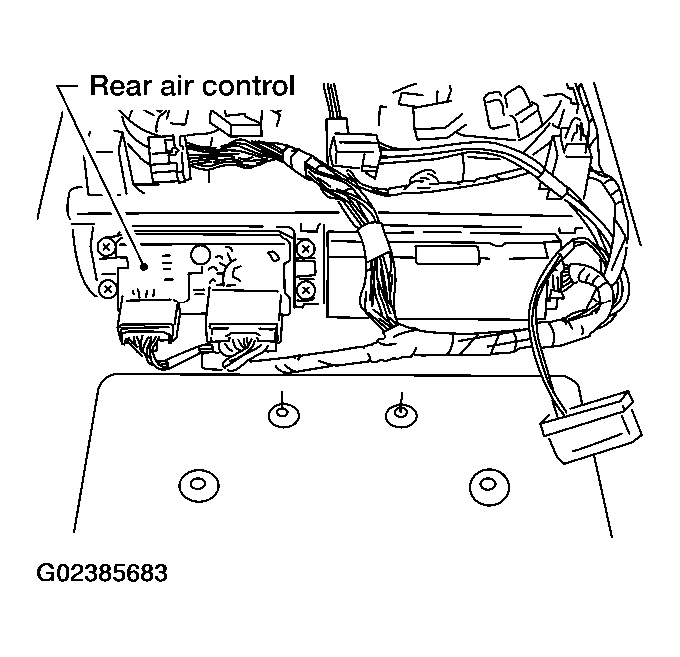

Fig 1: Identifying Rear Air Control
Courtesy of NISSAN MOTOR CO., U.S.A.
