Switches And Their Control Function

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

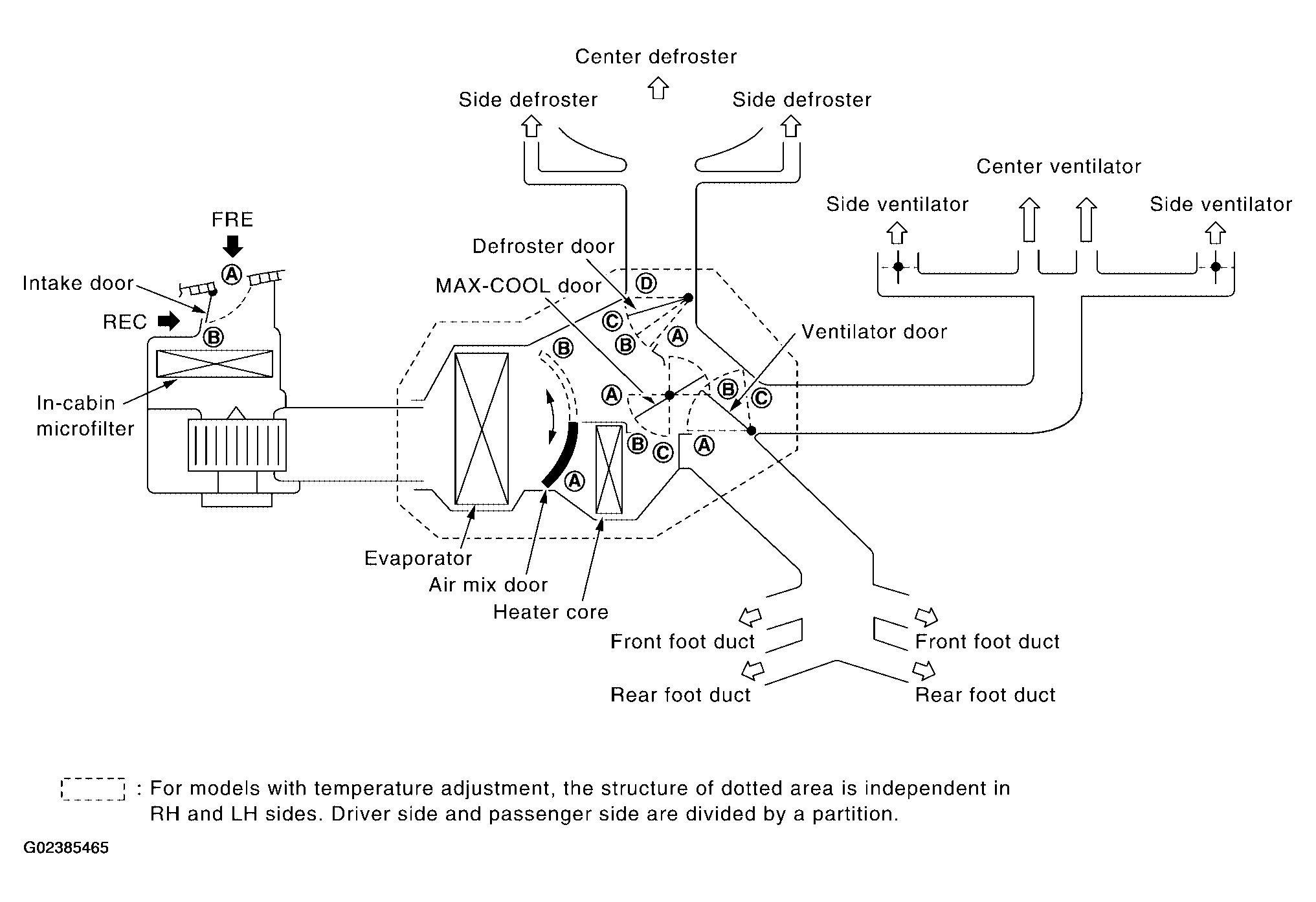

Fig 1: Front A/C Mode Operation (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

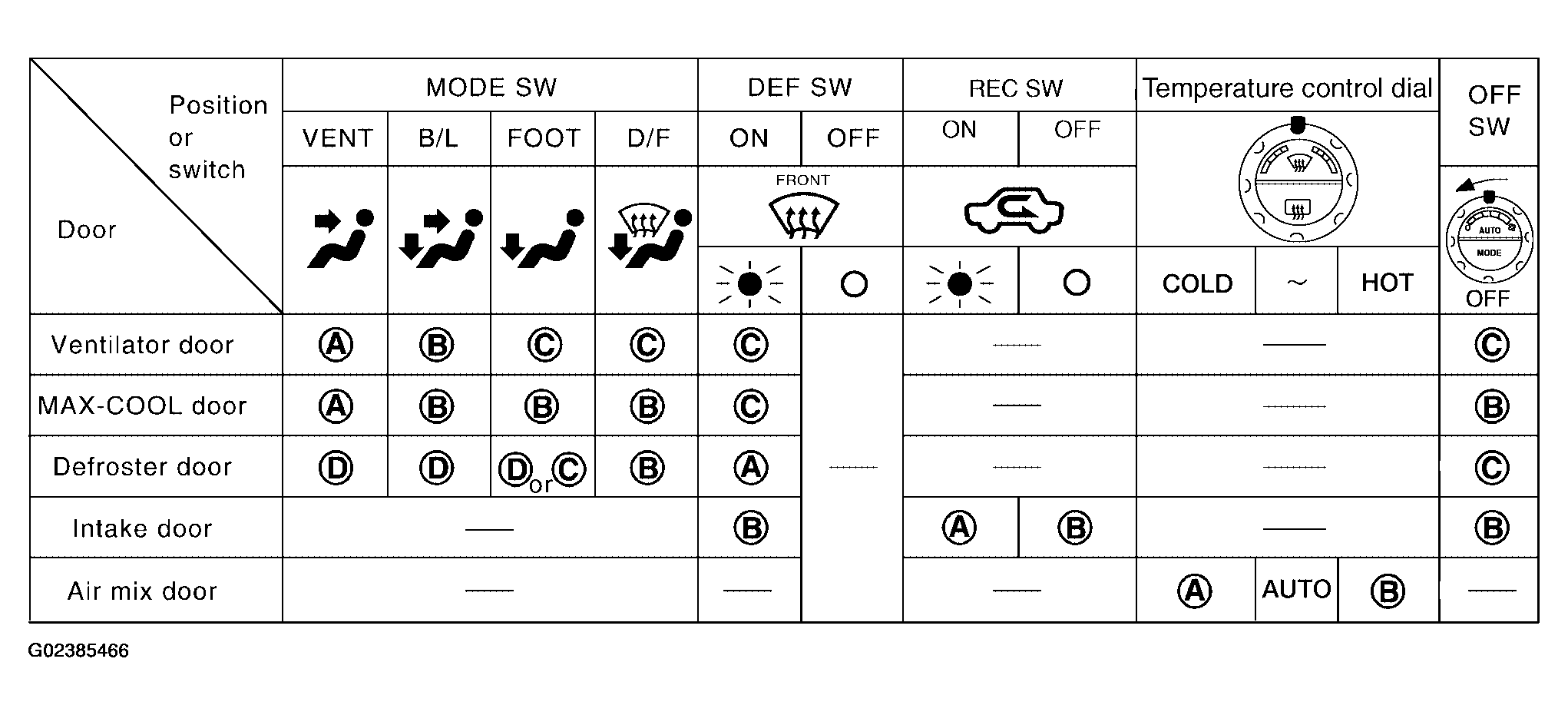

Fig 2: Front A/C Mode Operation (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
