Discharge Air Flow: Front

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

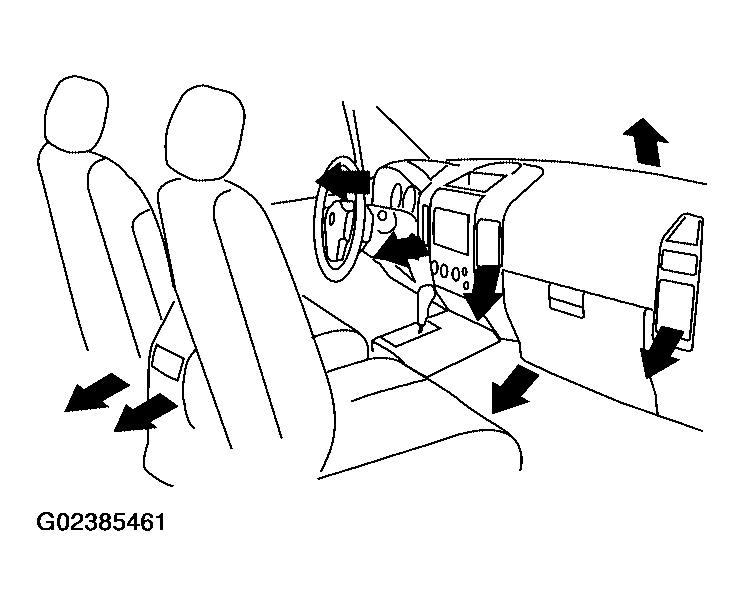

Fig 1: Front Discharge Air Flow
G02385461Courtesy of NISSAN MOTOR CO., U.S.A.

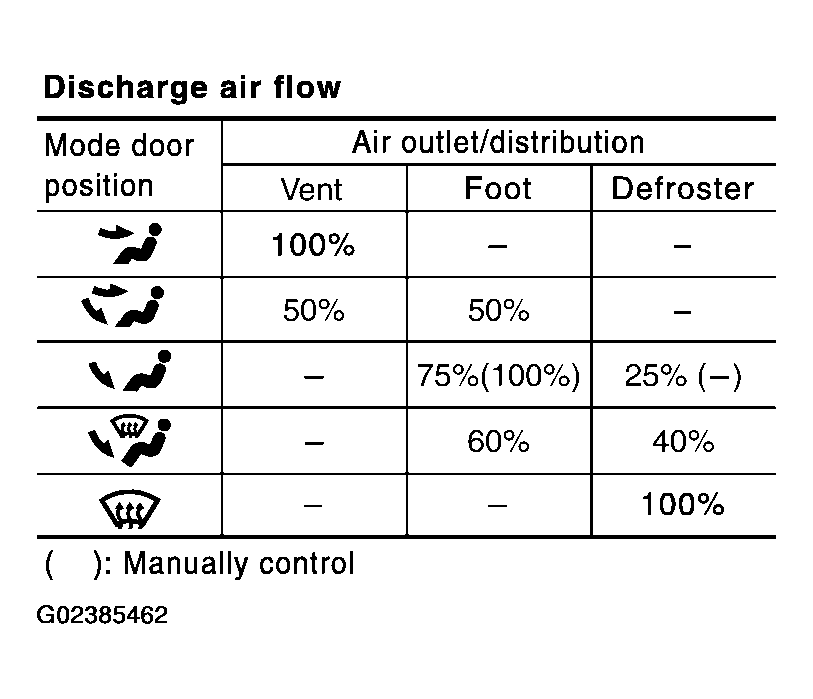

Fig 2: Front Discharge Air Flow Chart
G02385462Courtesy of NISSAN MOTOR CO., U.S.A.
