Third Row: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower base trim covers.
  2. Remove front anchor bolts.

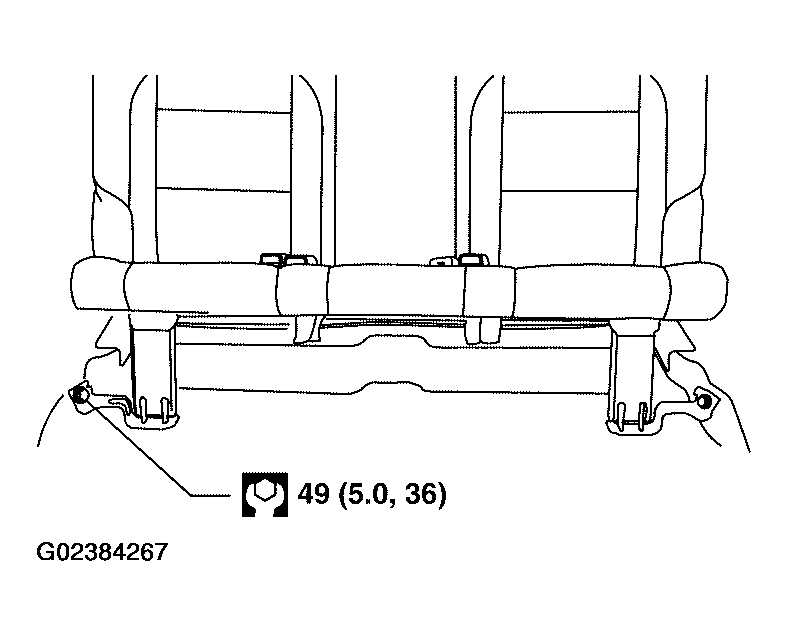

    Fig 1: Front Anchor Bolts With Torque Specifications
    G02384267Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Retract the seat into the cargo floor position.
  4. Remove the rear anchor bolts from the seat assembly.
  5. Remove the seat assembly.

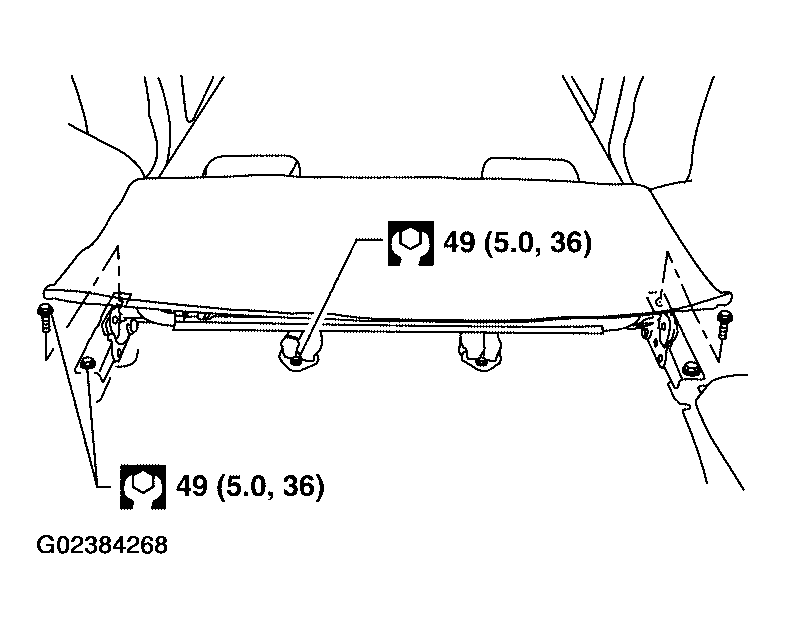

    Fig 2: Rear Anchor Bolts With Torque Specifications
    G02384268Courtesy of NISSAN MOTOR CO., U.S.A.
