Second Row Outboard: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove seat base trim cover.
  2. Lift handle and tilt seat forward.
  3. Disconnect the seat cushion heating element electrical connector.
  4. Remove seat anchor nuts, bolts and seat assembly.

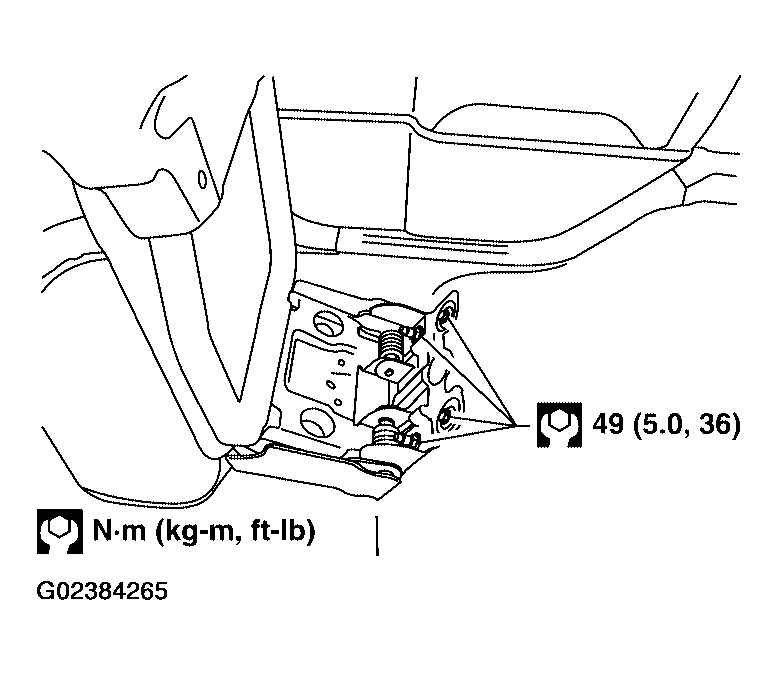

    Fig 1: Seat Anchor Nuts And Bolts With Torque Specifications
    G02384265Courtesy of NISSAN MOTOR CO., U.S.A.
