Second Row Center: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tilt the seat cushion forward.
  2. Remove the seat anchor bolts.
  3. Tilt the seat cushion back and remove the seat.

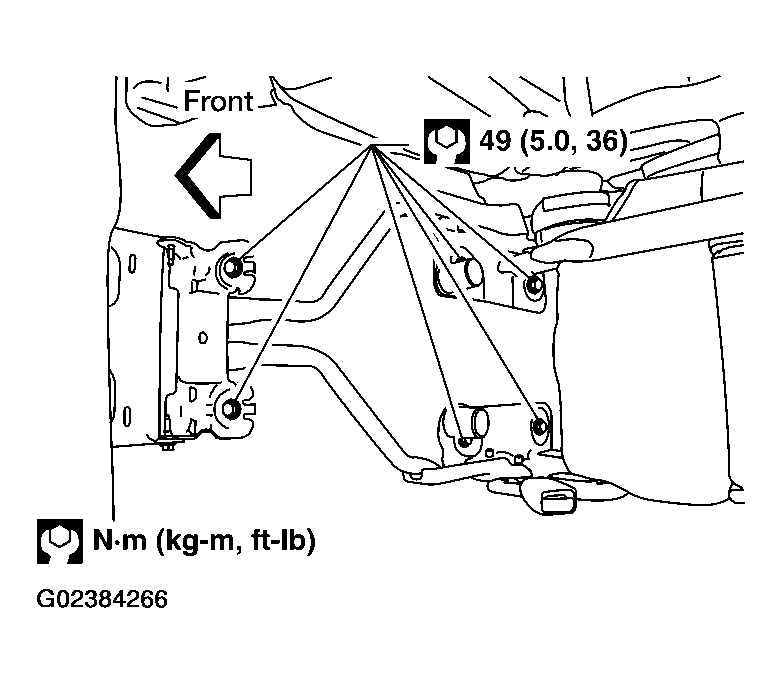

    Fig 1: Removing Seat Anchor Bolts With Torque Specifications
    G02384266Courtesy of NISSAN MOTOR CO., U.S.A.
