Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

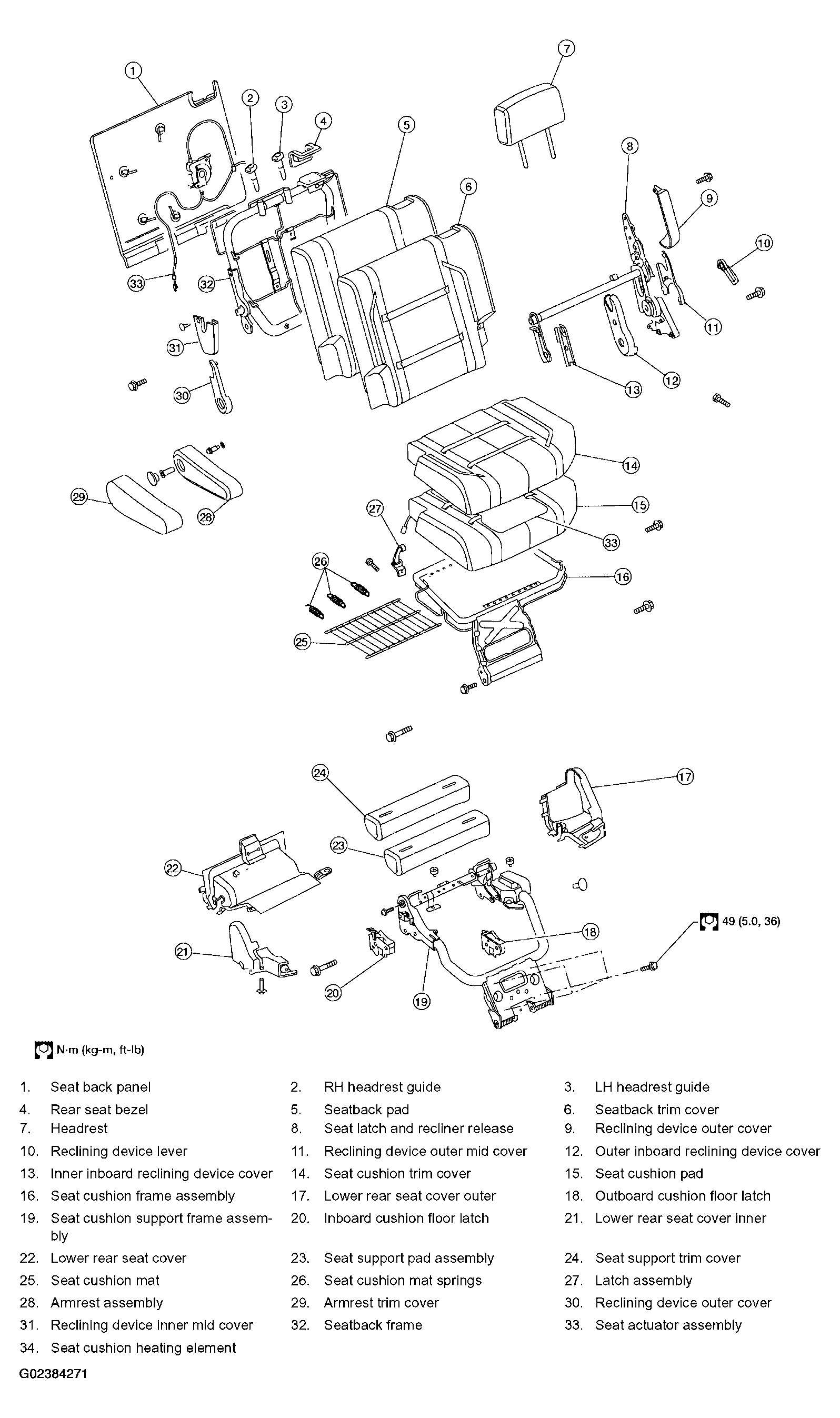

Fig 1: Exploded View Of Rear Seat With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Second row center

Fig 2: Exploded View Of Second Row Center With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Second row LH

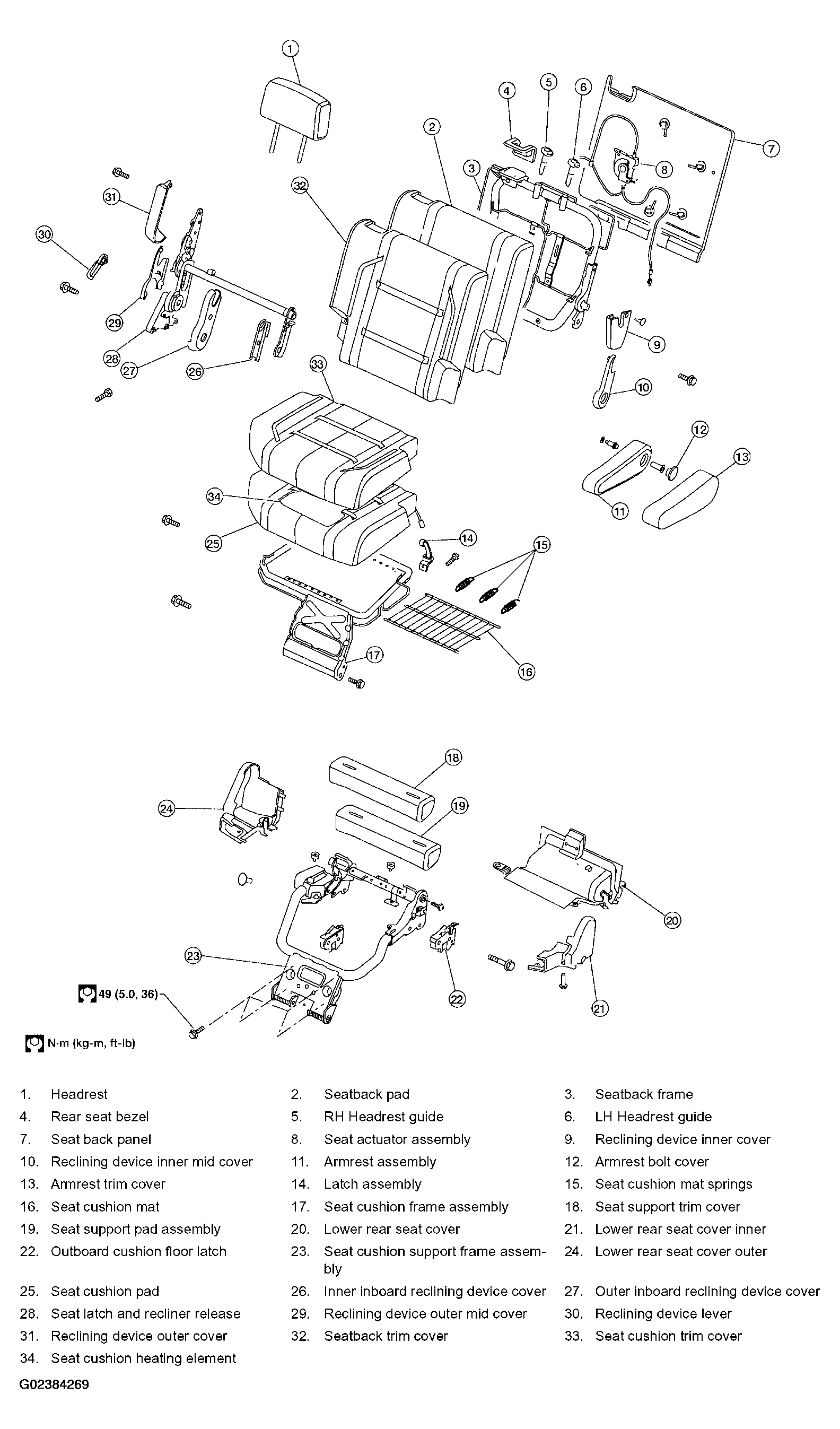

Fig 3: Exploded View Of Second Row LH With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Third row

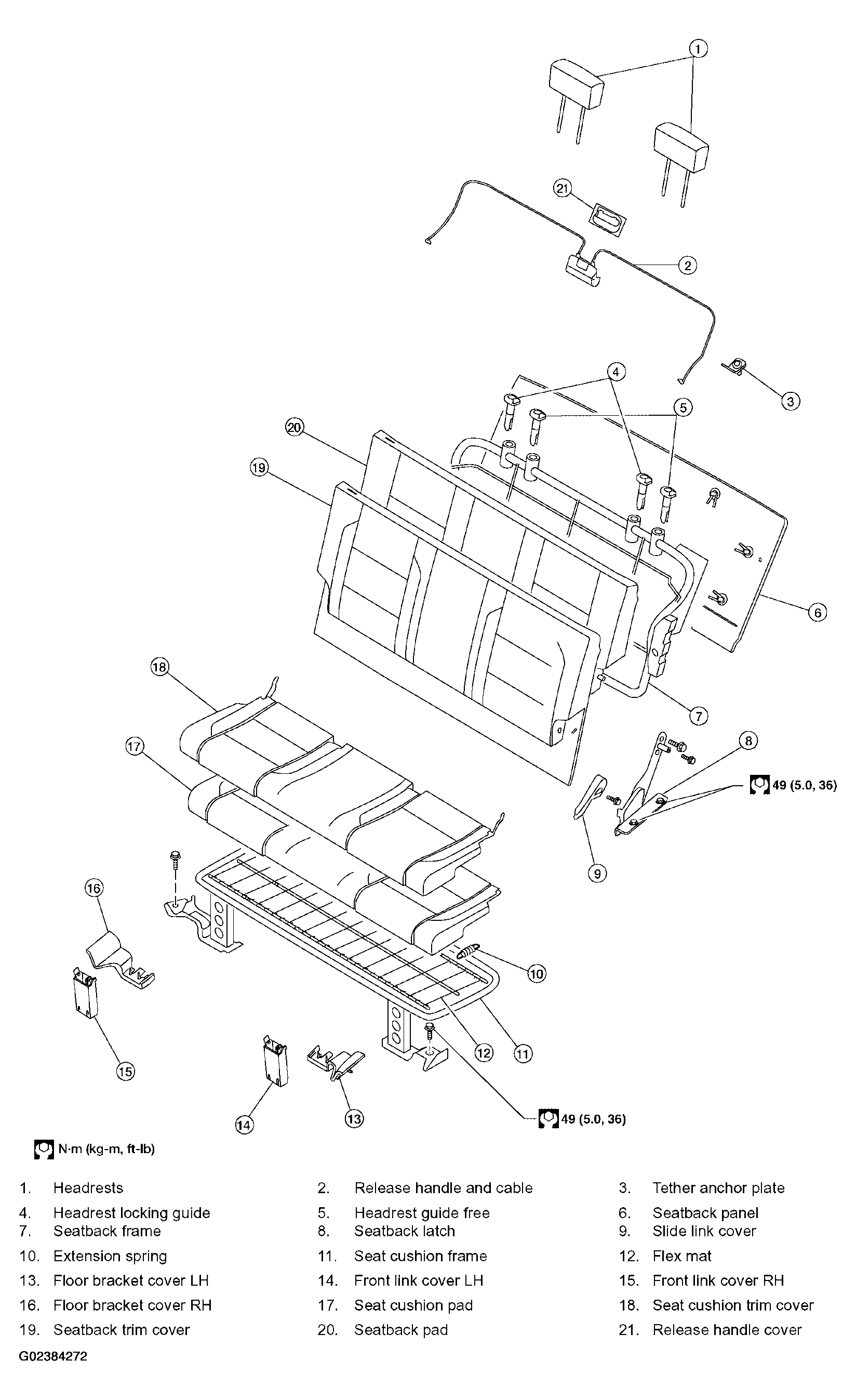

Fig 4: Exploded View Of Third Row With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
