Wiring Diagram - HSEAT -

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

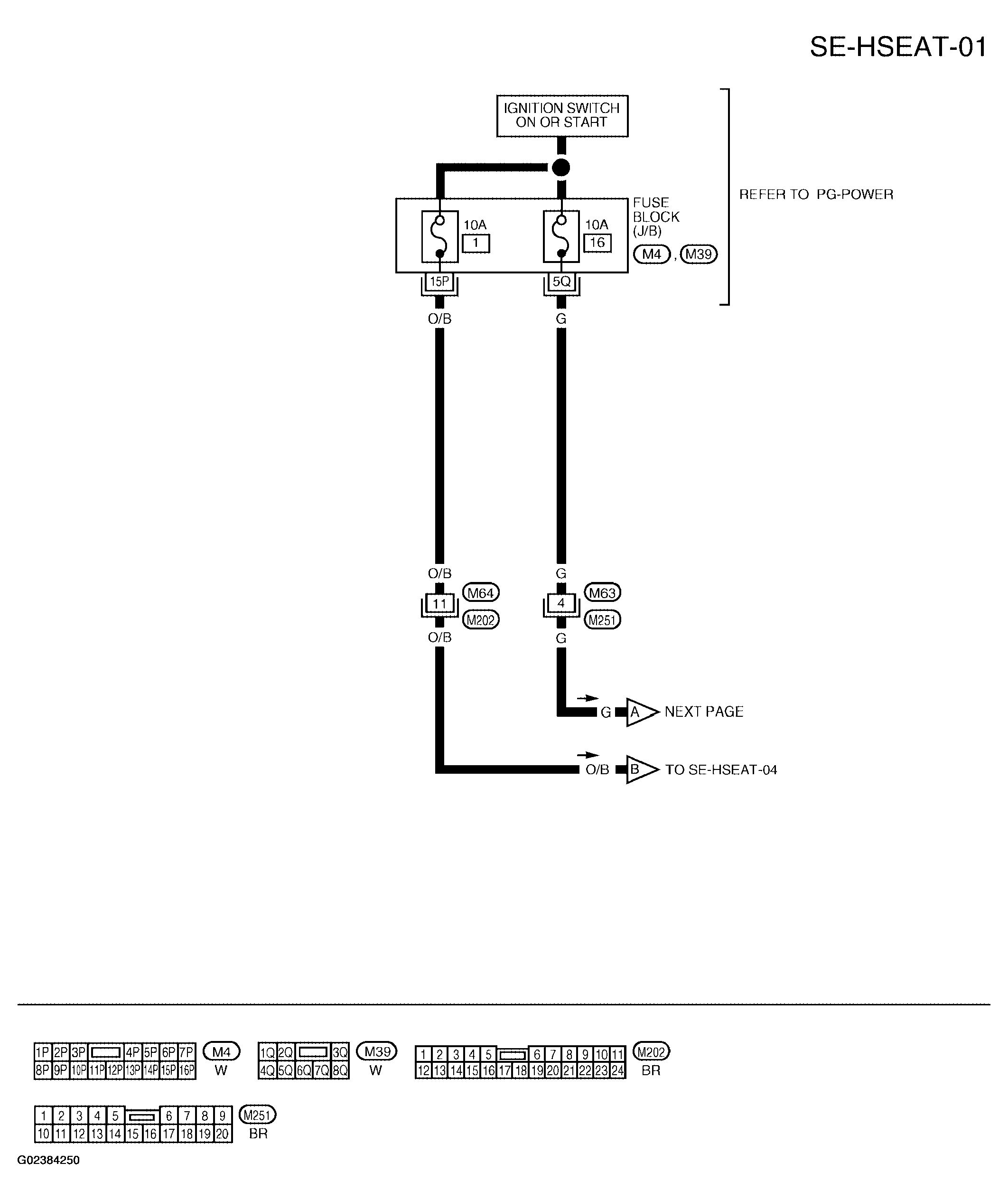

Fig 1: Heated Seat Wiring Diagram - SE-HSEAT-01

Courtesy of NISSAN MOTOR CO., U.S.A.

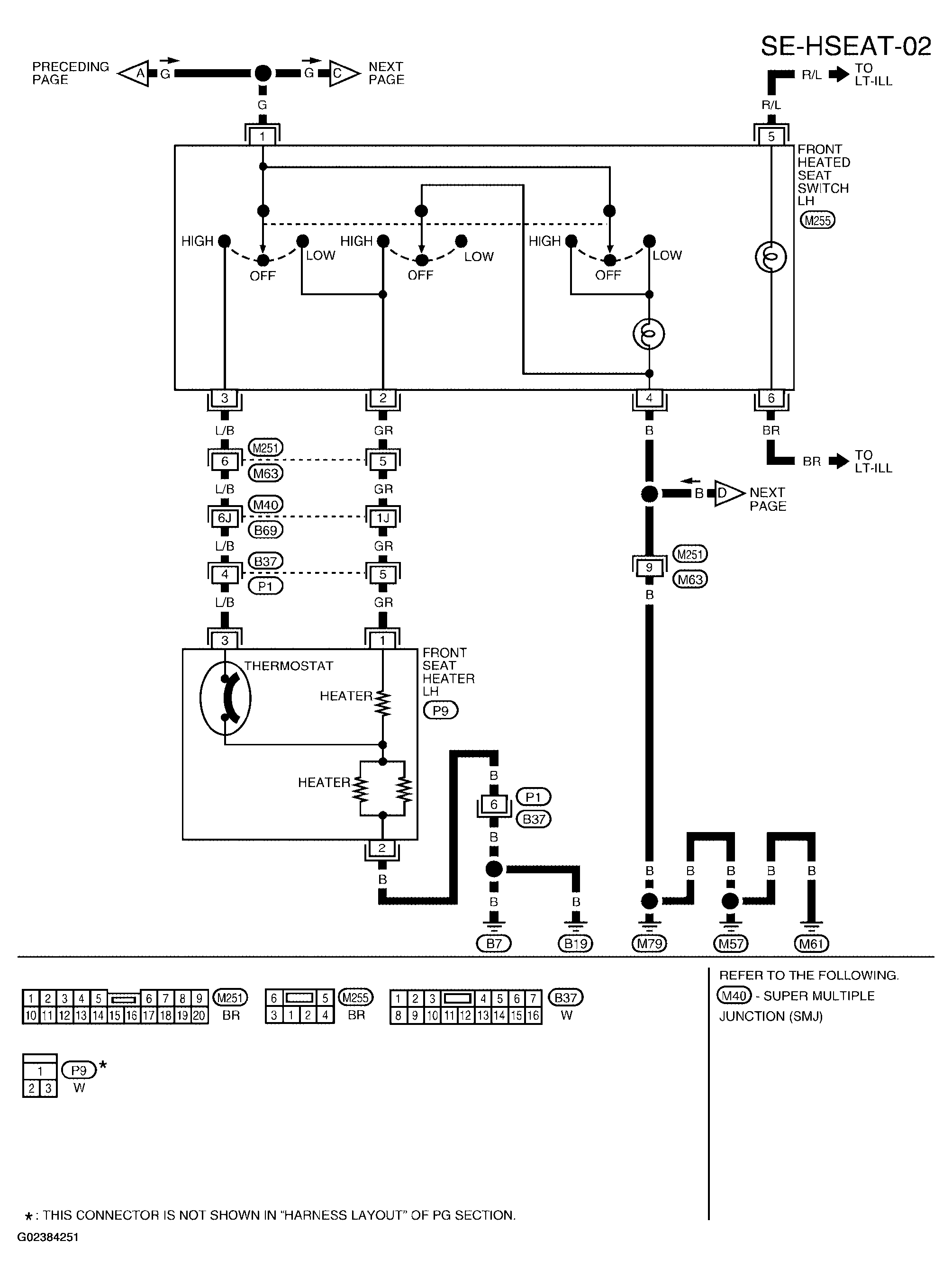

Fig 2: Heated Seat Wiring Diagram - SE-HSEAT-02

Courtesy of NISSAN MOTOR CO., U.S.A.

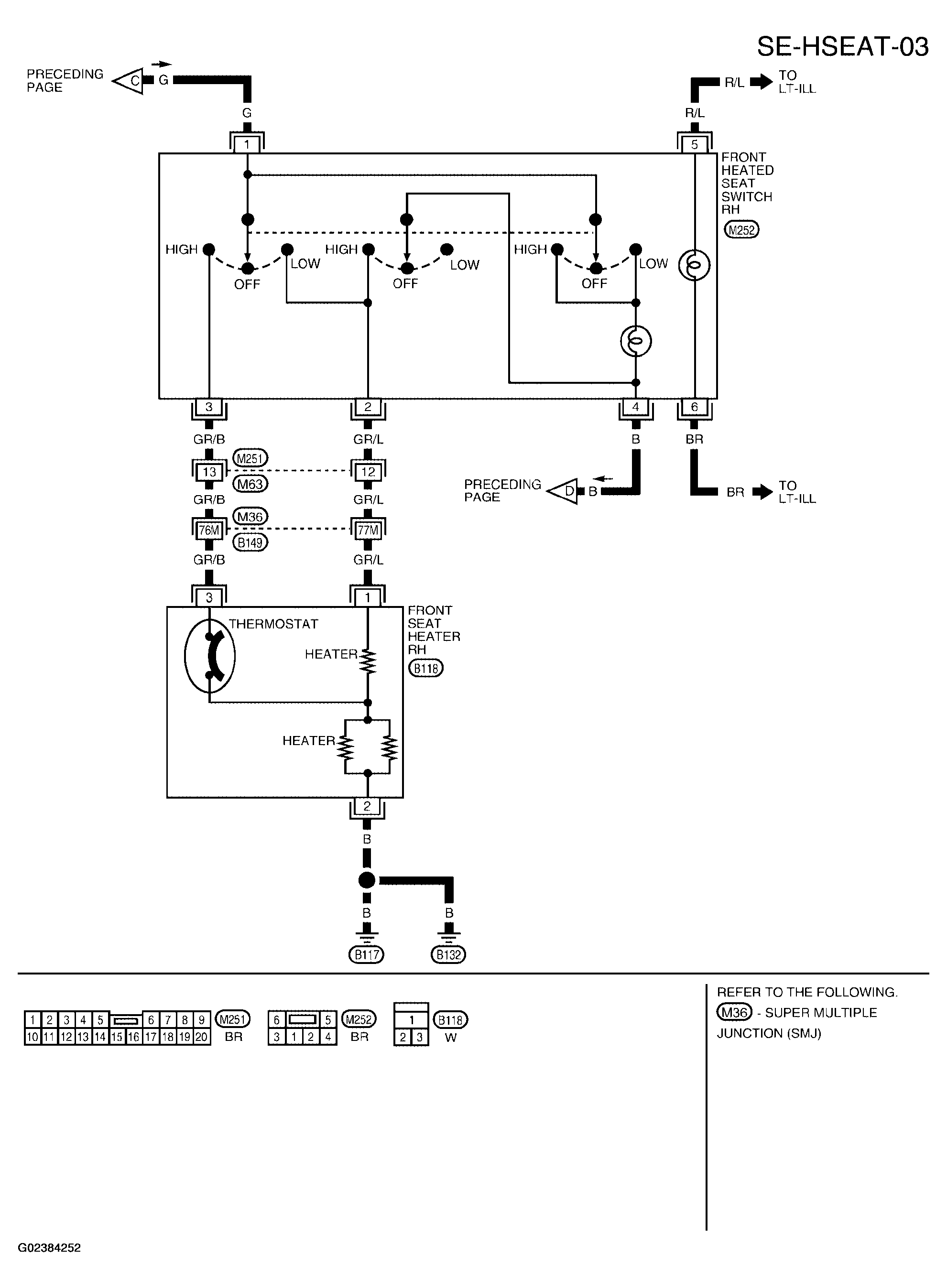

Fig 3: Heated Seat Wiring Diagram - SE-HSEAT-03

Courtesy of NISSAN MOTOR CO., U.S.A.

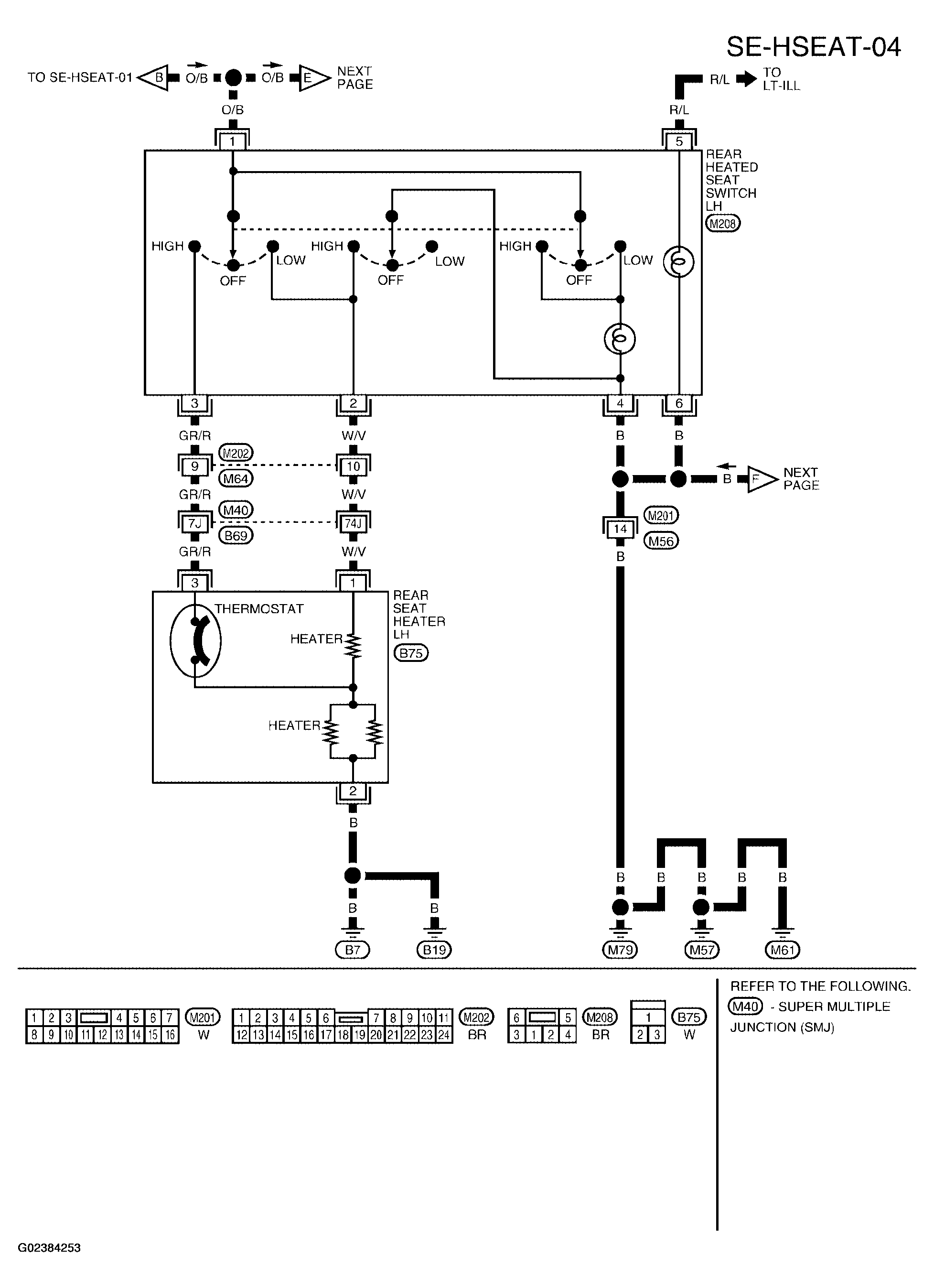

Fig 4: Heated Seat Wiring Diagram - SE-HSEAT-04

Courtesy of NISSAN MOTOR CO., U.S.A.

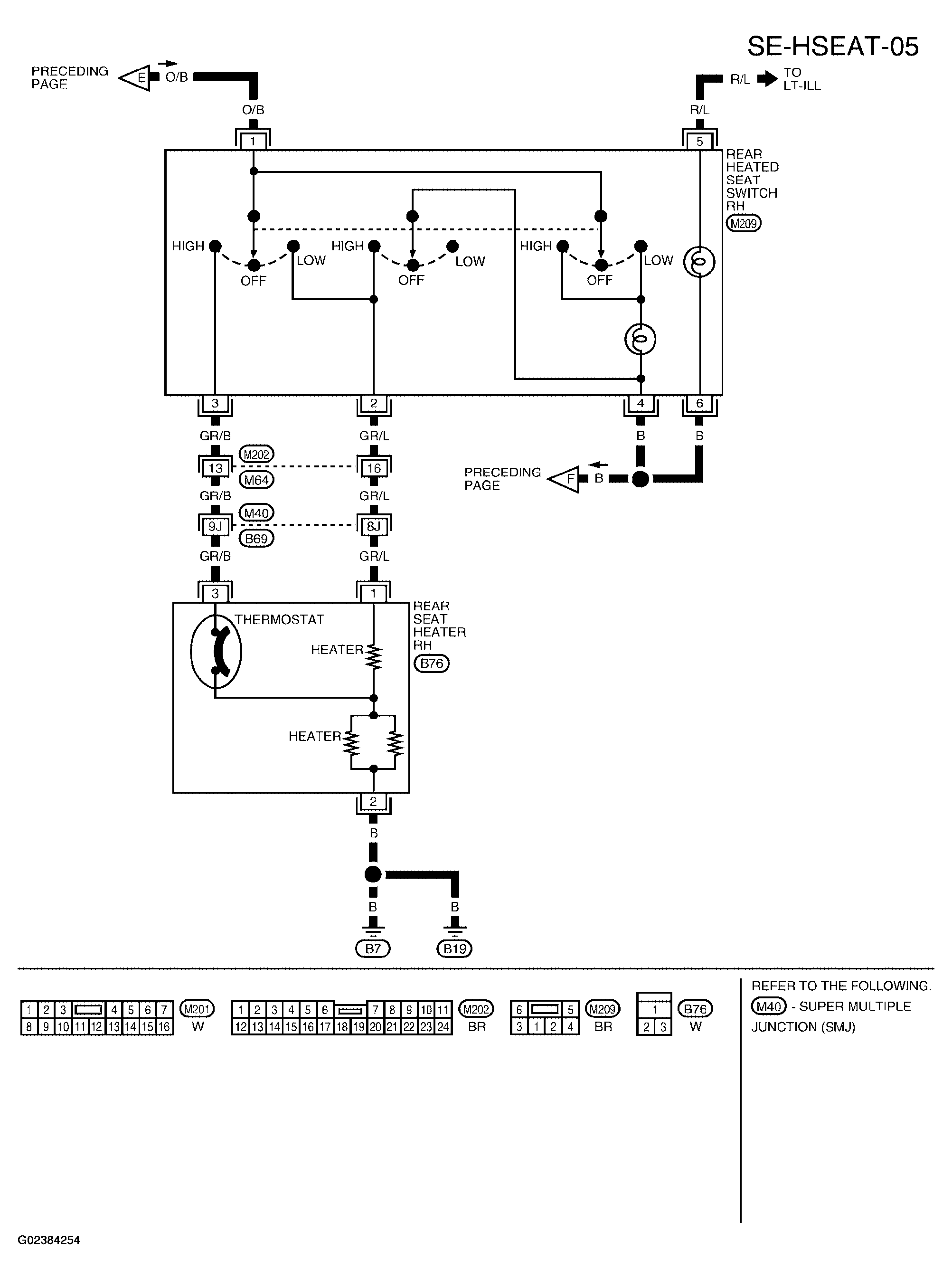

Fig 5: Heated Seat Wiring Diagram - SE-HSEAT-05

Courtesy of NISSAN MOTOR CO., U.S.A.
