Driver Seat

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headrest.
  2. Unhook the j-channel.

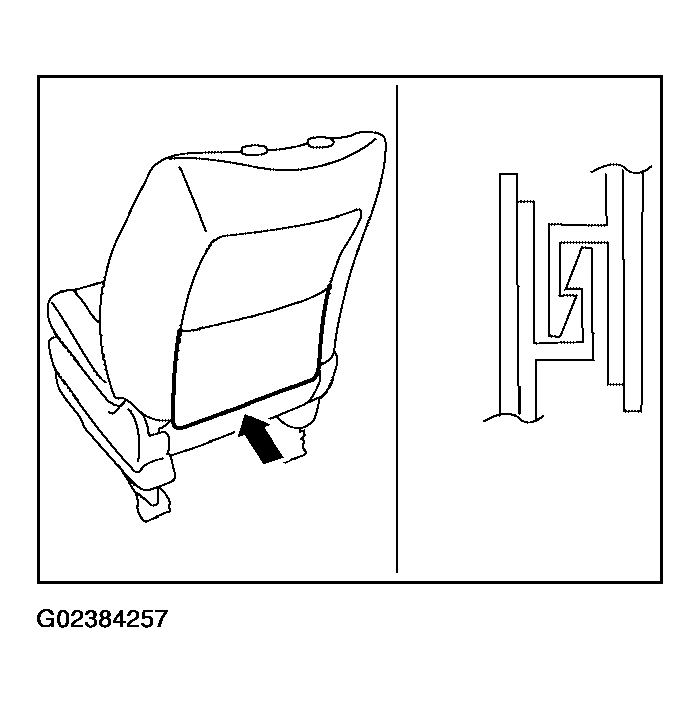

    Fig 1: Identifying J-Channel
    G02384257Courtesy of NISSAN MOTOR CO., U.S.A.
  3. From inside of the seatback, squeeze the headrest holder tabs at the base of the stay pipe and pull up to remove.
    NOTE: Before installing the headrest holder, check its orientation (front/rear and right/left).

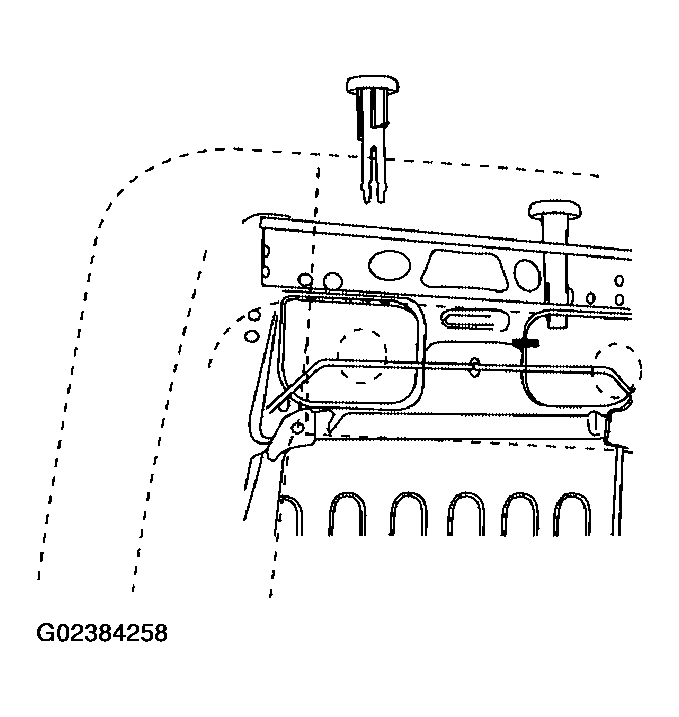

    Fig 2: Identifying Headrest Holder Tabs
    G02384258Courtesy of NISSAN MOTOR CO., U.S.A.
