Steering Wheel Tilt Switch Circuit Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    With "TILT SW-UP, TILT SW-DOWN" on the DATA MONITOR, operate the ADP steering wheel tilt switch to check ON/OFF operation.

    STEERING WHEEL TILT SWITCH OPERATION REFERENCE

    Monitor item [OPERATION or UNIT] Contents
    TILT SW-UP "ON/OFF" Operation (ON)/open (OFF) status judged from the tilt switch (FR) signal is displayed.
    TILT SW-DOWN "ON/OFF" Operation (ON)/open (OFF) status judged from the tilt switch (RR) signal is displayed.

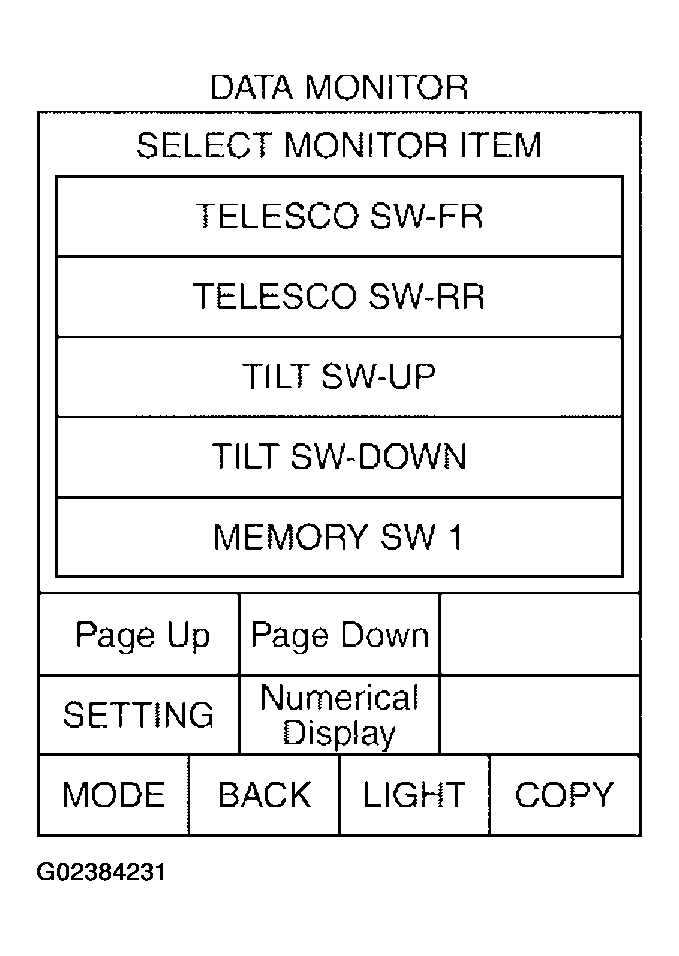

    Fig 1: CONSULT-II - Identifying "TILT SW-UP" And "TILT SW-DOWN" On DATA MONITOR
    G02384231Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Check voltage between automatic drive positioner control unit connector and ground.

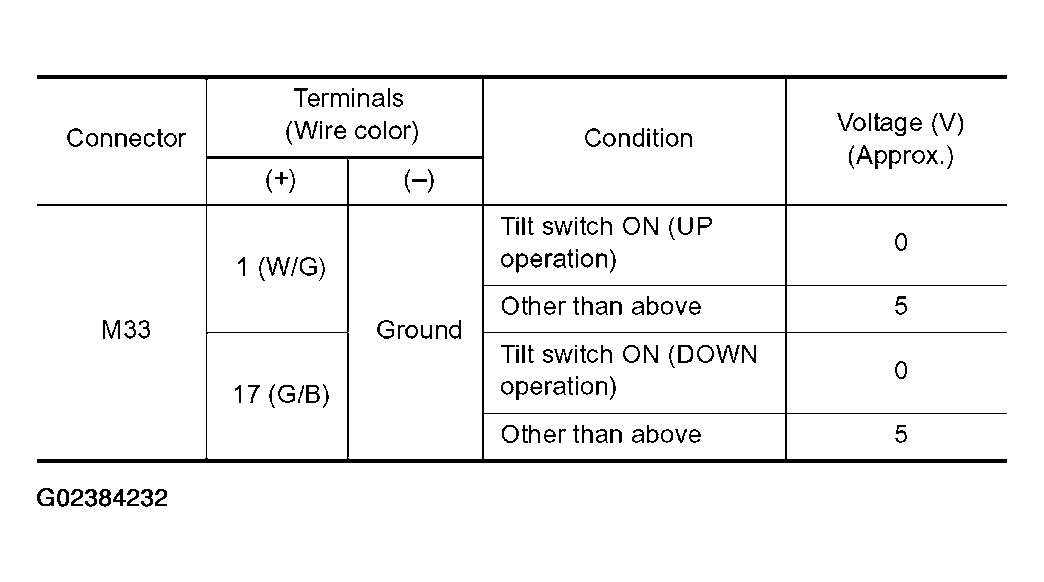

    Fig 2: Automatic Drive Positioner Control Unit Connector M33 Terminals 1 And 17 Voltage Specifications
    G02384232Courtesy of NISSAN MOTOR CO., U.S.A.

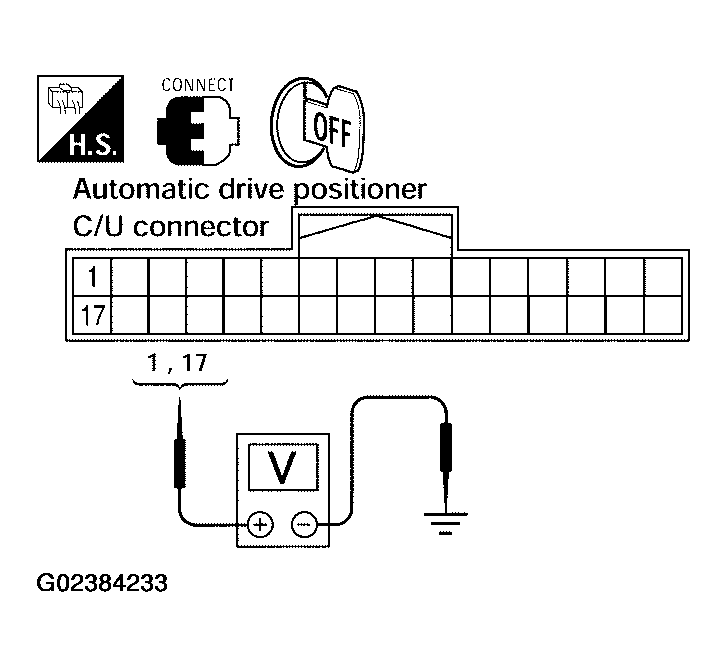

    Fig 3: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
    G02384233Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: ADP steering wheel tilt switch circuit is OK.
    • NG: GO TO 2.
  2. CHECK ADP STEERING WHEEL TILT SWITCH HARNESS CONTINUITY
    1. Disconnect automatic drive positioner control unit connector and ADP steering wheel tilt switch.
    2. Check continuity between automatic drive positioner control unit connector M33 terminals 1, 17 and ADP steering wheel tilt switch connector M16 terminals 2, 3.
      • 1 (W/G) - 2 (W/G): Continuity should exist.
      • 17 (G/B) - 3 (G/B): Continuity should exist.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 1, 17 and ground.
      • 1 (W/G) - Ground: Continuity should not exist.
      • 17 (G/B) - Ground: Continuity should not exist.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair or replace harness.

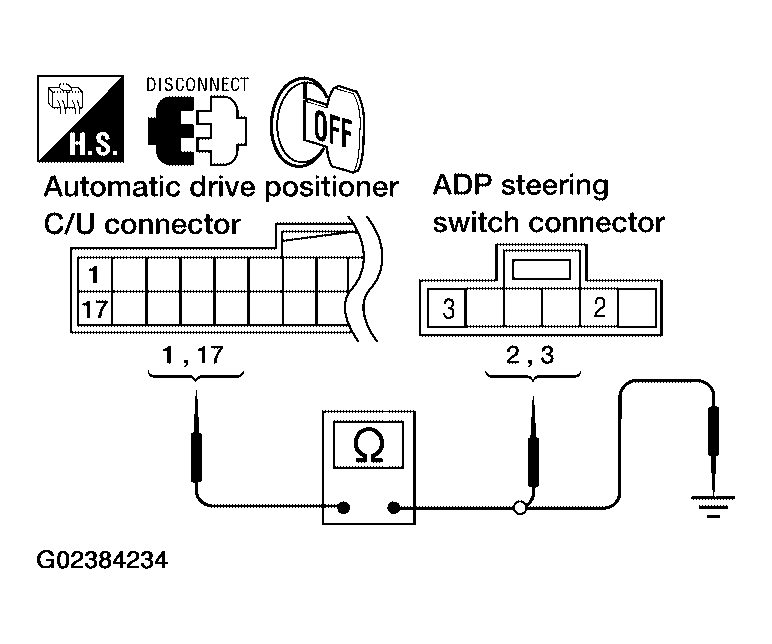

    Fig 4: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 1, 17 And ADP Steering Wheel Tilt Switch Connector M16 Terminals 2 And 3
    G02384234Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK ADP STEERING WHEEL TILT SWITCH

    Check continuity between ADP steering wheel tilt switch as follows.

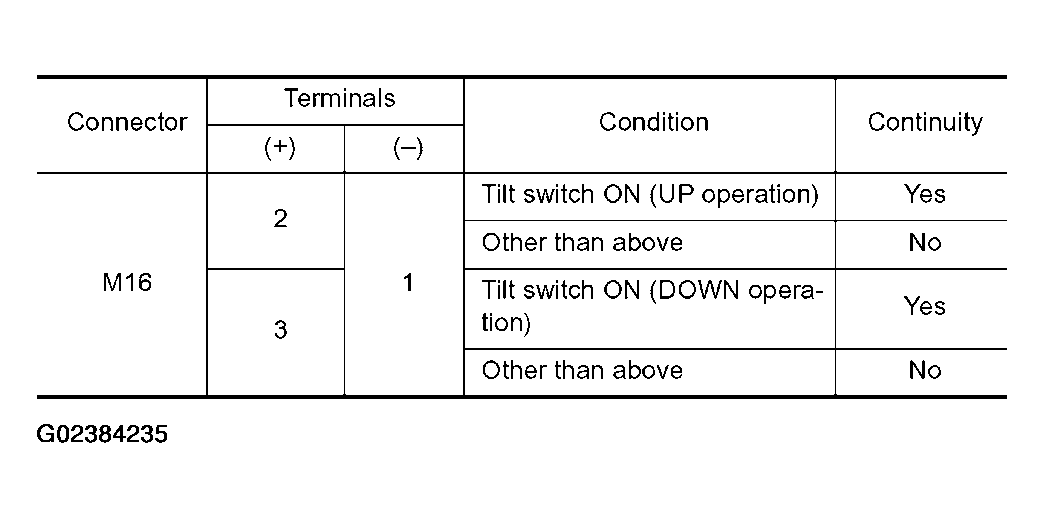

    Fig 5: ADP Steering Wheel Tilt Switch Connector M16 Terminals 2, 3 And 1 Continuity Conditions
    G02384235Courtesy of NISSAN MOTOR CO., U.S.A.

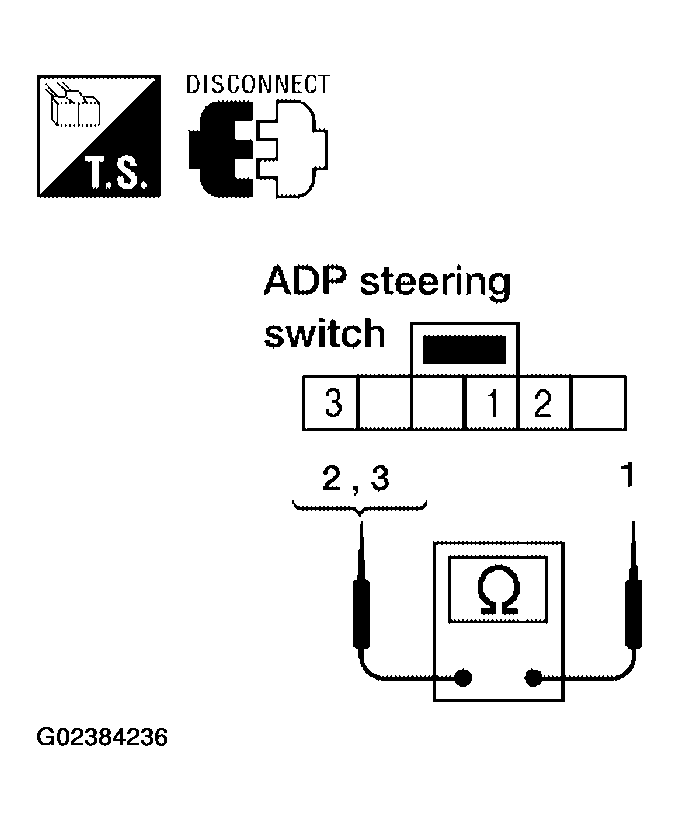

    Fig 6: Checking Continuity Between ADP Steering Wheel Tilt Switch Terminals
    G02384236Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Replace ADP steering wheel tilt switch.
  4. CHECK ADP STEERING WHEEL TILT SWITCH GROUND CIRCUIT

    Check continuity between ADP steering wheel tilt switch connector M16 terminal 1 and ground.

    • 1 (B) - Ground: Continuity should exist.

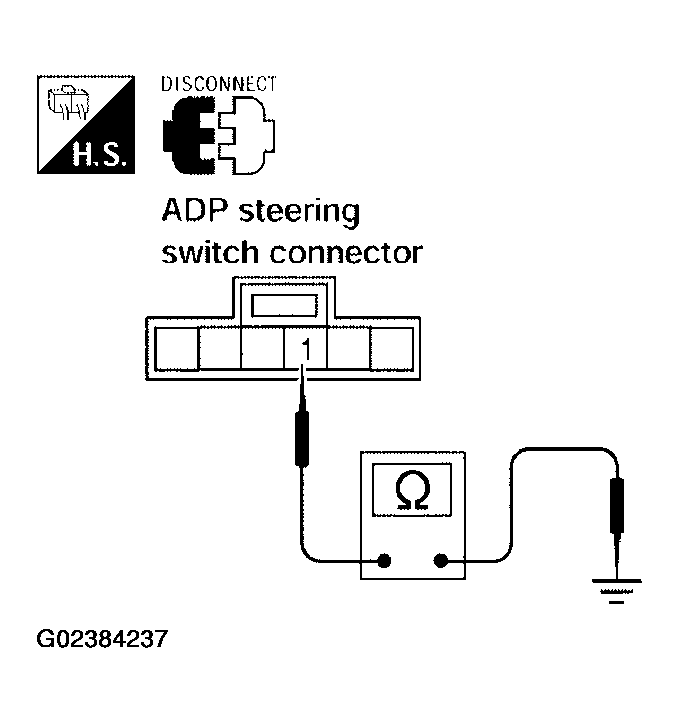

      Fig 7: Checking Continuity Between ADP Steering Wheel Tilt Switch Connector M16 Terminal 1 And Ground
      G02384237Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Check the condition of the harness and connector.
    • NG: Replace or replace harness.
