Steering Wheel Tilt Sensor Circuit Inspection
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK FUNCTION
With CONSULT-II

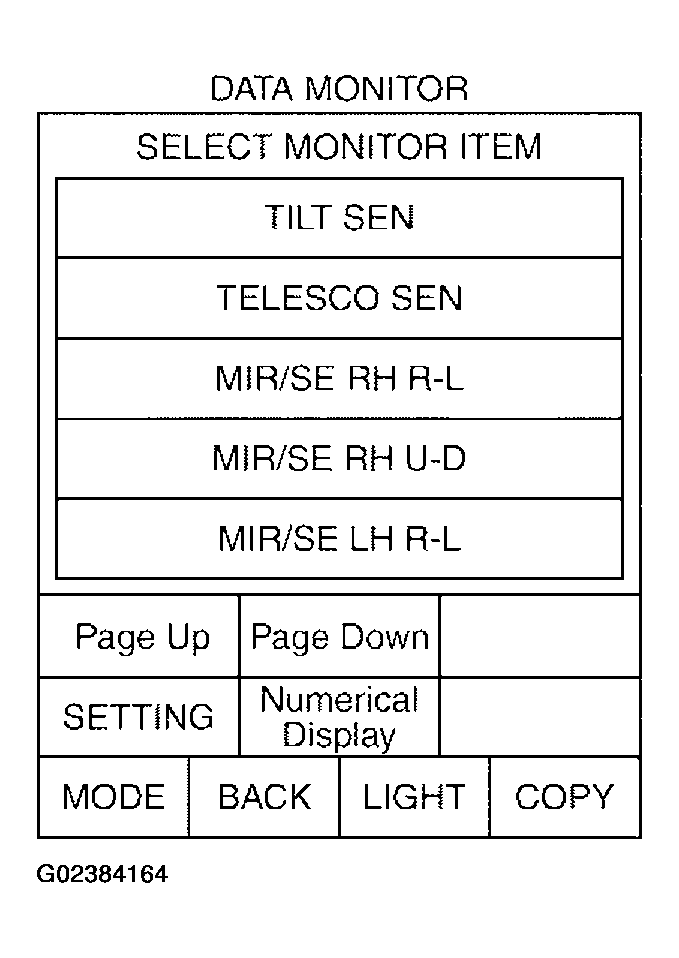

Operate the pedal adjusting switch with "TILT SEN" on the DATA MONITOR to make sure the voltage changes.
STEERING WHEEL TILT SENSOR OPERATION REFERENCEMonitor item [OPERATION or UNIT] Contents TILT SEN "V" The tilt position (voltage) judged from the tilt sensor signal is displayed. Without CONSULT-II
- Turn ignition switch OFF.

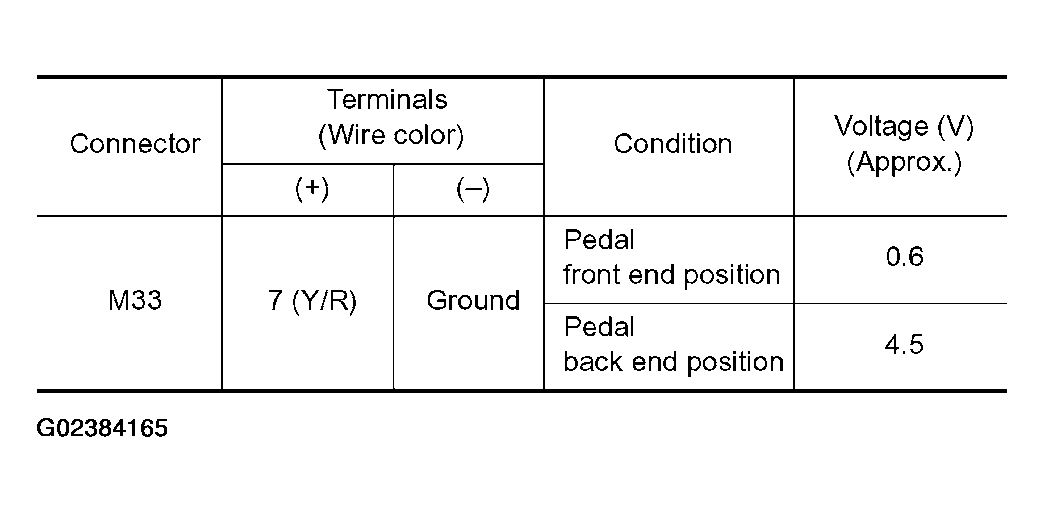

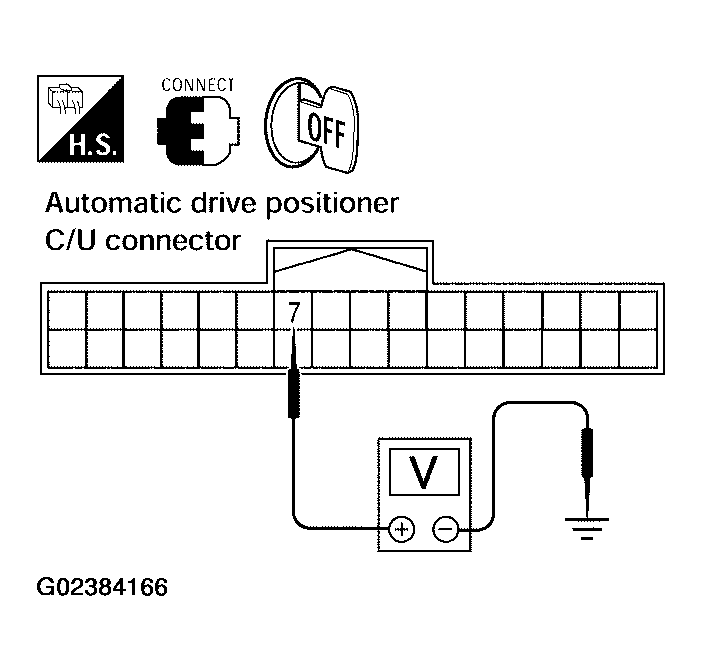

- Check voltage between automatic drive positioner connector and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Steering wheel tilt sensor circuit is OK.
- NG: GO TO 2.
- CHECK HARNESS CONTINUITY
- Disconnect automatic drive positioner control unit and steering wheel tilt sensor.

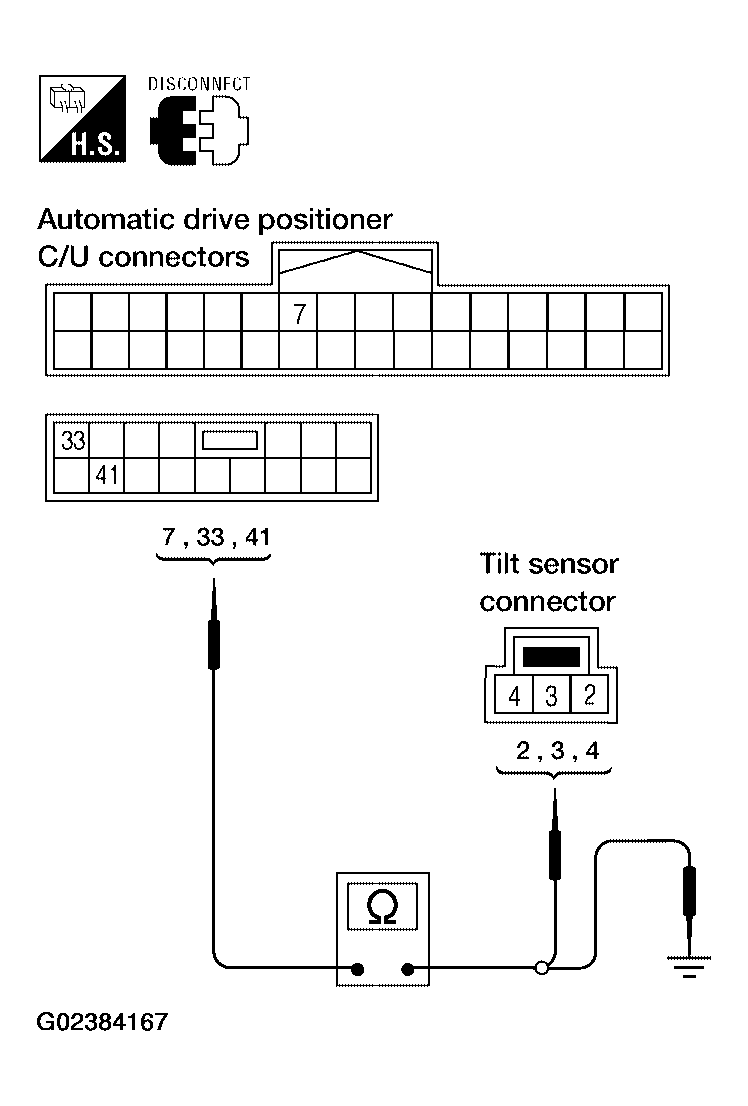

- Check continuity between automatic drive positioner connector M33, M34 terminals 7, 33, 41 and steering wheel tilt sensor connector M69 terminals 2, 3, 4.
- 7 (Y/R) - 3 (Y/BR): Continuity should exist.
- 33 (W/L) - 2 (W/L): Continuity should exist.
- 41 (W/G) - 4 (W/G): Continuity should exist.
- Check continuity between automatic drive positioner control unit connectors M33, M34 terminals 7, 33, 41 and ground.
- 7 (Y/R) - Ground: Continuity should not exist.
- 33(W/L) - Ground: Continuity should not exist.
- 41(W/G) - Ground: Continuity should not exist.
OK or NG
- OK: Replace steering wheel tilt motor. Refer to "TILT MOTOR AND TILT SENSOR ".
- NG: Repair or replace harness.
