Reclining Motor LH Circuit Inspection
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK SEAT RECLINING MECHANISM
Check the following.
- Operation malfunction caused by an interference with the center pillar or center console
- Operation malfunction and interference with other parts by poor installation
OK or NG
- OK: GO TO 2.
- NG: Repair or replace the malfunctioning part and check again.
- CHECK FUNCTION
With CONSULT-II

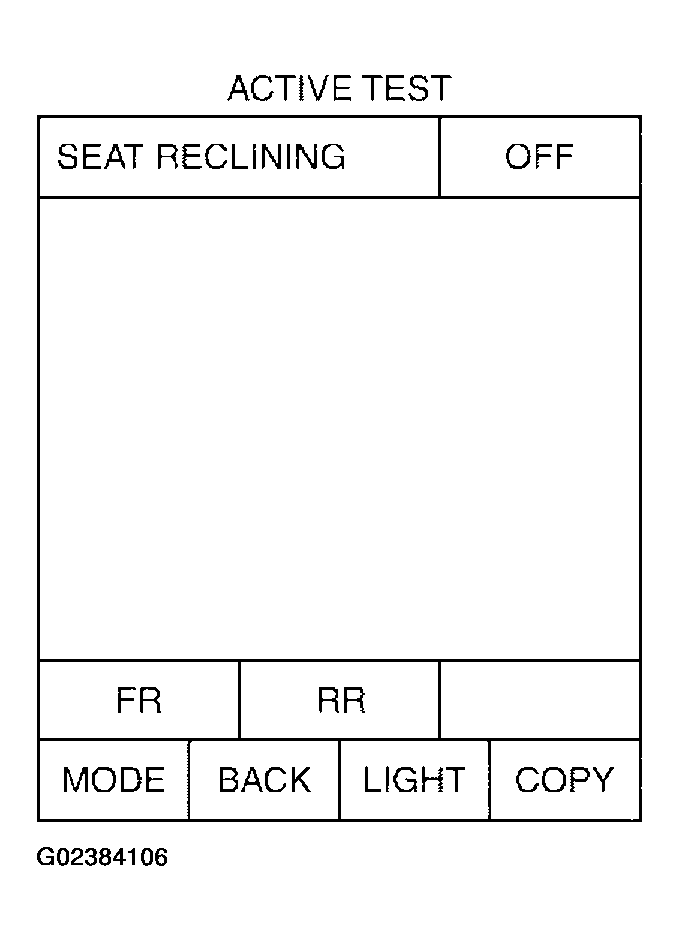

Check operation with "SEAT RECLINING" in ACTIVE TEST.
SEAT RECLINING TEST DESCRIPTIONTest item Description SEAT RECLINING The reclining motor LH is activated by receiving the drive signal. Without CONSULT-II
GO TO 3.
OK or NG
- OK: Reclining motor LH circuit is OK.
- NG: GO TO 3.
- CHECK RECLINING MOTOR CIRCUIT HARNESS CONTINUITY
- Turn ignition switch OFF.
- Disconnect driver seat control unit and reclining motor LH.

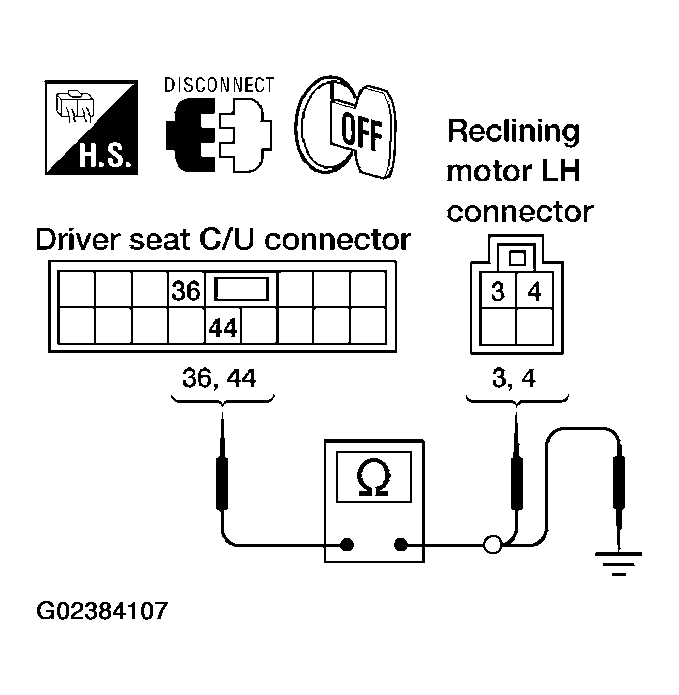

- Check continuity between driver seat control unit connector P3 terminals 36, 44 and reclining motor LH connector P5 terminals 3, 4.
- 36 (Y/G) - 4 (Y/G): Continuity should exist.
- 44 (Y/R) - 3 (Y/R): Continuity should exist.
- Check continuity between driver seat control unit connector P3 terminals 36, 44 and ground.
- 36 (Y/G) - Ground: Continuity should not exist.
- 44 (Y/R) - Ground: Continuity should not exist.
OK or NG
- OK: GO TO 4.
- NG: Repair or replace harness.
- CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL
- Connect the driver seat control unit and reclining motor LH.

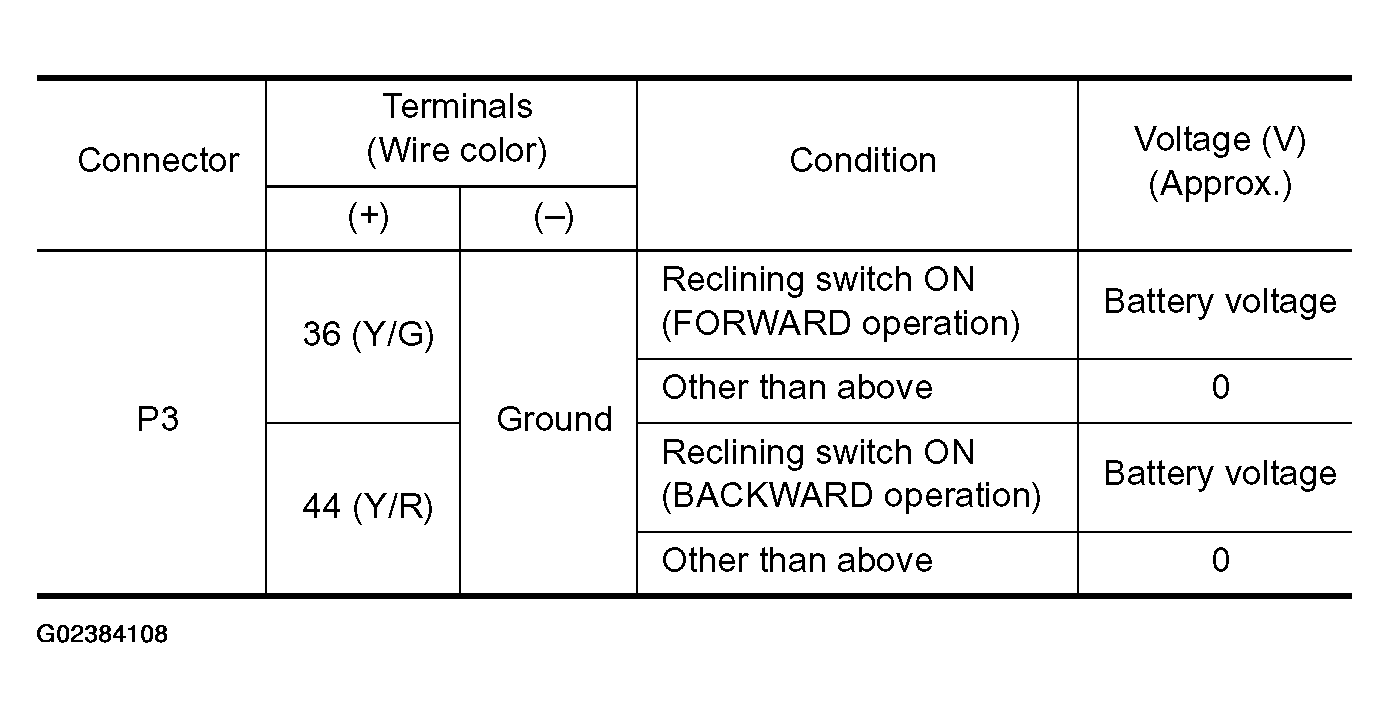

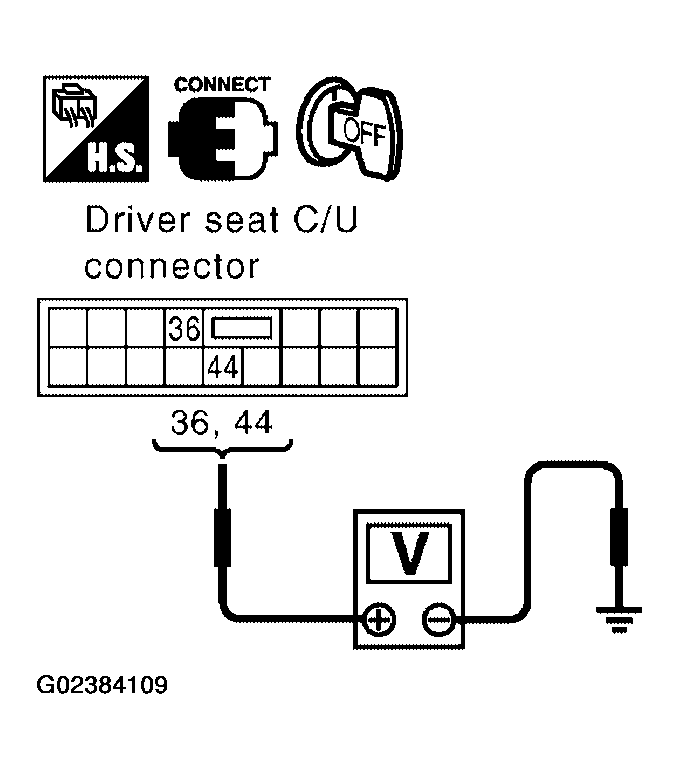

- Check voltage between driver seat control unit connector and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace reclining motor LH.
- NG: Replace driver seat control unit.
