Power Seat Switch Ground Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER SEAT SWITCH GROUND CIRCUIT
Check continuity between power seat switch LH connector P8 terminal 3 and ground.
- 3 (B) - Ground: Continuity should exist.
OK or NG
- OK: Check the condition of the harness and connector.
- NG: Repair or replace harness

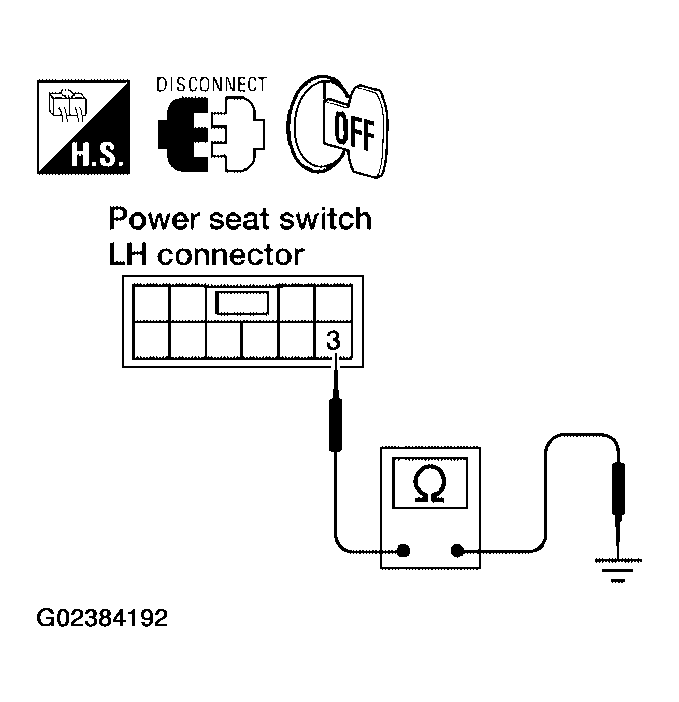

Fig 1: Checking Continuity Between Power Seat Switch LH Connector P8 Terminal 3 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
