Pedal Adjusting Sensor Circuit Inspection
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK FUNCTION
With CONSULT-II

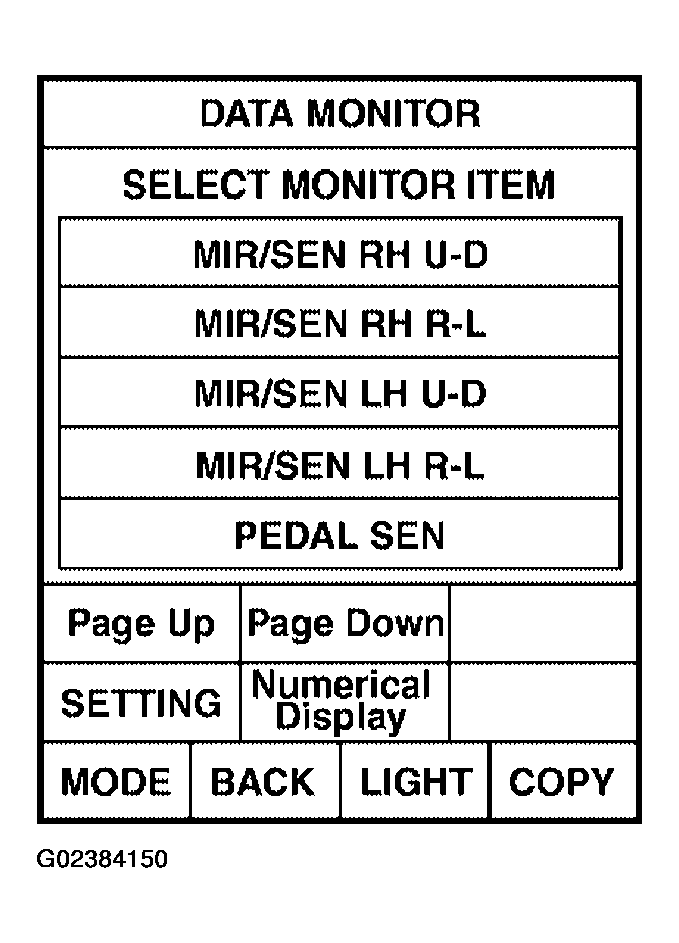

Operate the pedal adjusting switch with "PEDAL SEN" on the DATA MONITOR to make sure the voltage changes.
PEDAL ADJUSTING SENSOR OPERATION REFERENCEMonitor item [OPERATION or UNIT] Contents PEDAL SEN "V" The pedal adjusting position (voltage) judged from the pedal adjust sensor signal is displayed. Without CONSULT-II
- Turn ignition switch OFF.

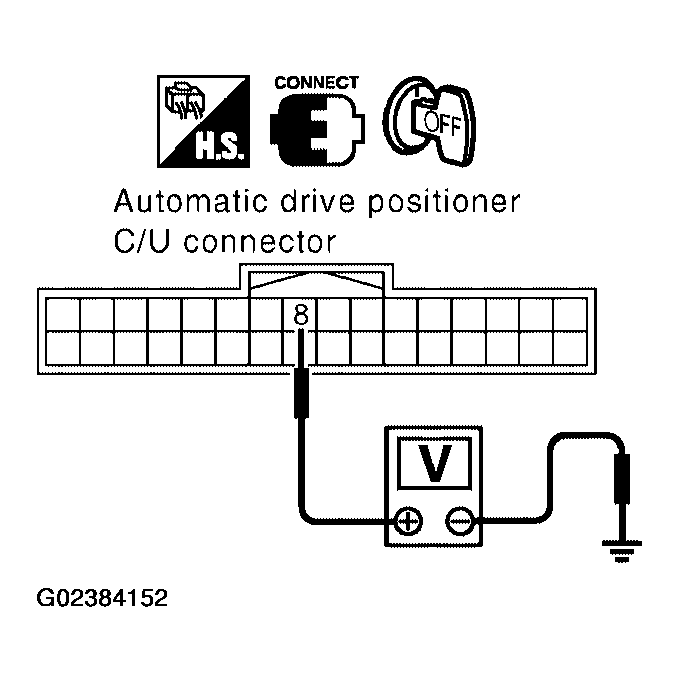

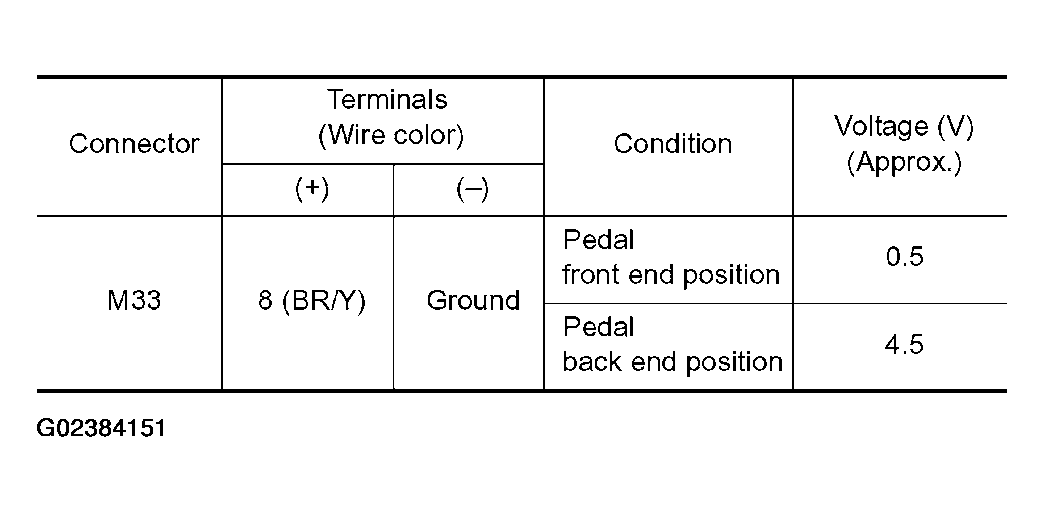

- Check voltage between automatic drive positioner control unit connector and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Pedal adjusting sensor circuit is OK.
- NG: GO TO 2.
- CHECK PEDAL ADJUSTING SENSOR CIRCUIT HARNESS CONTINUITY

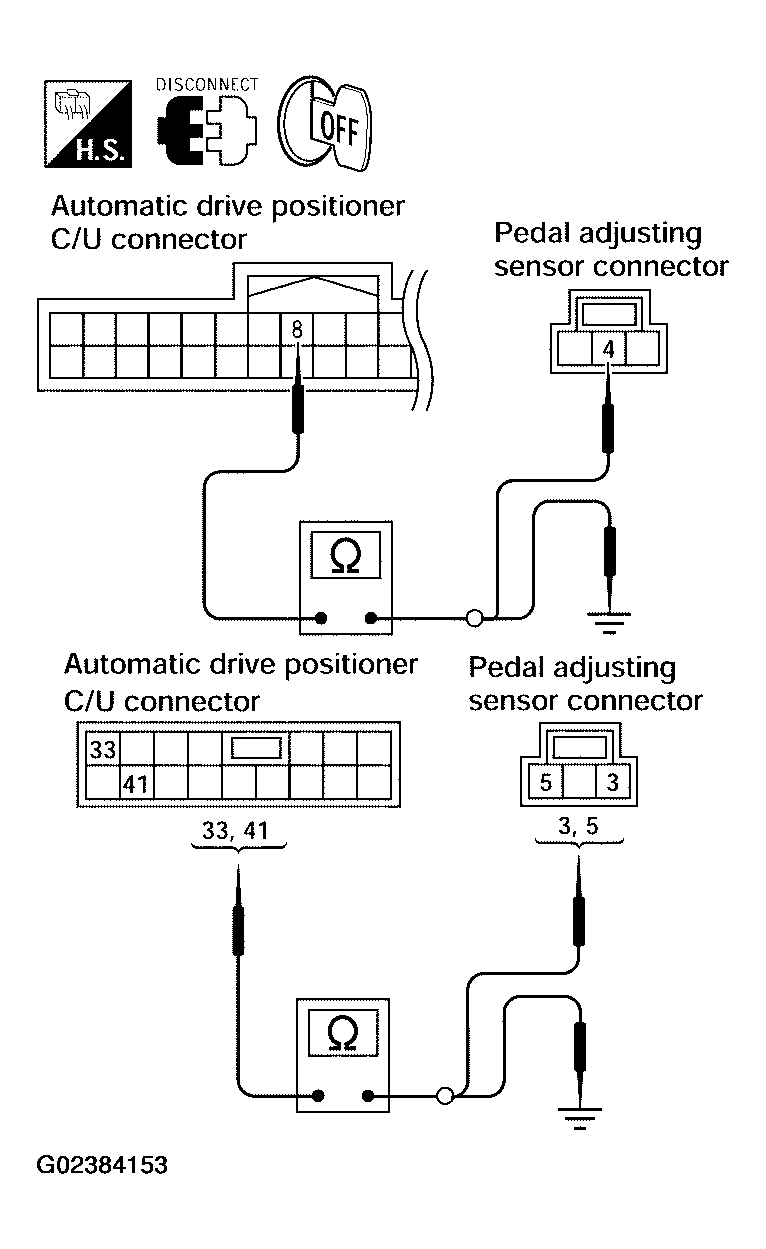

- Disconnect automatic drive positioner control unit and pedal adjusting sensor.
- Check continuity between automatic drive positioner connector M33, M34 terminals 8, 33, 41 and pedal adjusting sensor connector E110 terminals 3, 4, 5.
- 8 (BR/Y) - 4 (BR/Y): Continuity should exist.
- 33 (W/L) - 3 (W/L): Continuity should exist.
- 41 (W/G) - 5 (W/G): Continuity should exist.
- Check continuity between automatic drive positioner control unit connector M33, M34 terminals 8, 33, 41 and ground.
- 8 (BR/Y) - Ground: Continuity should not exist.
- 33 (W/L) - Ground: Continuity should not exist.
- 41 (W/G) - Ground: Continuity should not exist.
OK or NG
- OK: Replace pedal adjusting motor.
- NG: Repair or replace harness.
