Mirror Motor RH Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR MIRROR RH MECHANISM

    Check the following items.

    Operation malfunction caused by a foreign object caught in door mirror face edge.

    OK or NG

    • OK: GO TO 2.
    • NG: Repair or replace the malfunctioning parts, and check the symptom again.
  2. CHECK FUNCTION

    With CONSULT-II

    Check the operation with "MIRROR MOTOR RH" in the ACTIVE TEST.

    MIRROR MOTOR RH TEST DESCRIPTION

    Test item Description
    MIRROR MOTOR RH The mirror motor RH moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.

    Without CONSULT-II

    GO TO 3.

    OK or NG

    • OK: Mirror motor RH circuit is OK.
    • NG: GO TO 3.

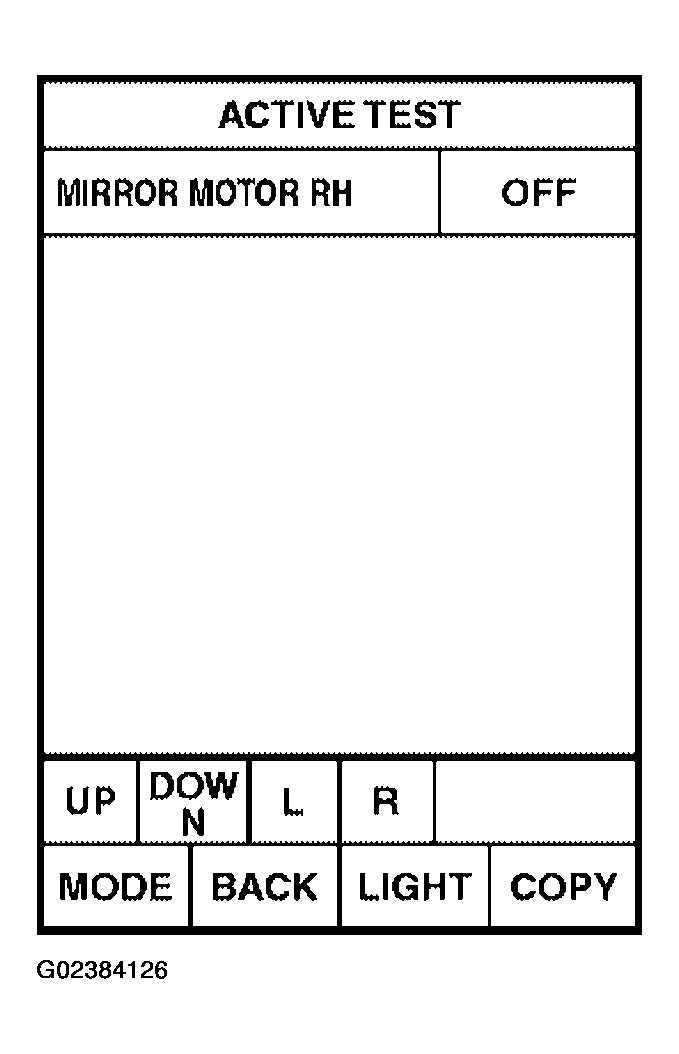

    Fig 1: CONSULT-II - Identifying "MIRROR MOTOR RH" In The ACTIVE TEST
    G02384126Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK DOOR MIRROR RH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror RH.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 14, 15, 30 and door mirror RH connector D107 terminals 1,2,3.
      • 14 (GR/R) -1 (GR/R): Continuity should exist.
      • 15 (V/R) - 2 (V/R): Continuity should exist.
      • 30 (Y) - 3 (Y): Continuity should exist.
    4. Check continuity between automatic drive positioner control unit connector M33 terminal 14, 15, 30 and ground.
      • 14 (GR/R) - Ground: Continuity should not exist.
      • 15 (V/R) - Ground: Continuity should not exist.
      • 30 (Y) - Ground: Continuity should not exist.

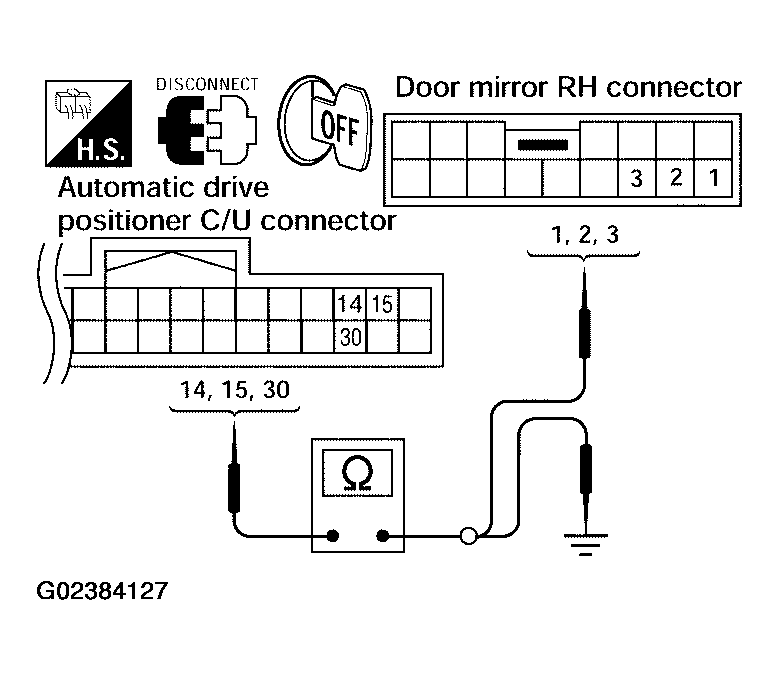

      Fig 2: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 14, 15, 30 And Door Mirror RH Connector D107 Terminals 1, 2 And 3
      G02384127Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace harness.
  4. CHECK MIRROR MOTOR SIGNAL
    1. Turn ignition switch to ACC.
    2. Check voltage between door mirror RH connector and ground.

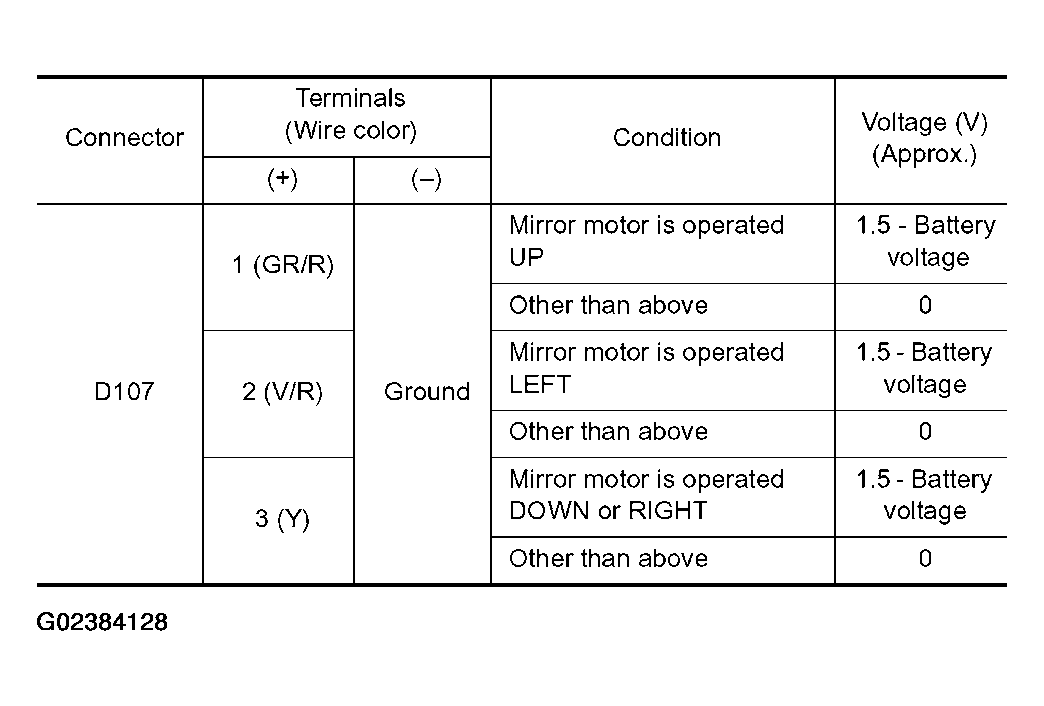

    Fig 3: Door Mirror RH Connector D107 Terminals 1, 2 And 3 Voltage Specifications
    G02384128Courtesy of NISSAN MOTOR CO., U.S.A.

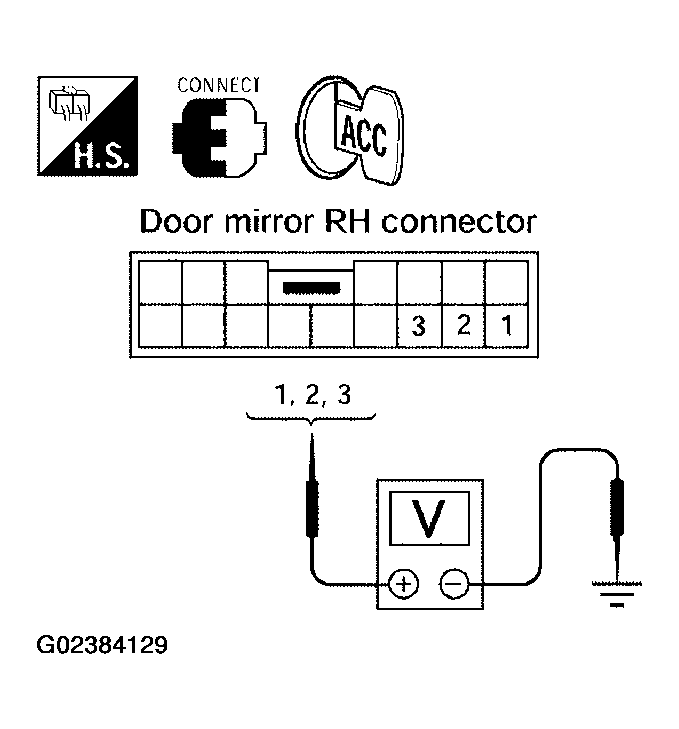

    Fig 4: Checking Voltage Between Door Mirror RH Connector And Ground
    G02384129Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Replace door mirror motor RH. Refer to "DOOR MIRROR ASSEMBLY ".
    • NG: Repair or replace harness.
