Mirror Motor LH Circuit Check
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK DOOR MIRROR LH MECHANISM
Check the following items.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
- OK: GO TO 2.
- NG: Repair or replace the malfunctioning parts, and check the symptom again.
- CHECK FUNCTION
With CONSULT-II

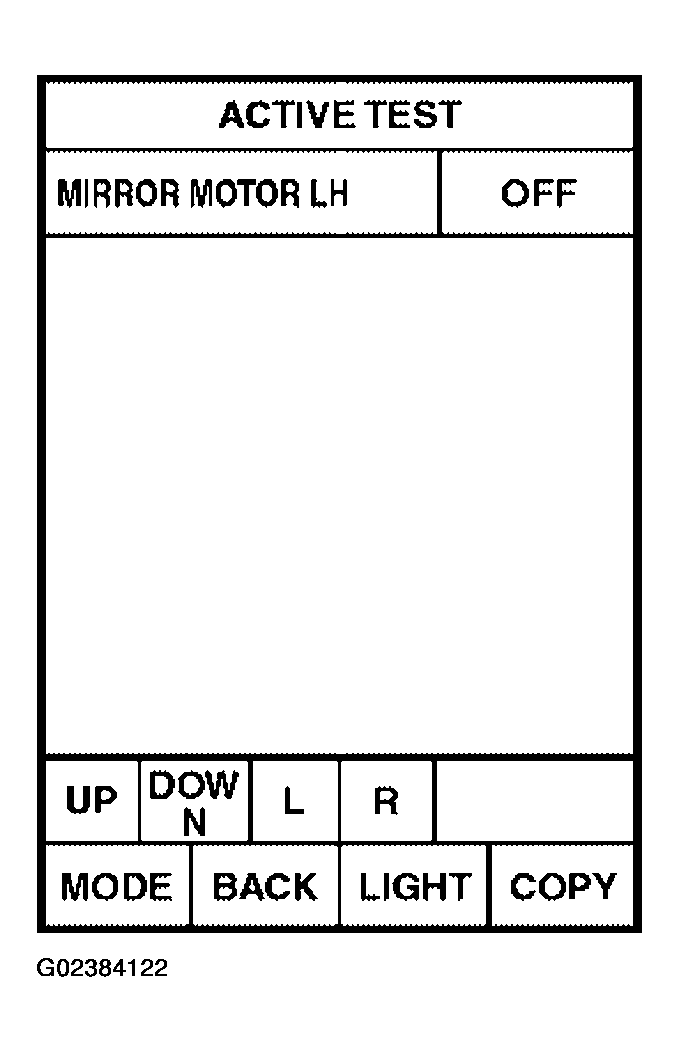

Check the operation with "MIRROR MOTOR LH" in the ACTIVE TEST.
MIRROR MOTOR LH TEST DESCRIPTIONTest item Description MIRROR MOTOR LH The mirror motor LH moves the mirror UP/DOWN and LEFT/ RIGHT by receiving the drive signal. Without CONSULT-II
GO TO 3.
OK or NG
- OK: Mirror motor LH circuit is OK.
- NG: GO TO 3.
- CHECK DOOR MIRROR MOTOR LH CIRCUIT HARNESS CONTINUITY
- Turn ignition switch OFF.
- Disconnect automatic drive positioner control unit and door mirror LH.

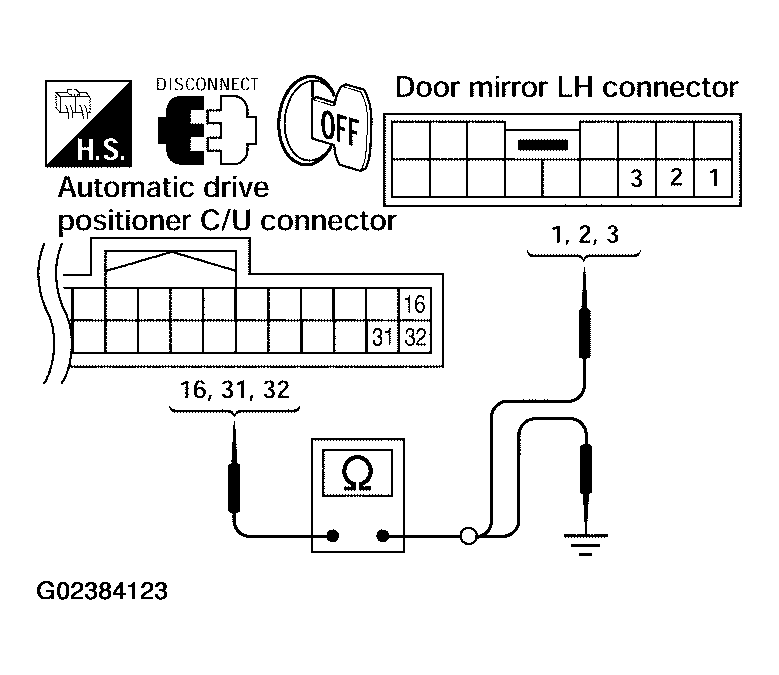

- Check continuity between automatic drive positioner control unit connector M33 terminals 16, 31, 32 and door mirror LH connector D4 terminals 1, 2, 3.
- 16 (O) - 3 (O): Continuity should exist.
- 31 (R) -1 (R): Continuity should exist.
- 32 (BR) - 2 (BR): Continuity should exist.
- Check continuity between automatic drive positioner control unit connector M41 terminal 16, 31, 32 and ground.
- 16 (O) - Ground: Continuity should not exist.
- 31 (R) - Ground: Continuity should not exist.
- 32 (BR) - Ground: Continuity should not exist.
OK or NG
- OK: GO TO 4.
- NG: Repair or replace harness.
- CHECK MIRROR MOTOR SIGNAL
- Turn ignition switch to ACC.

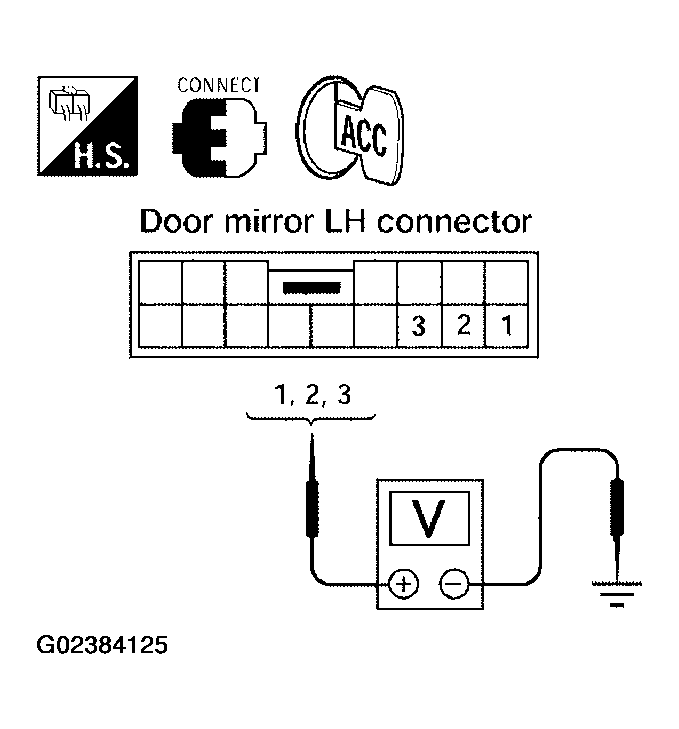

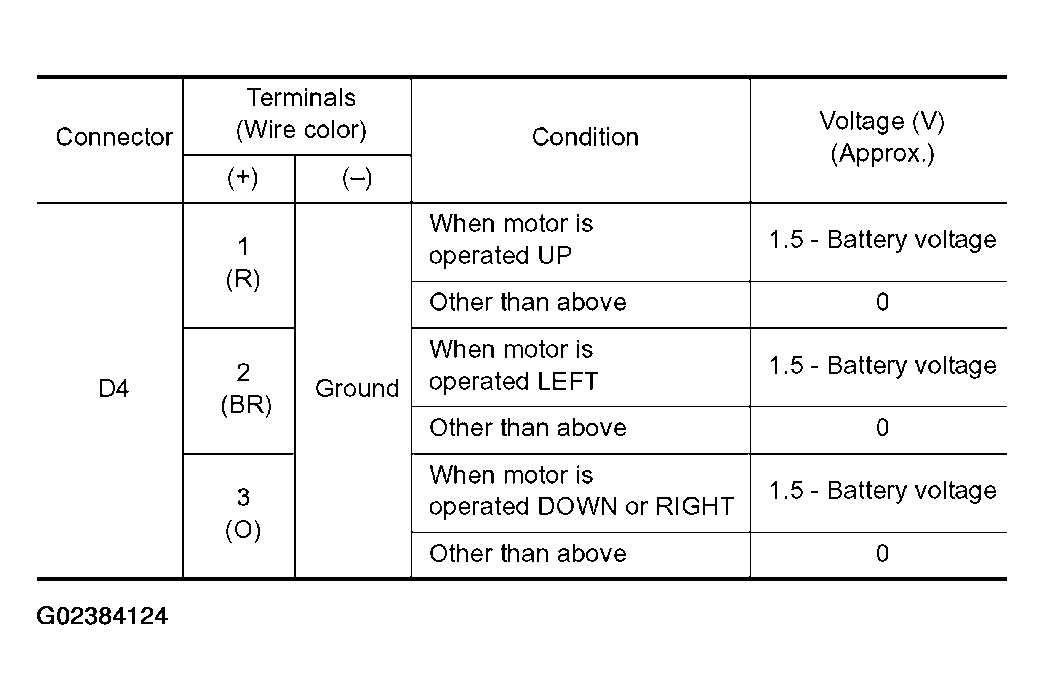

- Check voltage between door mirror LH connector and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace door mirror LH. Refer to "DOOR MIRROR ASSEMBLY ".
- NG: Repair or replace harness.
