Front Door Switch LH Circuit Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

Touch "BCM" with "DOOR SW-DR" on the DATA MONITOR, check ON/OFF operation when the front door is open and closed.

FRONT DOOR SWITCH LH OPERATION REFERENCE

Monitor item [OPERATION or UNIT]		Contents
DOOR SW DR	"ON/OFF"	Door open (ON)/door closed (OFF) status judged from the front door switch is displayed.
Refer to "DATA MONITOR "

Without CONSULT-II

GO TO 2.

OK or NG

OK: Front door switch LH circuit is OK.
NG: GO TO 2.

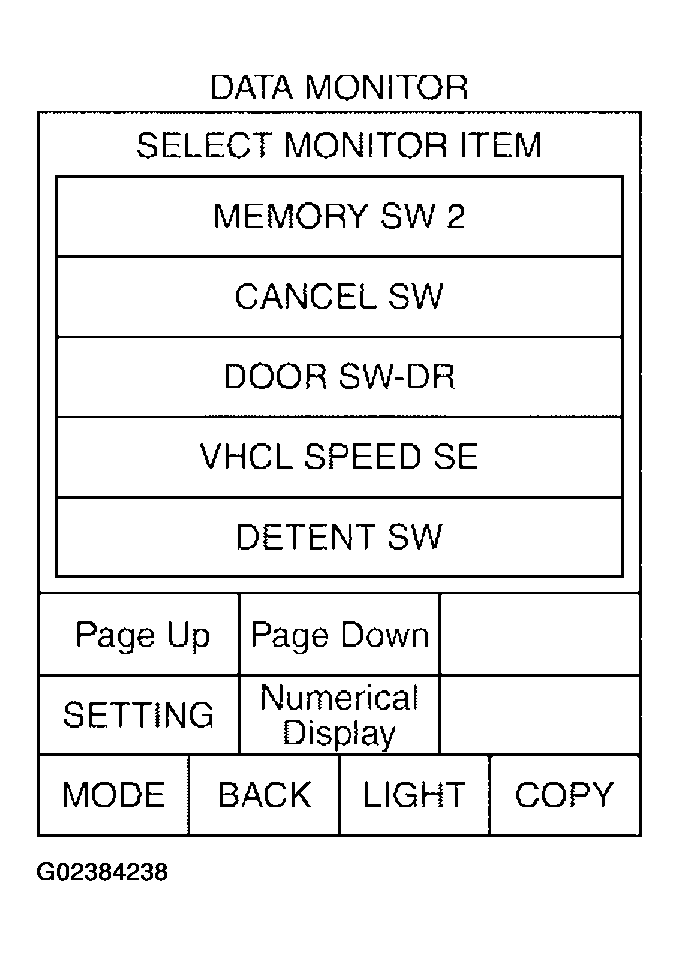

Fig 1: CONSULT-II - Identifying "DOOR SW-DR" On DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK FRONT DOOR SWITCH LH
1. Turn ignition switch OFF.
2. Disconnect front door switch LH.
3. Check continuity between front door switch LH terminal 2 and ground.

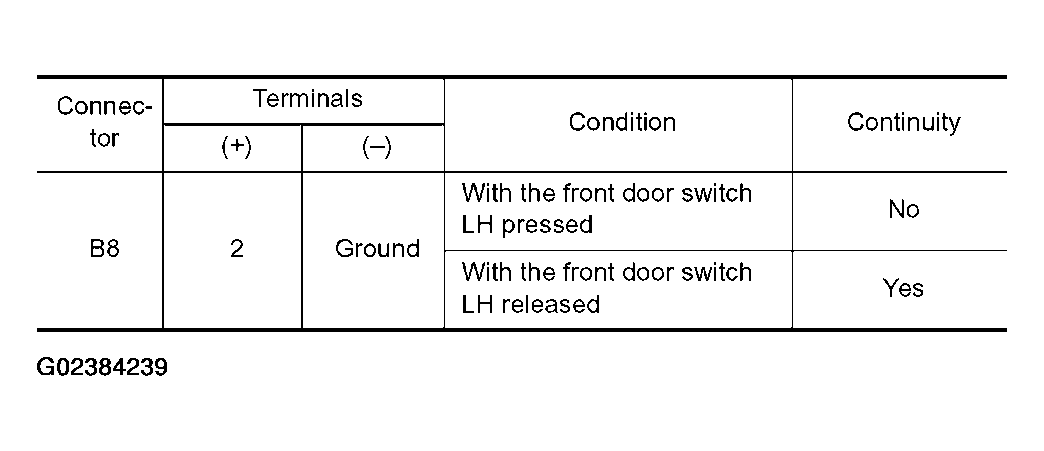

Fig 2: Front Door Switch LH Connector B8 Terminal 2 And Ground Continuity Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

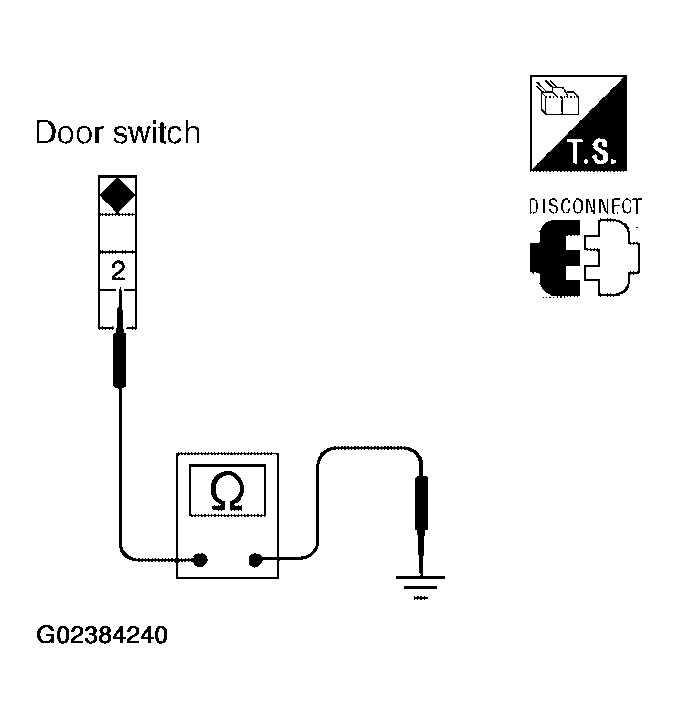

Fig 3: Checking Continuity Between Front Door Switch LH Terminal 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: GO TO 3.
- NG: Replace front door switch LH.
CHECK HARNESS CONTINUITY
1. Disconnect BCM.
2. Check continuity between BCM connector M19 terminal 47 and front door switch LH connector B8 terminal 2.
  - 47 (SB) - 2 (SB): Continuity should exist.
3. Check continuity between BCM connector M19 terminal 47 and ground.
  - 47 (SB) - Ground: Continuity should not exist.
OK or NG
- OK: Front door switch LH circuit is OK.
- NG: Repair or replace harness.

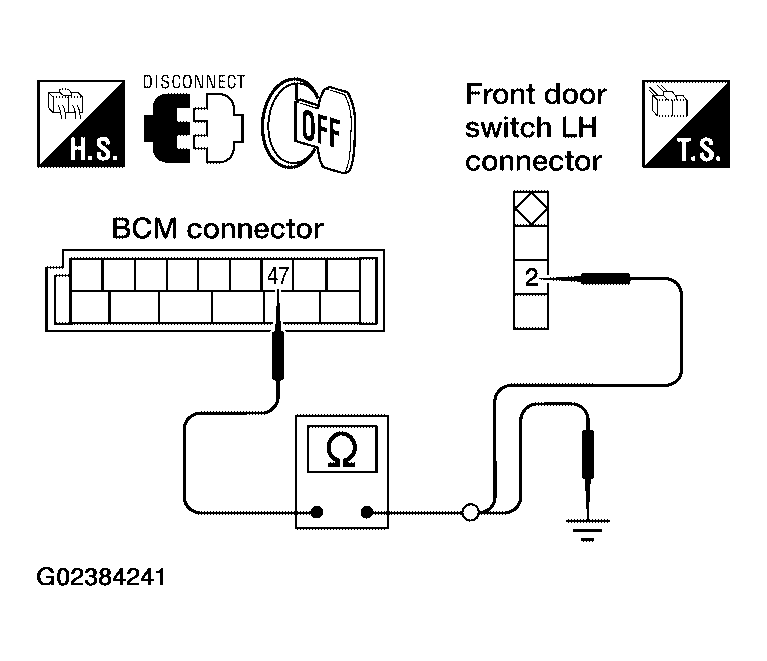

Fig 4: Checking Continuity Between BCM Connector M19 Terminal 47 And Front Door Switch LH Connector B8 Terminal 2
Courtesy of NISSAN MOTOR CO., U.S.A.
