Door Mirror Remote Control Switch Ground Circuit Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror remote control switch.
3. Check continuity between door mirror remote control switch connector D10 terminal 13 and ground.
  - 13 (B) - Ground: Continuity should exist.
OK or NG
- OK: GO TO 2.
- NG: Repair or replace harness.

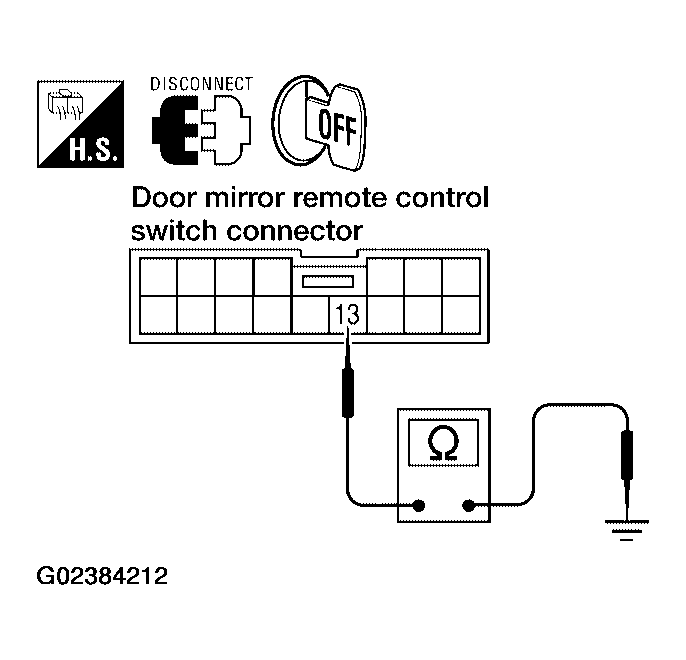

Fig 1: Checking Continuity Between Door Mirror Remote Control Switch Connector D10 Terminal 13 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)
Check continuity between door mirror remote control switch as follows.

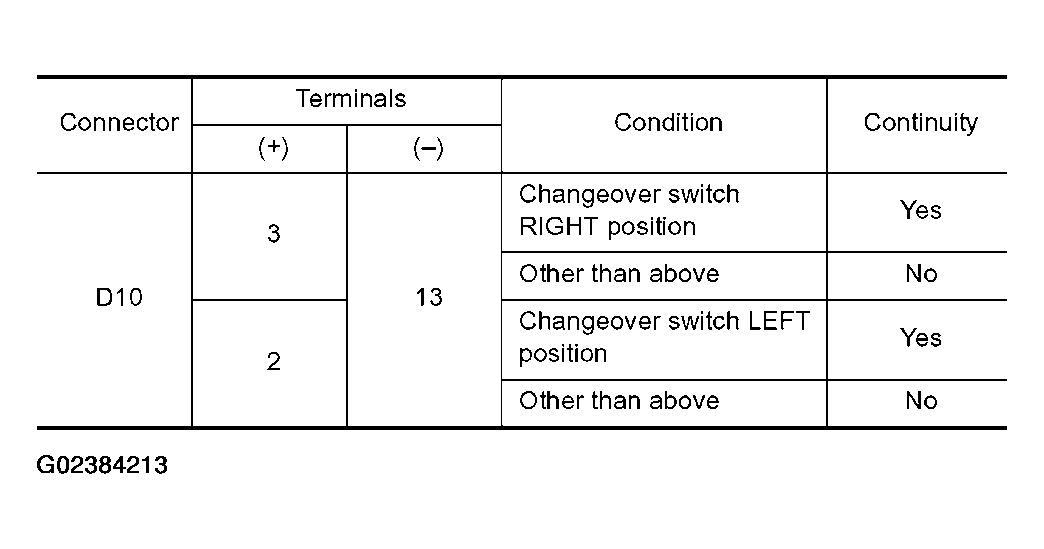

Fig 2: Door Mirror Remote Control Switch Connector D10 Terminals 3, 2 And 13 Continuity Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

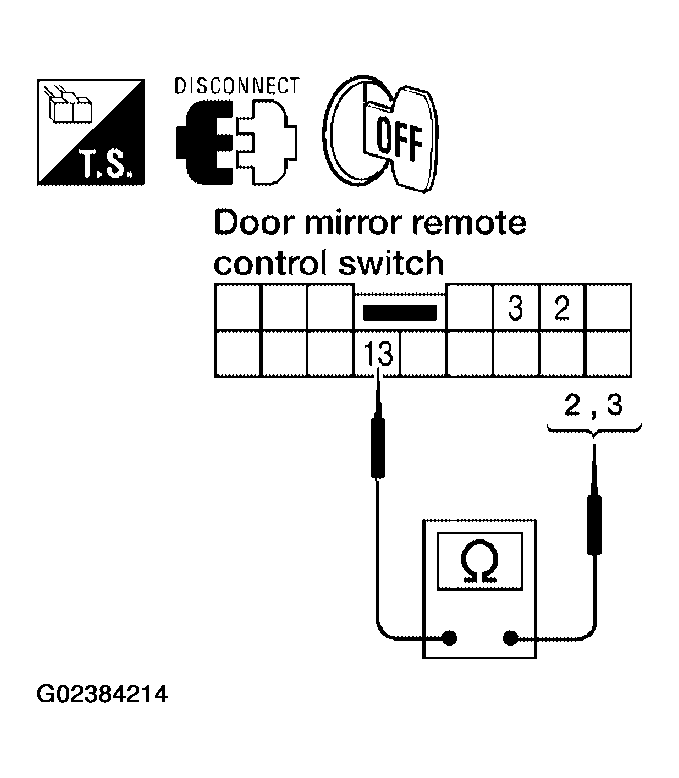

Fig 3: Checking Continuity Between Door Mirror Remote Control Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Check the condition of the harness and the connector.
- NG: Replace door mirror remote control switch.
