Door Mirror Remote Control Switch (Mirror Switch) Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL

With CONSULT-II

Check the operation on "MIR CON SW-UP/DN" and "MIR CON SW-RH/LH" in the DATA MONITOR.

DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) OPERATION REFERENCE

Monitor item [OPERATION or UNIT]		Contents
MIR CON SW-UP	"ON/OFF"	ON/OFF status judged from the door mirror switch (UP) signal is displayed.
MIR CON SW-DN	"ON/OFF"	ON/OFF status judged from the door mirror switch (DOWN) signal is displayed.
MIR CON SW-RH	"ON/OFF"	ON/OFF status judged from the door mirror switch (RIGHT) signal is displayed.
MIR CON SW-LH	"ON/OFF"	ON/OFF status judged from the door mirror switch (LEFT) signal is displayed.

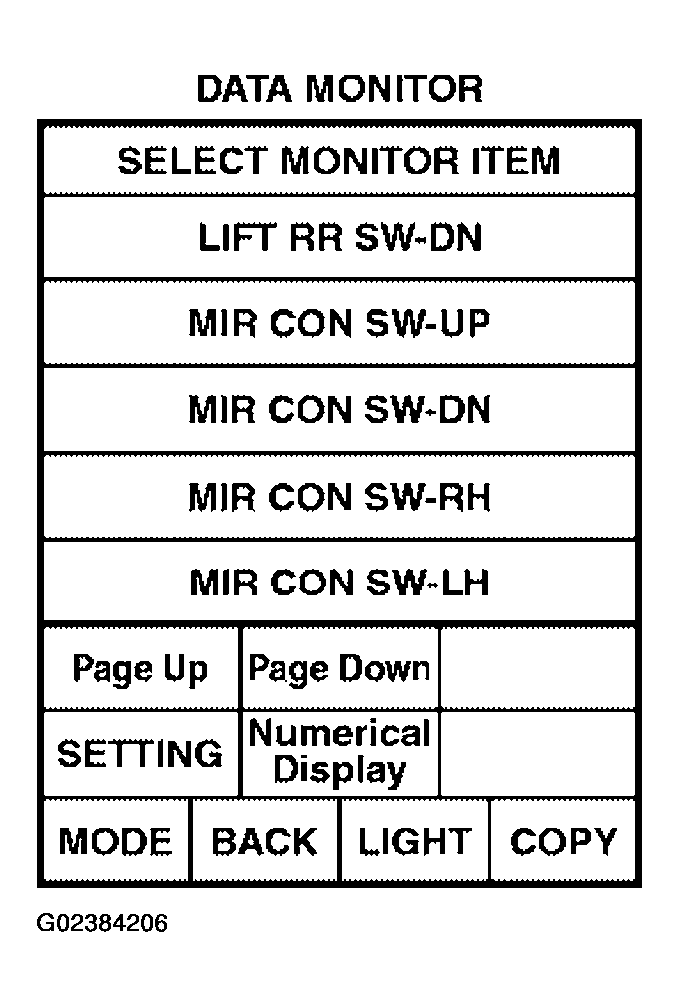

Fig 1: CONSULT-II - Identifying "MIR CON SW-UP/DN" And "MIR CON SW-RH/LH"

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch to ACC.
Check voltage between automatic drive positioner control unit connector and ground.

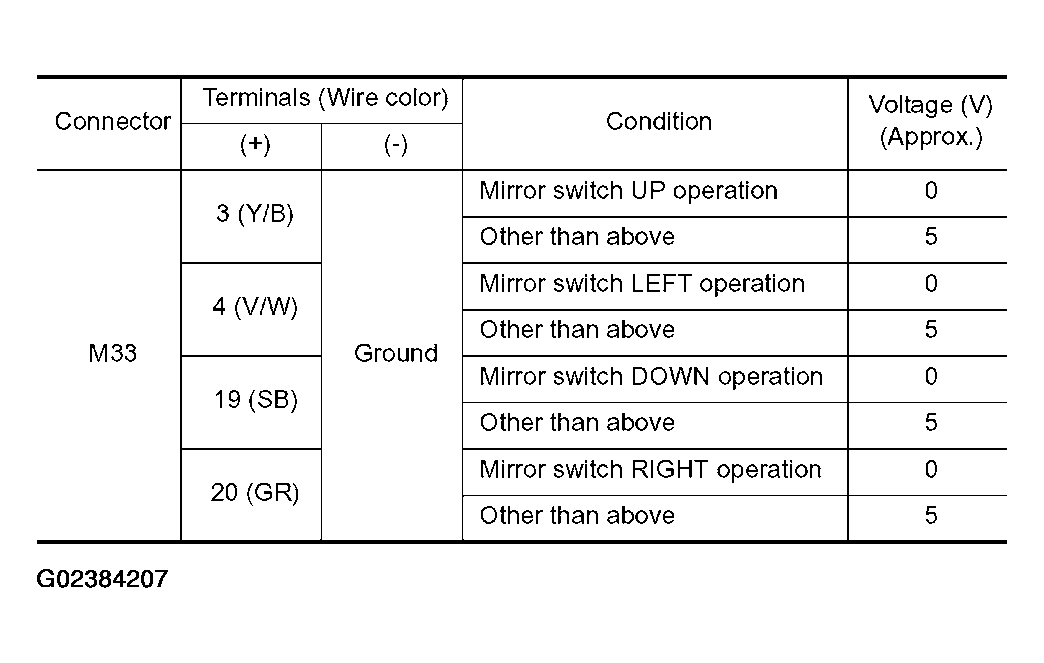

Fig 2: Automatic Drive Positioner Control Unit Connector M33 Terminals 3, 4, 19 And 20 Voltage Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

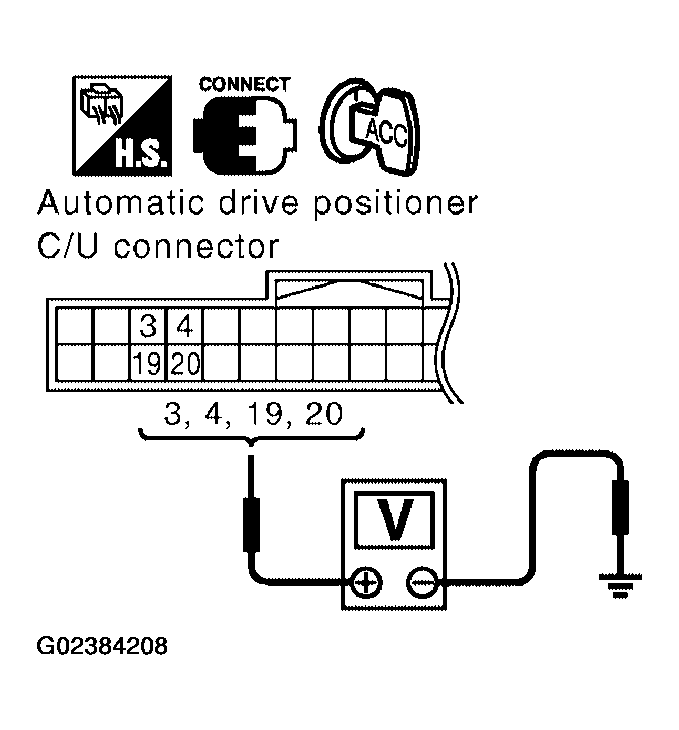

Fig 3: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Door mirror remote control switch (mirror switch) circuit is OK.
NG: GO TO 2.

CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror remote control switch.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and door mirror remote control switch connector D10 terminals 4, 5, 6, 14.
  - 3 (Y/B) - 6 (Y/B): Continuity should exist.
  - 4 (V/W) - 5 (V/W): Continuity should exist.
  - 19 (SB) - 14 (SB): Continuity should exist.
  - 20 (GR) - 4 (GR): Continuity should exist.

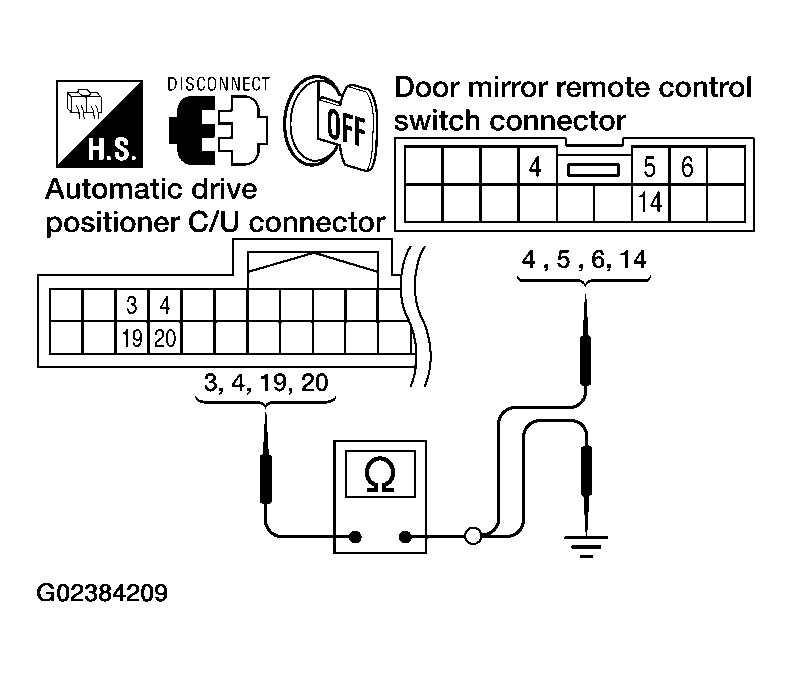

  Fig 4: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 3, 4, 19, 20 And Door Mirror Remote Control Switch Connector D10 Terminals 4, 5, 6, 14
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and ground.
  - 3 (Y/B) - Ground: Continuity should not exist.
  - 4 (V/W) - Ground: Continuity should not exist.
  - 19 (SB) - Ground: Continuity should not exist.
  - 20 (GR) - Ground: Continuity should not exist.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace harness.
CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH)
Check continuity between door mirror remote control switch as follows.

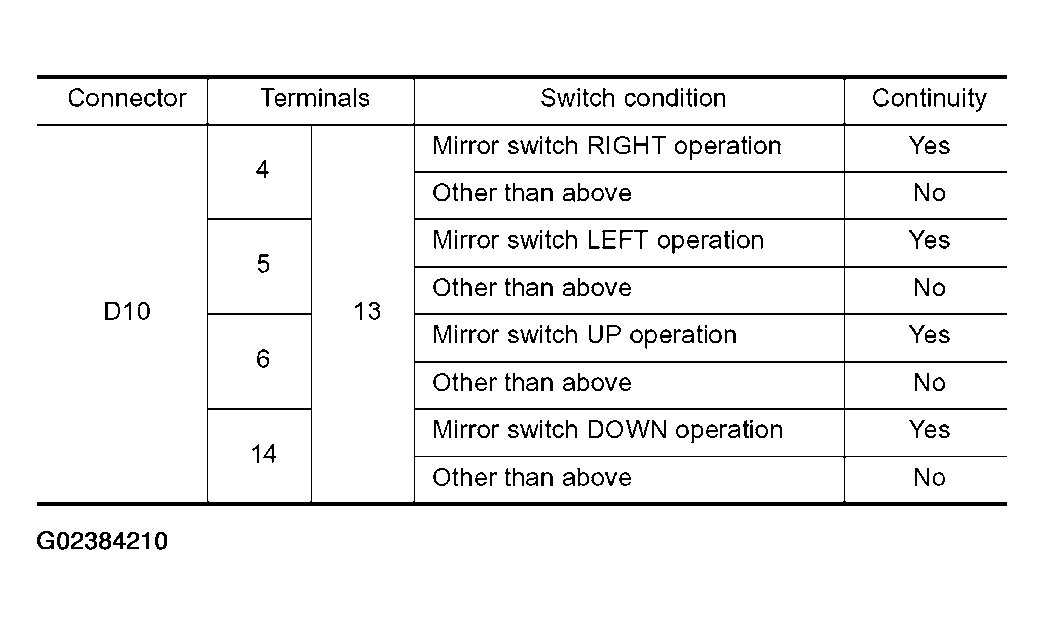

Fig 5: Door Mirror Remote Control Switch Connector D10 Terminals 4, 5, 6, 14 And 13 Continuity Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

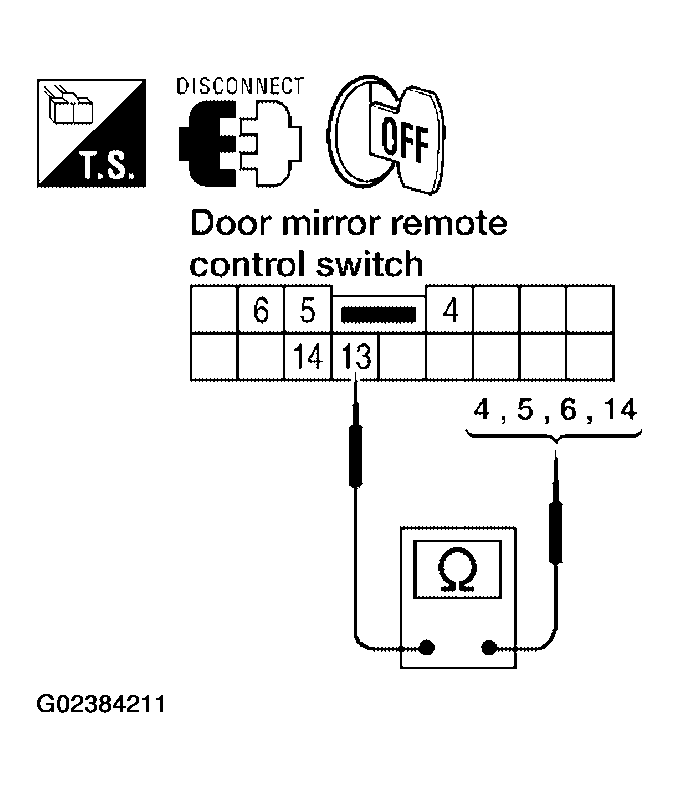

Fig 6: Checking Continuity Between Door Mirror Remote Control Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Check the condition of the harness and connector.
- NG: Replace door mirror remote control switch.
