Door Mirror Remote Control Switch (Changeover Switch) Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    Check the operation on "MIR CHNG SW-R" or "MIR CHNG SW-L" in the DATA MONITOR.

    DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH) OPERATION REFERENCE

    Monitor item [OPERATION or UNIT] Contents
    MIR CHNG S W-R "ON/OFF" ON/OFF status judged from the door mirror switch (switching to RIGHT) signal is displayed.
    MIR CHNG S W-L "ON/OFF" ON/OFF status judged from the door mirror switch (switching to LEFT) signal is displayed.

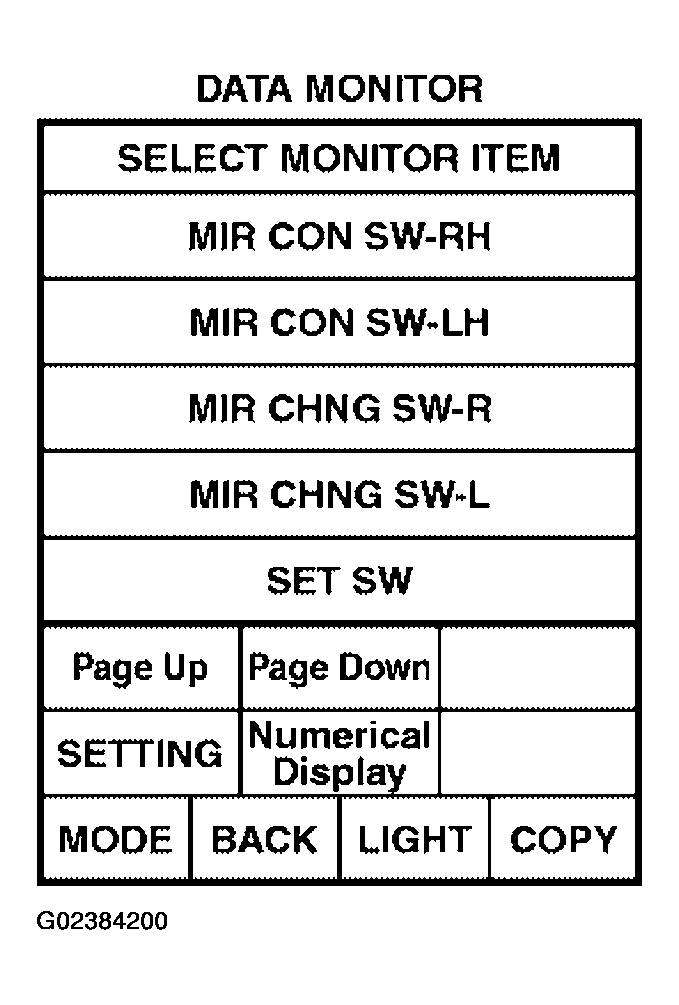

    Fig 1: CONSULT-II - Identifying "MIR CHNG SW-R" Or "MIR CHNG SW-L"
    G02384200Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch to ACC.
    2. Check voltage between automatic drive positioner control unit connector and ground.

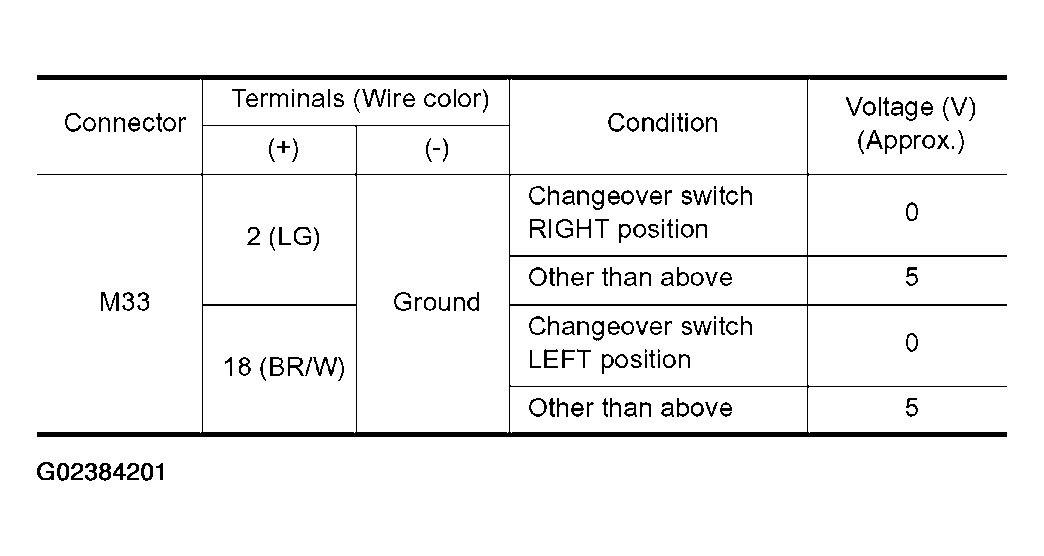

    Fig 2: Automatic Drive Positioner Control Unit Connector M33 Terminals 2 And 18 Voltage Specifications
    G02384201Courtesy of NISSAN MOTOR CO., U.S.A.

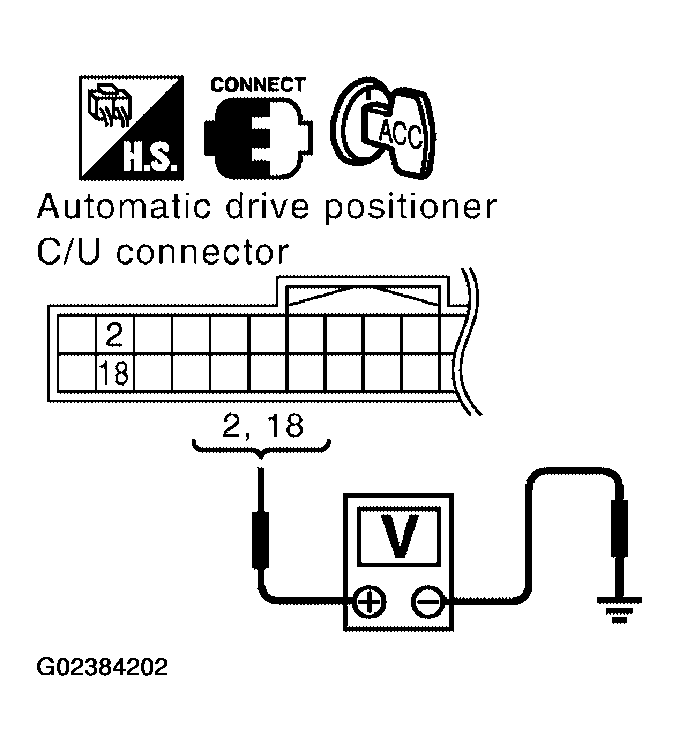

    Fig 3: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
    G02384202Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Door mirror remote control switch (changeover switch) is OK.
    • NG: GO TO 2.
  2. CHECK DOOR MIRROR REMOTE CONTROL SWITCH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror remote control switch.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and door mirror remote control switch connector D10 terminals 2, 3.
      • 2 (LG) - 2 (LG): Continuity should exist.
      • 18 (BR/W) - 3 (BR/W): Continuity should exist.
    4. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and ground.
      • 2 (LG) - Ground: Continuity should not exist.
      • 18 (BR/W) - Ground: Continuity should not exist.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair or replace harness.

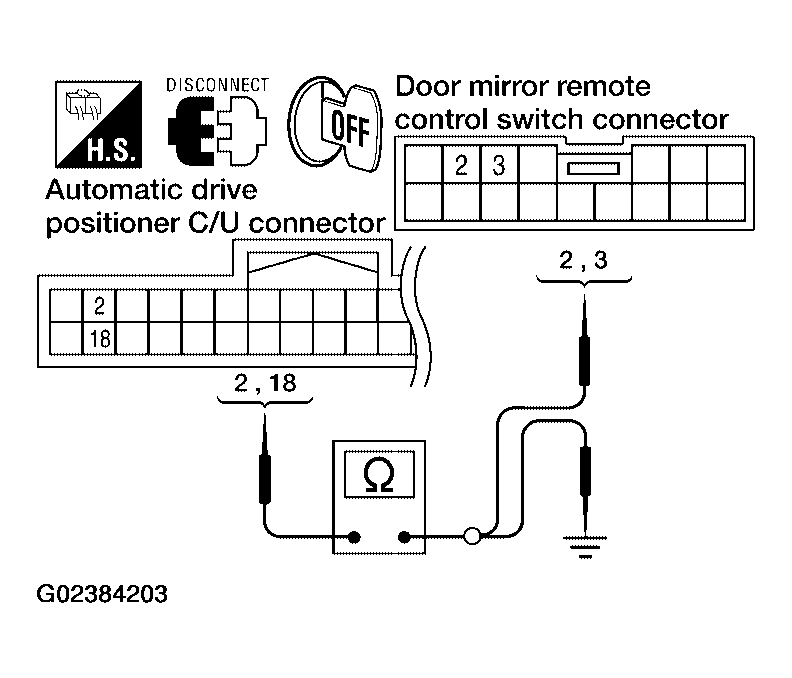

    Fig 4: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 2, 18 And Door Mirror Remote Control Switch Connector D10 Terminals 2 And 3
    G02384203Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)

    Check continuity between door mirror remote control switch as follows.

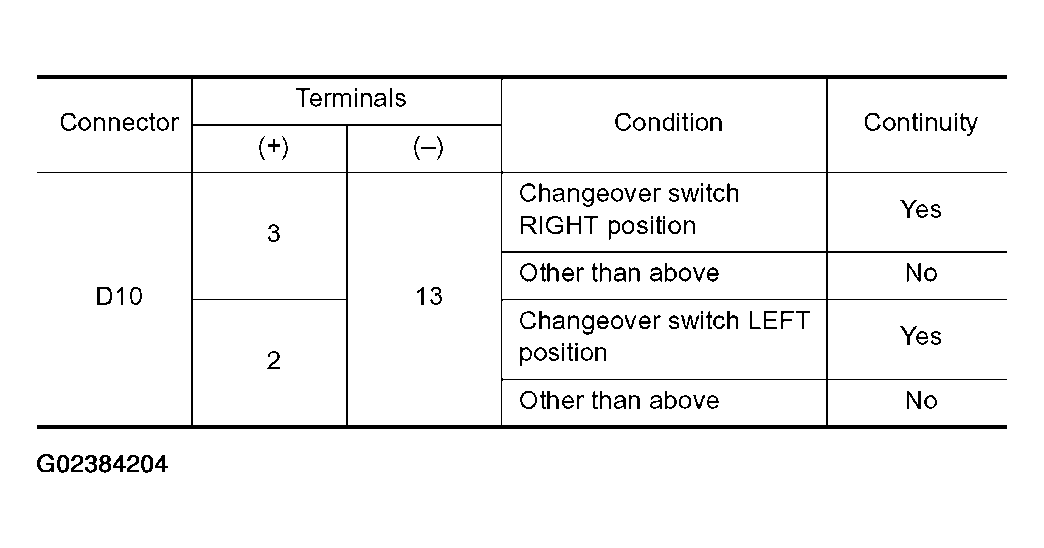

    Fig 5: Door Mirror Remote Control Switch Connector D10 Terminals 3, 2 And 13 Continuity Conditions
    G02384204Courtesy of NISSAN MOTOR CO., U.S.A.

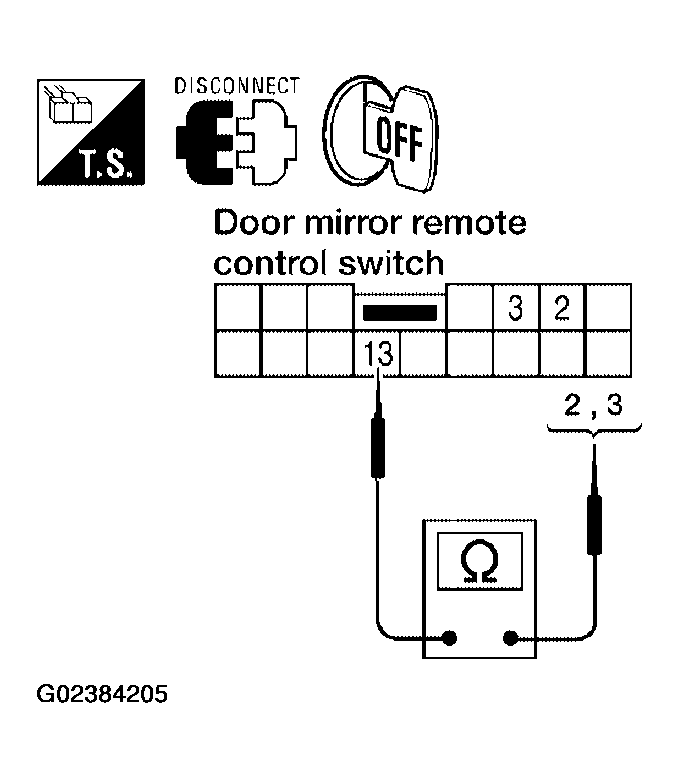

    Fig 6: Checking Continuity Between Door Mirror Remote Control Switch Connector Terminals
    G02384205Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Check the condition of the harness and the connector.
    • NG: Replace door mirror remote control switch.
