CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

SELF-DIAGNOSTIC RESULT CHECK
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect to CONSULT-II, and select "AUTO DRIVE POS." on the "SELECT DIAG SYSTEM" screen.
2. Select "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.
3. Check display content in self-diagnostic results.

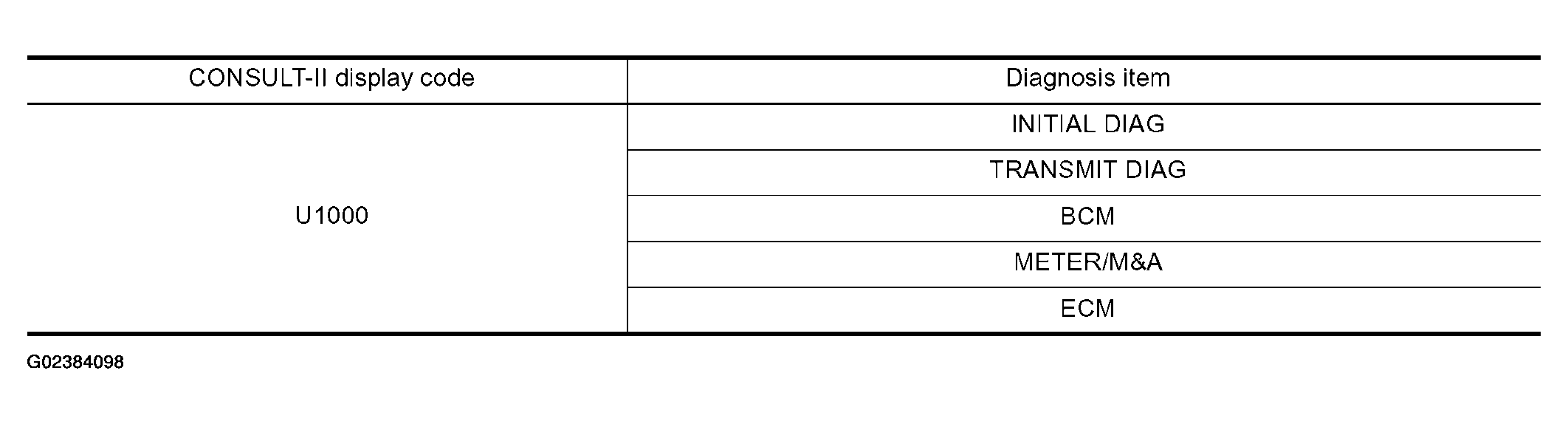

  Fig 1: Self-Diagnostic Result Check (CONSULT-II) - Reference
  Courtesy of NISSAN MOTOR CO., U.S.A.
Contents displayed

No malfunction: Inspection End.

Malfunction in CAN communication system: After printing the monitor items, go to "CAN System". Refer to "PRECAUTIONS WHEN USING CONSULT-II ".
