Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

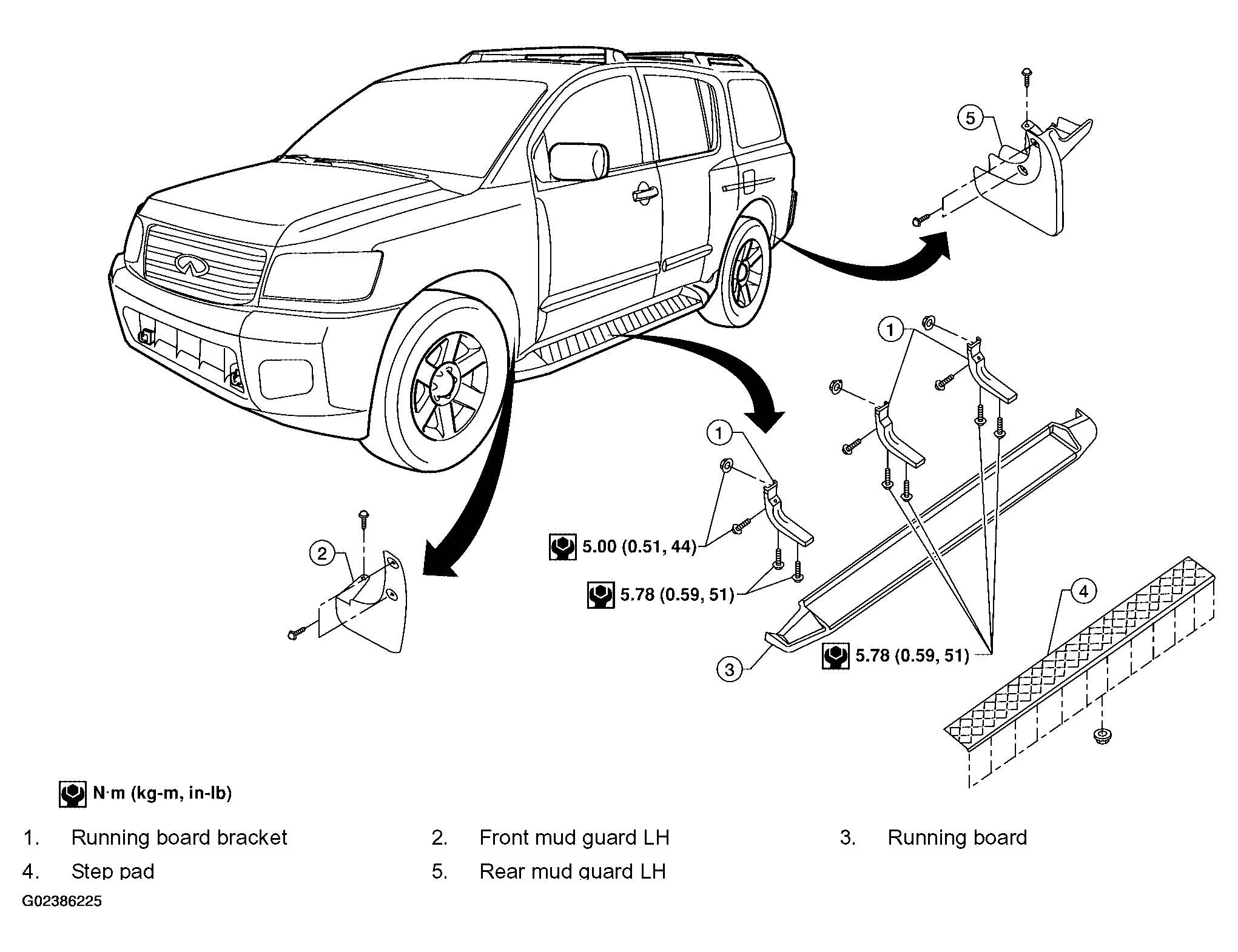

Fig 1: Exploded View Of Running Boards With Torque Specifications
G02386225Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove bolts and remove running board from running board brackets.
  2. Remove nuts and remove step pad from running board.
  3. Remove nuts and bolts and remove running board brackets.
  4. Remove screws and remove front and rear mud guards.

Installation is in the reverse order of removal.
