Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

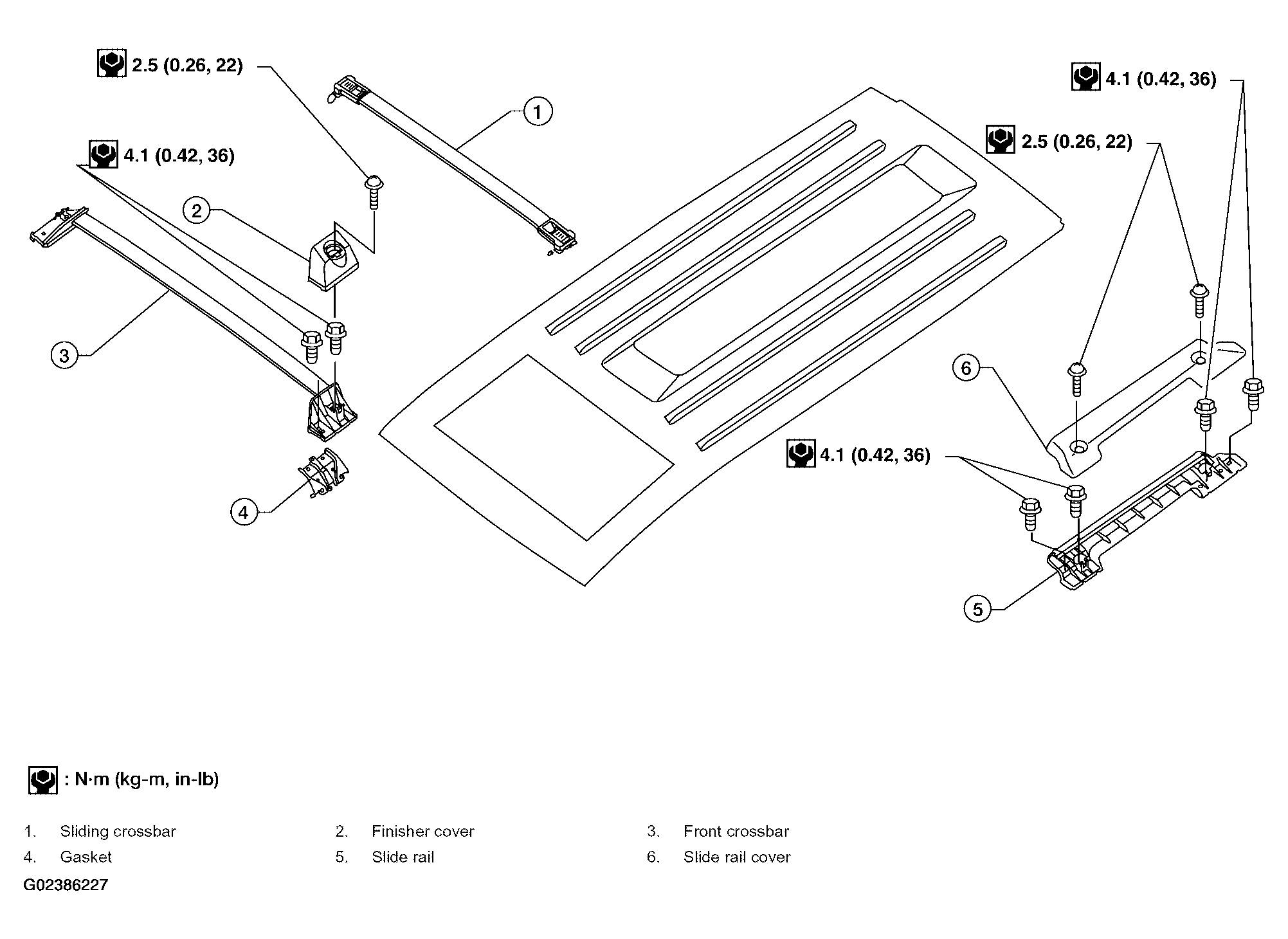

Fig 1: Exploded View Of Roof Rack With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove screws, raise tie down hooks and remove finisher covers.
Remove bolts and remove front crossbar and gasket.
Remove screws, raise tie down hooks and remove slide rail covers.
Remove sliding crossbar.
Remove bolts and remove slide rails.

Installation is in the reverse order of removal.

To install finisher covers and slide rail covers, rotate tie hooks to the 50 degrees up position and slip cover over tie down. Press down until clip is engaged. Rotate tie down hook to the down position. Install screws.
