Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

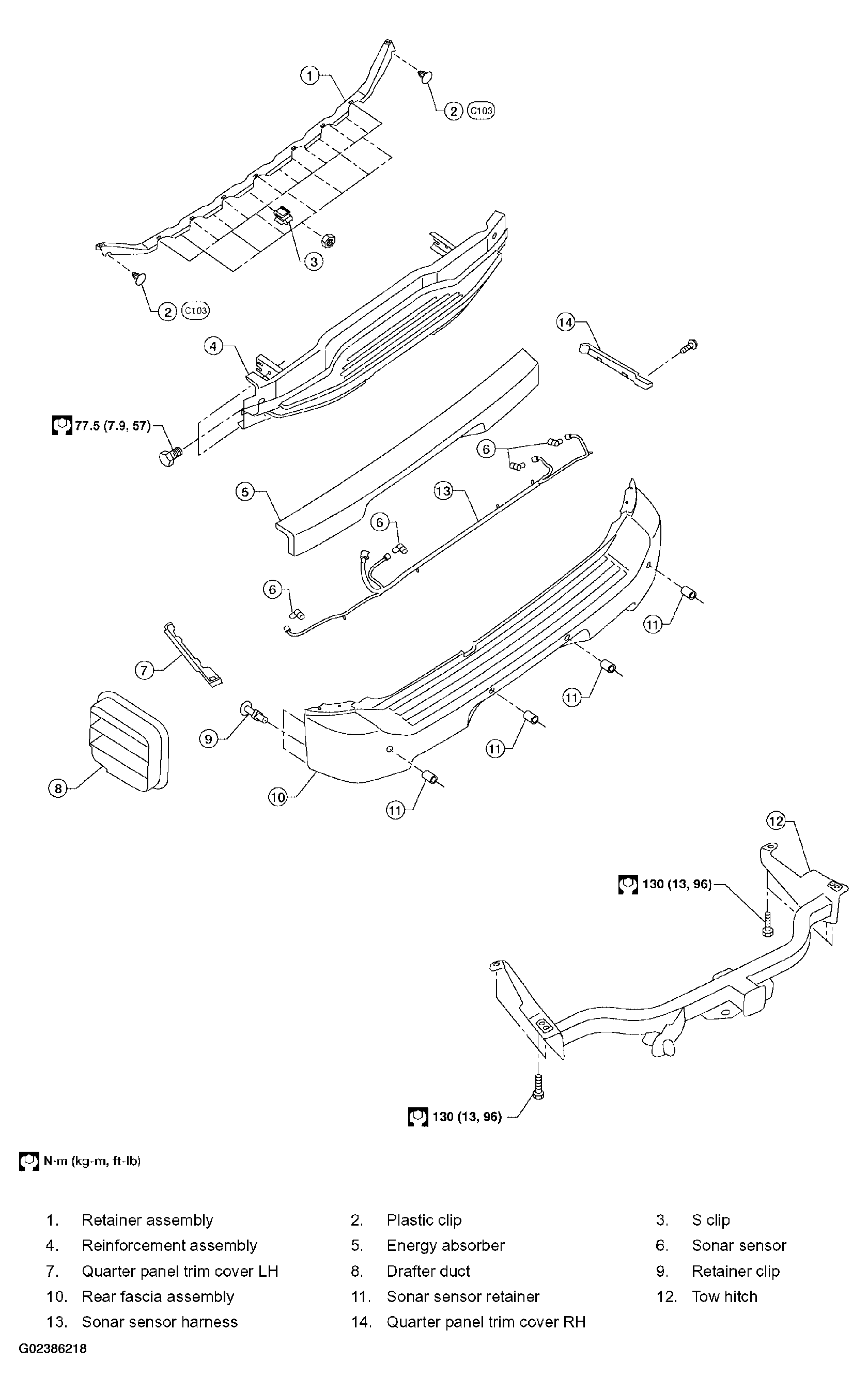

Fig 1: Exploded View Of Rear Bumper With Torque Specifications
G02386218Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove quarter panel trim covers LH and RH.
  2. Disconnect sonar sensor harness connector under rear fascia assembly.
  3. Release retainer clips on both sides of rear fascia assembly with a 1/4 turn and top S clips and remove fascia assembly.
  4. Remove energy absorber.
  5. Remove reinforcement assembly.
  6. Remove nuts and remove retainer assembly.
    • Remove S clips from retainer assembly.
  7. Disconnect sonar sensors from sonar sensor retainers.
  8. Remove sonar sensors and harness from rear fascia assembly.
    • Disconnect sonar sensors from harness.
    • Remove sonar sensor retainers from rear fascia assembly.
  9. Remove bolts on each side of tow hitch and remove tow hitch.
  10. Remove drafter duct from under LH quarter panel.

Installation is in the reverse order of removal.
