Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

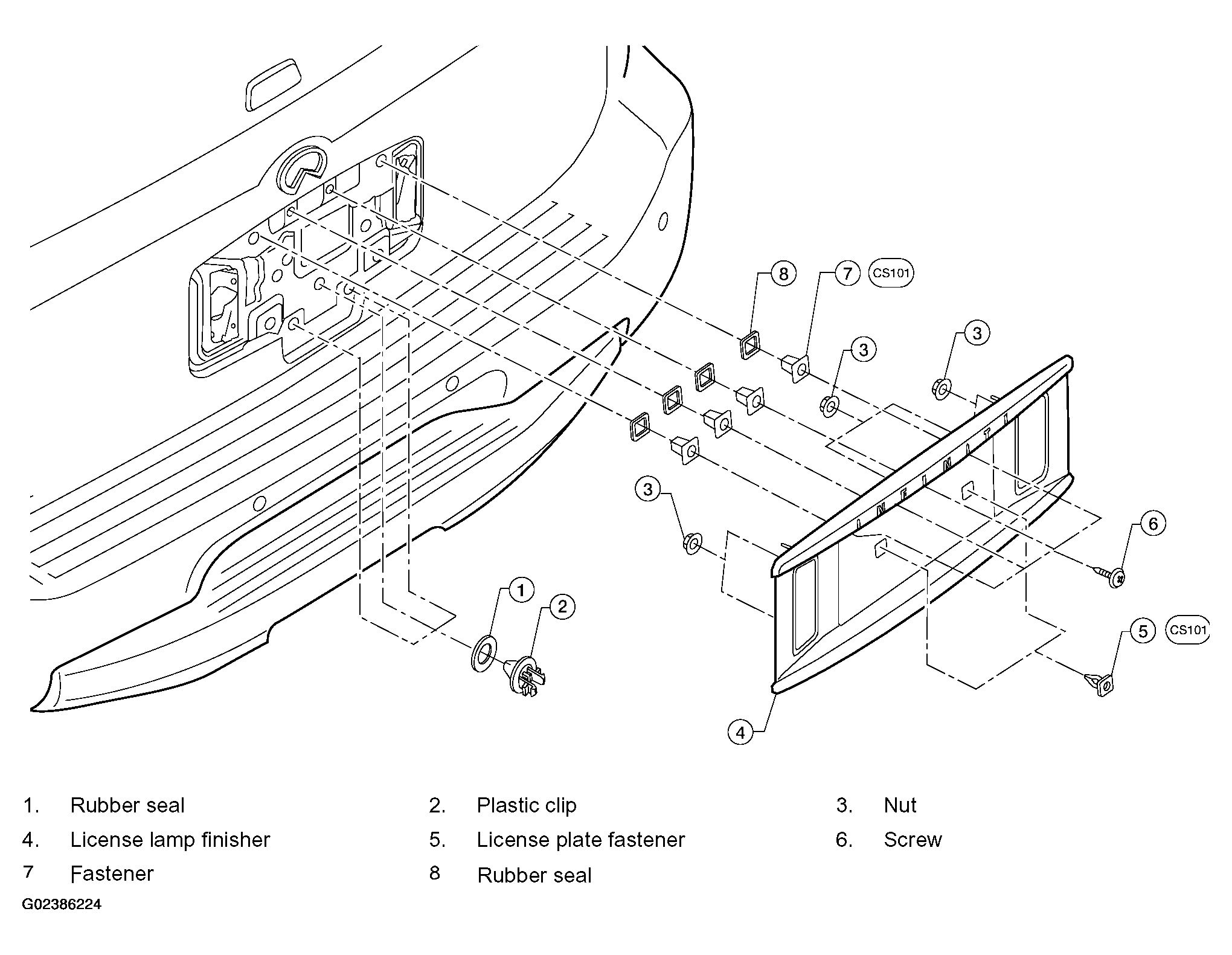

Fig 1: Exploded View Of License Lamp Finisher

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove back door trim. Refer to "BACK DOOR TRIM ".
Disconnect electrical harnesses from connectors.
Remove harnesses with bulbs from license lamps.
Remove nuts and screws from license lamp finisher.
Release clips and remove license lamp finisher.

Installation is in the reverse order of removal.
