Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

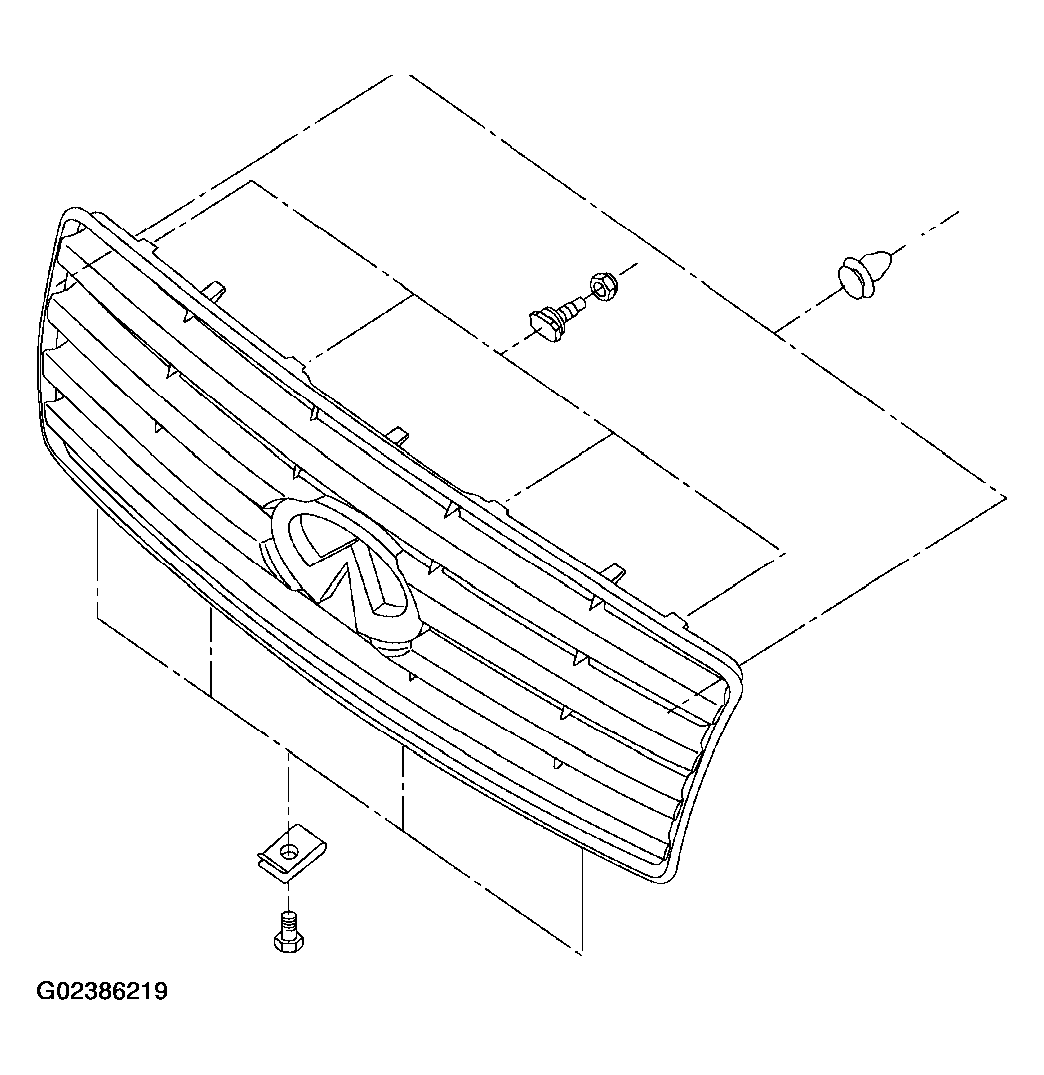

Fig 1: Exploded View Of Front Grille
G02386219Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove bolts and nuts attaching grille.
  2. Remove grille.

Installation is in the reverse order of removal.
