Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

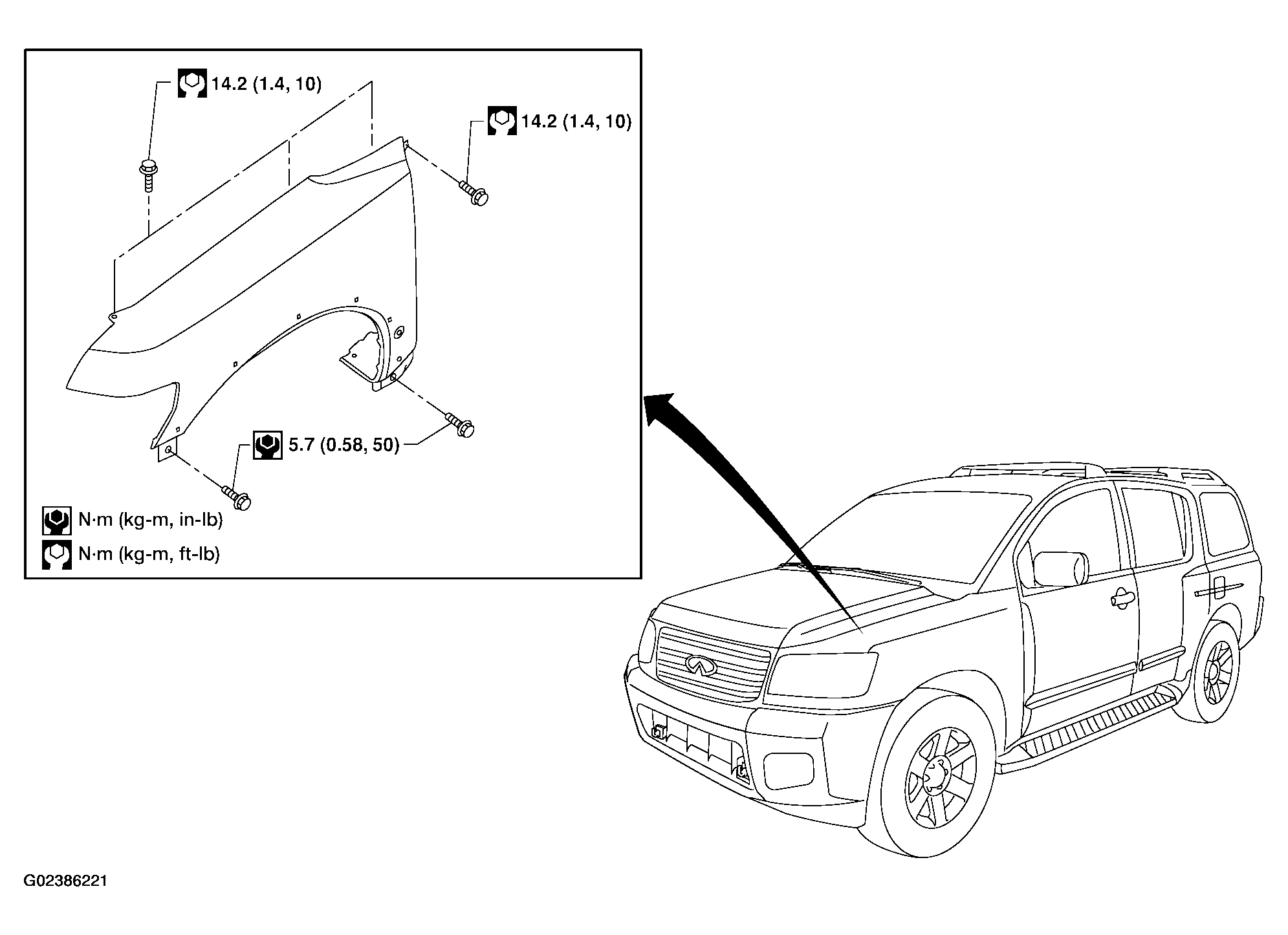

Fig 1: Exploded View Of Front Fender With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove headlamp. Refer to "REMOVAL AND INSTALLATION ".
Remove over fender. Refer to "OVER FENDER ".
Remove fender protector. Refer to "FENDER PROTECTOR ".
Remove hood stay. Refer to "HOOD ".
Remove front fender.

Installation is in the reverse order of removal.
