Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

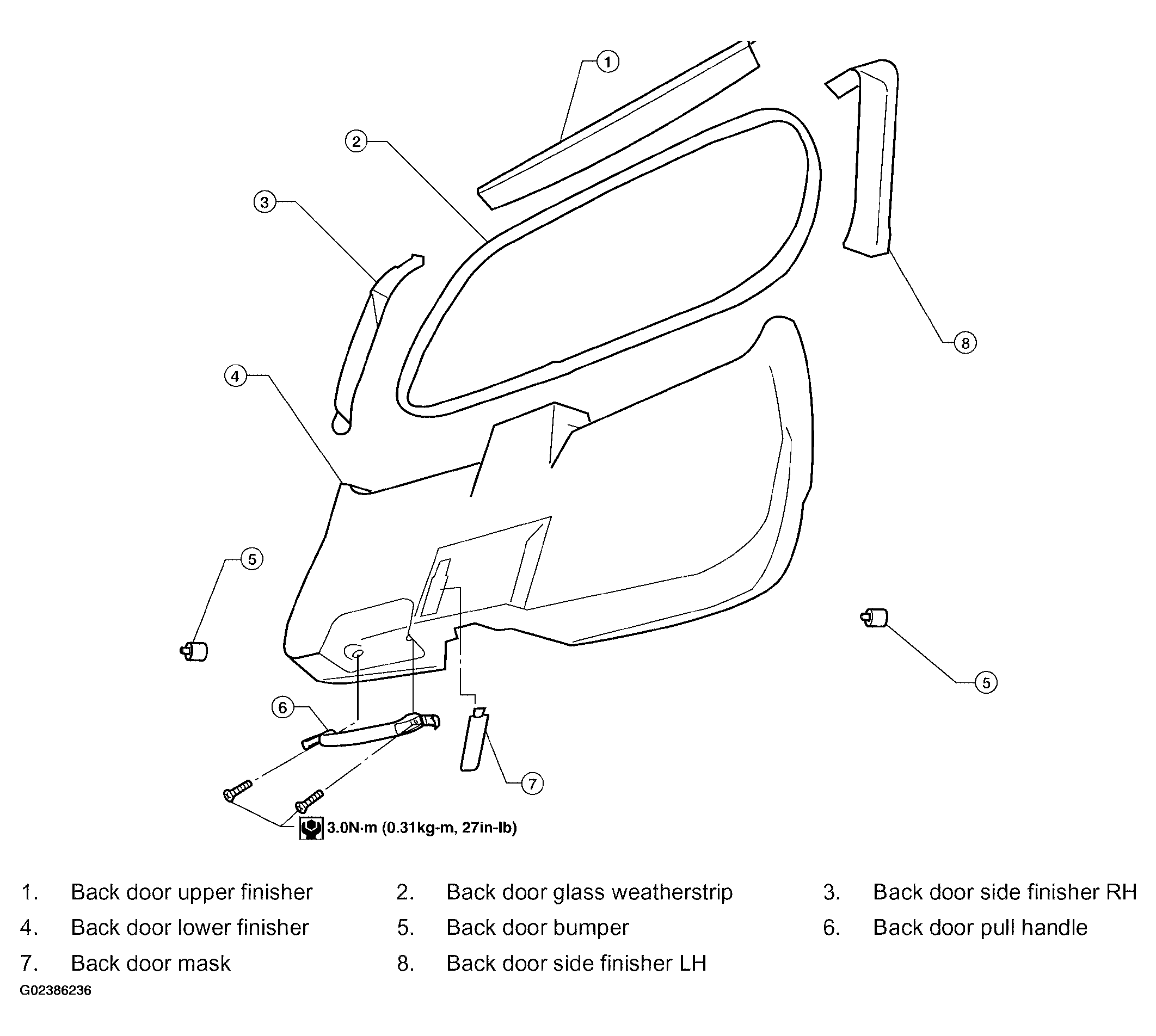

Fig 1: Exploded View Of Back Door Trim

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect door open/close link. Refer to "BACK DOOR LOCK ".
Open back door glass.
Remove inside weatherstrip around back door glass.
Remove assist handle.
Release clips and remove back door lower finisher.
Release clips and remove back door upper finisher.
Release clips and remove back door side finishers LH and RH.

Installation is in the reverse order of removal.
