Wind Deflector: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sunroof.
  2. Remove screws from the left, center, and right side wind deflector holders.
  3. Remove the wind deflector from the sunroof frame assembly.

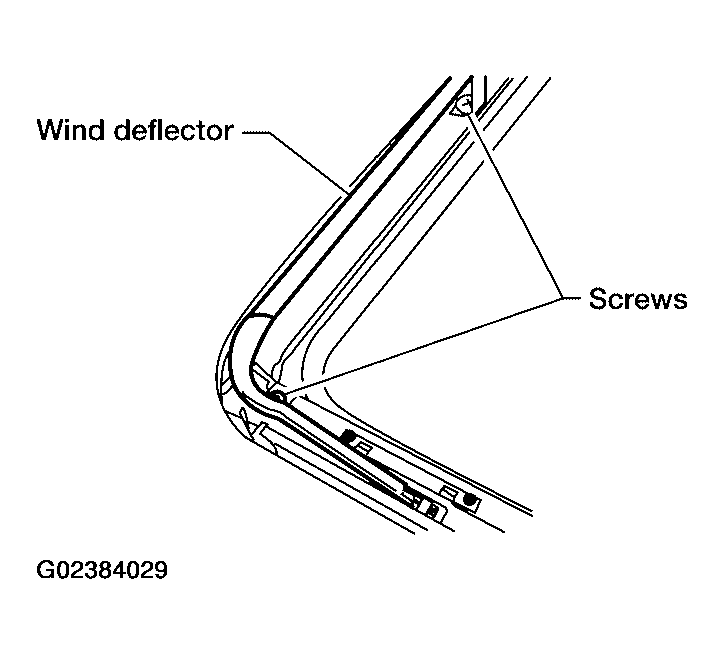

    Fig 1: Removing Screws From Left, Center, And Right Side Wind Deflector Holders
    G02384029Courtesy of NISSAN MOTOR CO., U.S.A.
