Sunroof Motor: Installation
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before installing the sunroof motor assembly, be sure to place the link and wire assembly in the symmetrical and fully closed position.

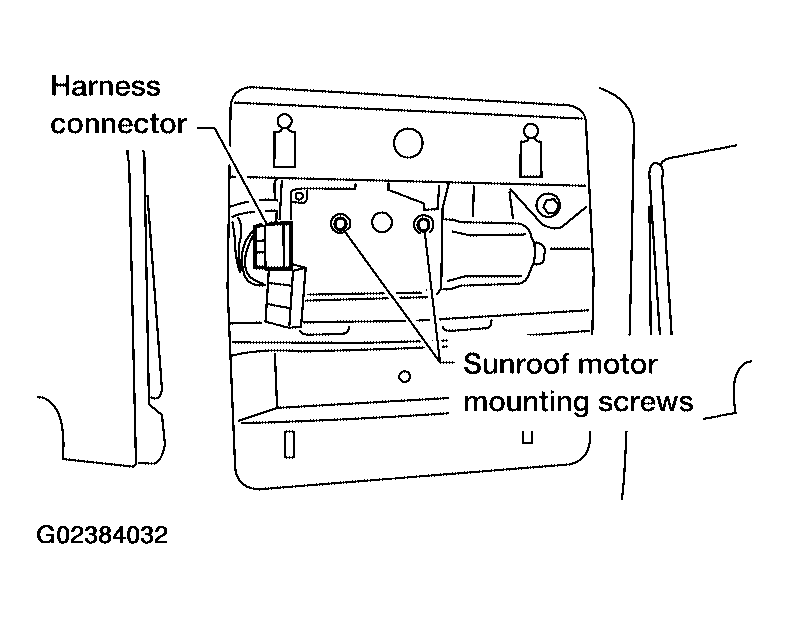

- Move the sunroof motor assembly laterally little by little so that the gear is completely engaged into the wire on the sunroof unit and the mounting surface becomes parallel. Then secure the motor with bolts.
- Connect the wire harness connector to the sunroof motor assembly.
- Install the roof console assembly. Refer to "HEADLINING ".
- Reset the sunroof motor memory. Refer to "MEMORY RESET PROCEDURE ".
