Glass Lid: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open sunshade.
  2. Ensure glass lid is closed.
  3. Remove side cover LH and RH.
  4. Remove the screws securing glass lid to the sunroof frame assembly.
  5. Remove the glass lid assembly.

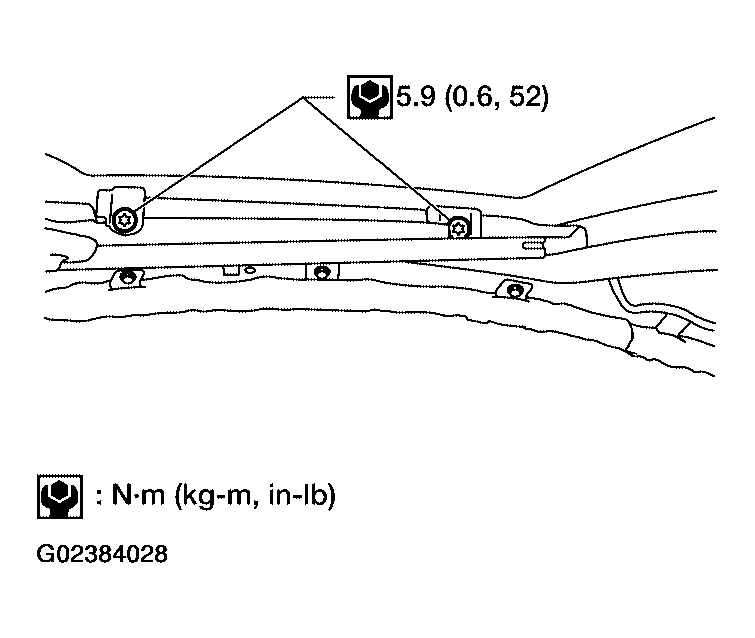

    Fig 1: Glass Lid Screws With Torque Specifications
    G02384028Courtesy of NISSAN MOTOR CO., U.S.A.
